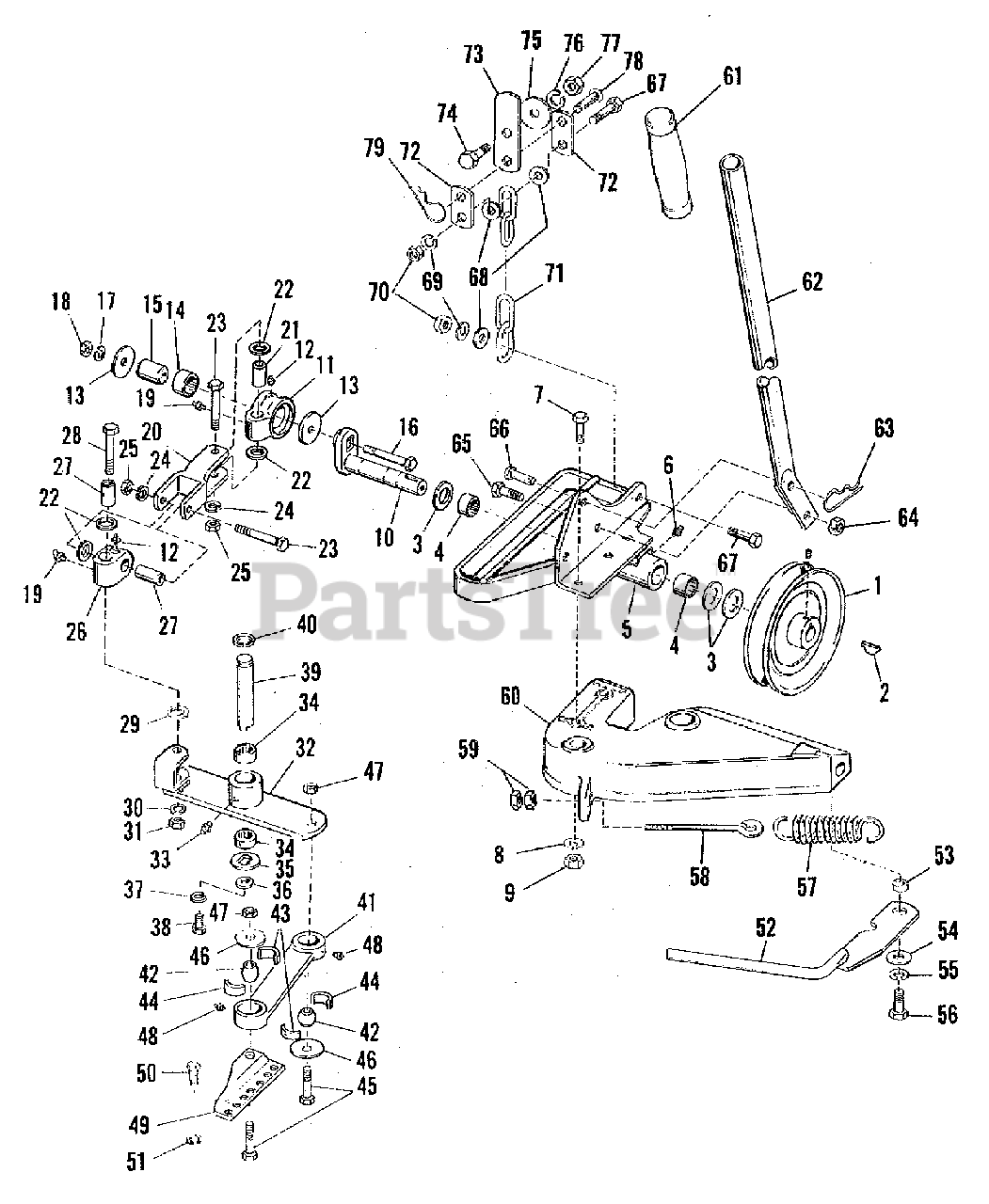

990210 - Simplicity 46" Sickle Bar Drive Group (3364I02) Parts Diagram

46" Sickle Bar

Drive Group (3364I02) Parts Diagram

  • Title

1

Simplicity 101023

DRIVE PULLEY

$

$

Not available

2

Simplicity 2725504

KEY, Hi-Pro

$

$

Not available

3

Simplicity 2101022

WASHER

$

$

Not available

4

Simplicity 2154258SM

BEARING, Needle

$26.99

$

In Stock, only 2 left!

0

5

Simplicity 101016

BRACKET ASSEMBLY, Lift

$

$

Not available

6

Simplicity 2727006

FITTING, Grease

$

$

Not available

7

Simplicity 715041

CAPSCREW, Hex Head, 7/16-14 x 1-1/4" Lg.

$242.99

$

Usually ships in 2-12 days

0

8

Simplicity 2720006

LOCKWASHER, 7/16"

$

$

Not available

9

Simplicity 717015

NUT, Hex Full, 7/16-14

$

$

Not available

10

Simplicity 101006

SHAFT, Crank

$

$

Not available

11

Simplicity 101024

HOUSING, Pitman Bearing

$

$

Not available

12

Simplicity 2727002

FITTING, Grease

$

$

Not available

13

Simplicity 1924356SM

WASHER
(Superseded to 703591)

$5.49

$

In Stock, Qty 15

0

14

Simplicity 2157678SM

BEARING, Needle

$34.99

$

Usually ships in 2-12 days

0

15

Simplicity 8161197

RACE, Inner, Pitman Bearing

$

$

Not available

16

Simplicity 2715036

CAPSCREW, Hex Head, 3/8"-16 x 2-1/4" Lg.

$

$

Not available

17

Simplicity 2720002

LOCKWASHER, 3/8"

$

$

Not available

18

Simplicity 2717003

NUT, Hex, Full, 3/8"-16

$

$

Not available

19

Simplicity 2727004

FITTING, Grease, 90 Degrees

$

$

Not available

20

Simplicity 101088

CLEVIS ASSEMBLY, Pitman

$

$

Not available

21

Snapper 1729273SM

BEARING, Pivot Block

$76.99

$

In Stock, only 1 left!

0

22

Simplicity 2101025SM

WASHER

$4.49

$

Usually ships in 2-12 days

0

23

Simplicity 2715036

CAPSCREW, Hex Head, 3/8"-16 x 2-1/4" Lg.

$

$

Not available

24

Simplicity 2720002

LOCKWASHER, 3/8"

$

$

Not available

25

Simplicity 2717003

NUT, Hex, Full, 3/8"-16

$

$

Not available

26

Simplicity 8161052

BLOCK, Pivot

$

$

Not available

27

Snapper 1729273SM

BEARING

$76.99

$

In Stock, only 1 left!

0

28

Simplicity 2715043

CAPSCREW, Hex Head, 3/8"-16 x 2-1/2" Lg.

$

$

Not available

29

Simplicity 2719001

WASHER, Plain, 3/8"

$

$

Not available

30

Simplicity 2720002

LOCKWASHER, 3/8"

$

$

Not available

31

Simplicity 2717003

NUT, Hex, Full, 3/8"-16

$

$

Not available

32

Simplicity 101095

ROCKER ARM ASSEMBLY

$

$

Not available

33

Simplicity 2727002

FITTING, Grease

$

$

Not available

34

Simplicity 2154258SM

BEARING, Needle

$26.99

$

In Stock, only 2 left!

0

35

Simplicity 101035

WASHER

$

$

Not available

36

Simplicity 2719001

WASHER, Plain, 3/8"

$

$

Not available

37

Simplicity 2720002

LOCKWASHER, 3/8"

$

$

Not available

38

Simplicity 2705004

CAPSCREW, Hex Head, 3/8"-16 x 3/4" Lg.

$

$

Not available

39

Simplicity 101030

SHAFT, Rocker Arm

$

$

Not available

40

Simplicity 2154264SM

RING, Retaining

$5.99

$

In Stock, only 2 left!

0

41

Simplicity 101037

LINK ASSEMBLY

$

$

Not available

42

Simplicity 101040

BALL, Link

$

$

Not available

43

Simplicity 101041

BUSHING, Ball, Half

$

$

Not available

44

Simplicity 2101042SM

BUSHING, Ball, Half

$

$

Not available

45

Simplicity 2121184

BOLT, Hex, Head

$

$

Not available

46

Simplicity 1924356SM

WASHER
(Superseded to 703591)

$5.49

$

In Stock, Qty 15

0

47

Simplicity 2717515

NUT, Hex, Full, Lock, 3/8"-24

$

$

Not available

48

Simplicity 2727002

FITTING, Grease

$

$

Not available

49

Simplicity 101074

HEAD, Sickle

$

$

Not available

50

Simplicity 706016

CAPSCREW, Hex Head, 5/16-24 x 5/8" Lg.

$2061.99

$

Usually ships in 2-12 days

0

51

Simplicity 2720001

WASHER, Lock, 5/16"

$

$

Not available

52

Simplicity 101050

LATCH ASSEMBLY

$

$

Not available

53

Simplicity 101053

SPACER, Latch

$

$

Not available

54

Simplicity 2719003

WASHER, Plain

$

$

Not available

55

Simplicity 2720006

LOCKWASHER, 7/16"

$

$

Not available

56

Simplicity 2705042

CAPSCREW, Hex Head, 7/16"-14 x 1-1/4" Lg.

$

$

Not available

57

Simplicity 101064

SPRING

$

$

Not available

58

Simplicity 101065

EYE BOLT

$

$

Not available

59

Simplicity 2717001

NUT, Hex, Full, 5/16-18

$

$

Not available

60

Simplicity 101029

HINGE

$

$

Not available

61

Simplicity 155038

GRIP, Handle

$

$

Not available

62

Simplicity 101061

HANDLE ASSEMBLY

$

$

Not available

63

Simplicity 1918196SM

CLIP, Spring
(Superseded to 5025210YP)

$3.99

$

In Stock, only 2 left!

0

64

Simplicity 2717510

NUT, Hex, Full, Lock, 3/8"-16

$

$

Not available

65

Simplicity 2705005

CAPSCREW, Hex Head, 3/8"-16 x 1" Lg.

$

$

Not available

66

Simplicity 1729281SM

PIN

$8.49

$

In Stock, only 1 left!

0

67

Simplicity 2705005

CAPSCREW, Hex, Head, 3/8"-16 x 1" Lg.

$

$

Not available

68

Simplicity 2719001

WASHER, Plain, 3/8"

$

$

Not available

69

Simplicity 2720002

LOCKWASHER, 3/8"

$

$

Not available

70

Simplicity 2717003

NUT, Hex, Full, 3/8"-16

$

$

Not available

71

Simplicity 101084

CHAIN, Lift

$

$

Not available

72

Simplicity 108199

LINK, Mower Lift

$

$

Not available

73

Simplicity 101083

SUPPORT, Chain

$

$

Not available

74

Simplicity 2705005

CAPSCREW, Hex Head, 3/8"-16 x 1" Lg.

$

$

Not available

75

Simplicity 1924356SM

WASHER
(Superseded to 703591)

$5.49

$

In Stock, Qty 15

0

76

Simplicity 2720002

LOCKWASHER, 3/8"

$

$

Not available

77

Simplicity 2717003

NUT, Hex, Full, 3/8"-16

$

$

Not available

78

Simplicity 1708298SM

PIN

$

$

Not available

79

Simplicity 1918196SM

CLIP, Spring
(Superseded to 5025210YP)

$3.99

$

In Stock, only 2 left!

0
