990248 - Simplicity 30" Snow Plow & Grader Blade 30" Snow Plow & Grader Blade Parts Diagram

30" Snow Plow & Grader Blade

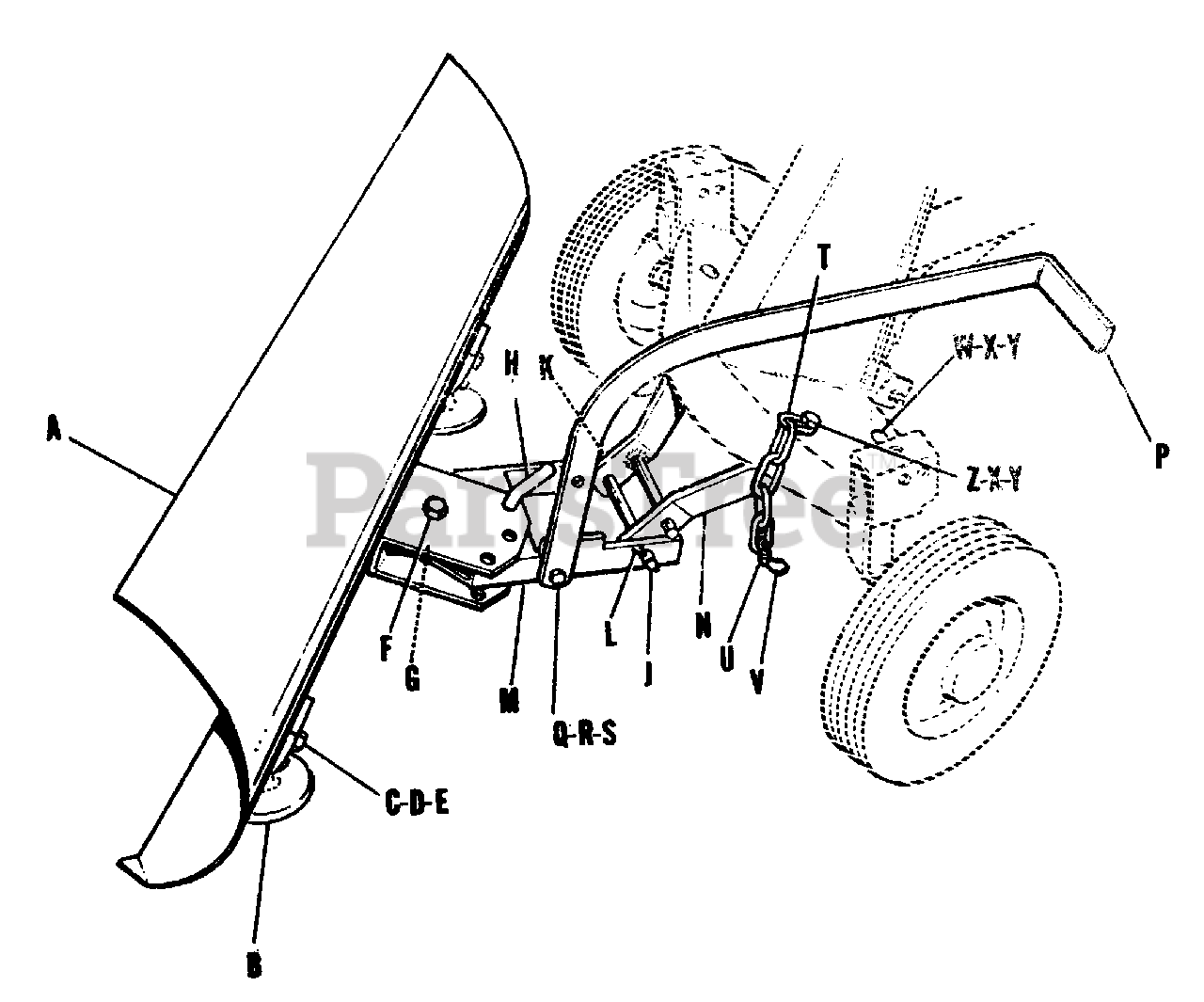

30" Snow Plow & Grader Blade Parts Diagram

  • Title

A

Simplicity 107018

Blade Assembly, 30"

$

$

Not available

B

Simplicity 2107024SM

Shoe Assembly

$

$

Not available

C

Simplicity 2703003

Carriage Bolt, 3/8-16 x 1

$

$

Not available

D

Simplicity 2720002

LockWasher, 3/8"

$

$

Not available

E

Simplicity 2717003

Hex Nut, Full, 3/8-16

$

$

Not available

F

Simplicity 107063

Pivot Pin (Vertical)

$

$

Not available

G

Simplicity 722014

Cotter Pln, 5/32" x 1"

$

$

Not available

H

Simplicity 1678549SM

Pivot Pin

$13.99

$

Usually ships in 2-12 days

0

J

Simplicity 107020

Pivot Pin, (Horizontal)

$

$

Not available

K

Simplicity 1918196SM

Spring Clip
(Superseded to 5025210YP)

$3.99

$

In Stock, only 1 left!

0

L

Simplicity 722015

Cotter Pin, 5/32" x 1"

$

$

Not available

M

Simplicity 107012

Push Bar Assembly

$

$

Not available

N

Simplicity 107064

Blade Hitch Assembly

$

$

Not available

P

Simplicity 107068

Foot Lever Assembly

$

$

Not available

Q

Simplicity 2705016

Capscrew, Hex, 3/8-16 x 1 1/4

$

$

Not available

R

Simplicity 2720002

LockWasher, 3/8"

$

$

Not available

S

Simplicity 2717003

Lock Pin

$

$

Not available

T

Simplicity 2107031SM

Foot Lever Chain
(Superseded to 2107031ASM)

$7.49

$

In Stock, only 2 left!

0

U

Simplicity 1708298SM

Lock Pin

$

$

Not available

V

Simplicity 1918196SM

Spring Clip
(Superseded to 5025210YP)

$3.99

$

In Stock, only 1 left!

0

W

Simplicity 2702002

Carriage Bolt, 3/8-16 x 1"

$

$

Not available

X

Simplicity 2720002

LockWasher, 3/8"

$

$

Not available

Y

Simplicity 2717003

Hex Nut, Full, 3/8-16

$

$

Not available

Z

Simplicity 2705016

Capscrew, Hex, 3/8-16 x 1 1/4

$

$

Not available
