990416 - Simplicity Lift Lever Kit LIFT LEVER KIT Parts Diagram

Lift Lever Kit

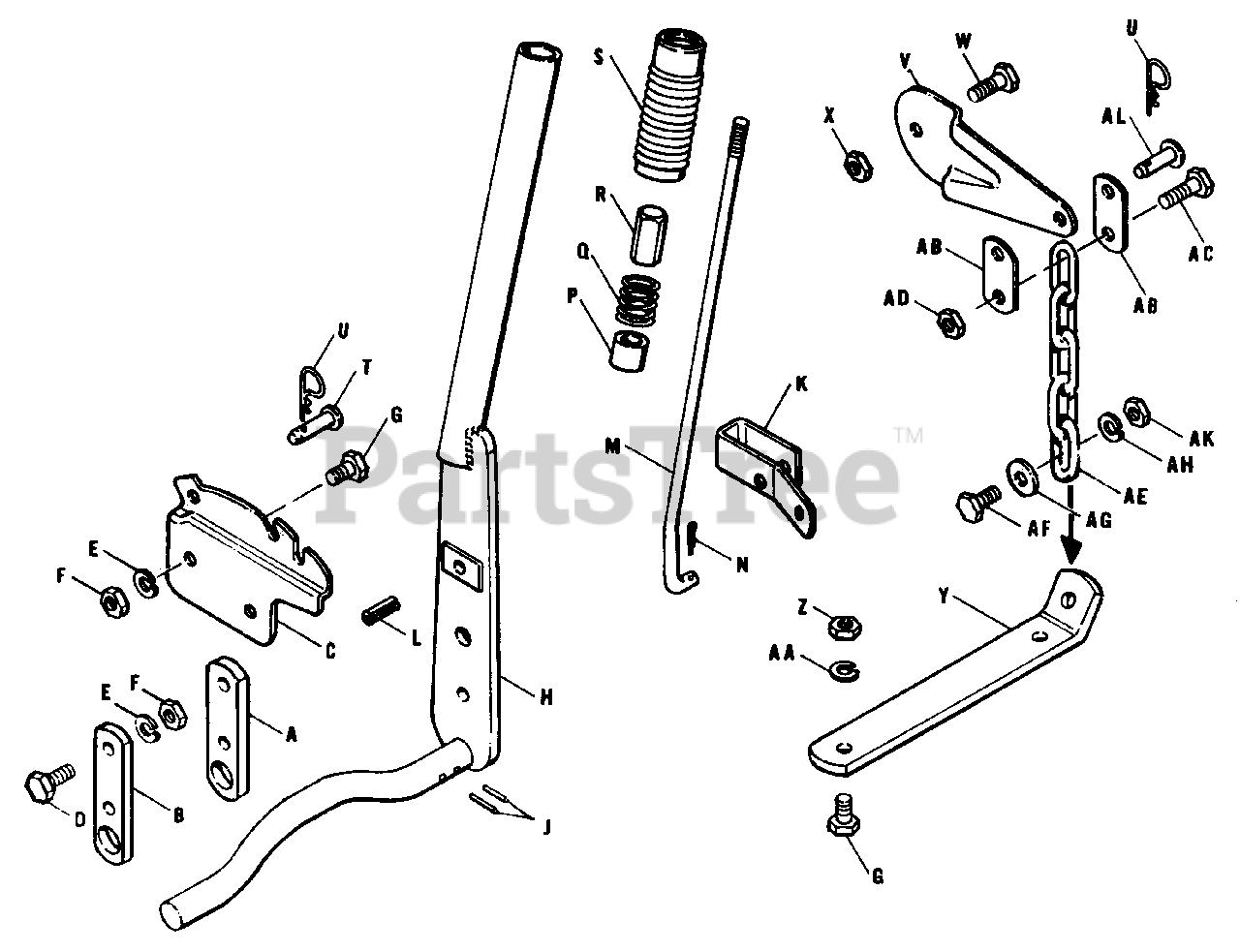

LIFT LEVER KIT Parts Diagram

  • Title

A

Simplicity 162069

R.H. Bearing Bar

$

$

Not available

B

Simplicity 162070

L.H. Bearing Bar

$

$

Not available

C

Simplicity 162068

Lift Lever Quadrant

$

$

Not available

D

Simplicity 2705005

Hex Cap Screw 3/8-16 x 1"

$

$

Not available

E

Simplicity 2720002

Lock Washer 3/8"

$

$

Not available

F

Simplicity 2717003

Hex Nut, Full 3/8-16

$

$

Not available

G

Simplicity 2705004

Hex Cap Screw 3/8"-16 x 3/4"

$

$

Not available

H

Simplicity 162066

Lift Lever Assembly

$

$

Not available

J

Simplicity 2723011

Roll Pin 3/16" diam. x 1"

$

$

Not available

K

Simplicity 156222

Lift Lever Latch

$

$

Not available

L

Simplicity 2723007

Roll Pin 3/8" diam. x 1"

$

$

Not available

M

Simplicity 156158

Lift Lever Latch Rod

$

$

Not available

N

Simplicity 2722001

Cotter Pin 3/32" diam. x 3/4" lg.

$

$

Not available

P

Simplicity 154226

Spacer

$

$

Not available

Q

Simplicity 2152006SM

Spring

$8.49

$

Usually ships in 2-12 days

0

R

Simplicity 2154227SM

Thumb Button

$

$

Not available

S

Simplicity 2156209

Handle Grip
(Superseded to 1713995SM)

$12.99

$

In Stock, only 1 left!

0

T

Simplicity 1708298SM

Pin

$

$

Not available

U

Simplicity 1918196SM

Spring Clip
(Superseded to 5025210YP)

$3.99

$

In Stock, only 1 left!

0

V

Simplicity 108385

Mower Lift Lever

$

$

Not available

W

Simplicity 2705031

Hex Cap Screw 3/8"-16 x 7/8"

$

$

Not available

X

Simplicity 2717510

Hex Nut, Full Lock, 3/8"-16

$

$

Not available

Y

Simplicity 108375

Lift Bar (Use On No. 442 Mower Only)

$

$

Not available

Z

Simplicity 2717003

Hex Nut, Full 3/8"-16

$

$

Not available

AA

Simplicity 2720002

Lock Washer 3/8"

$

$

Not available

AB

Simplicity 108199

Mower Lift Link

$

$

Not available

AC

Simplicity 2705005

Hex Cap Screw 3/8"-16 x 1"

$

$

Not available

AD

Simplicity 2717510

Hex Nut, Full Lock, 3/8"-16

$

$

Not available

AE

Simplicity 2107031SM

Chain
(Superseded to 2107031ASM)

$7.49

$

In Stock, only 2 left!

0

AF

Simplicity 2705005

Hex Cap Screw 3/8"-16 x 1"

$

$

Not available

AG

Simplicity 2719001

Plain Washer 3/8"

$

$

Not available

AH

Simplicity 2720002

Lock Washer 3/8"

$

$

Not available

AK

Simplicity 2717003

Hex Nut, Full 3/8"-16

$

$

Not available

AL

Simplicity 1708298SM

Lock Pin

$

$

Not available
