990504 - Simplicity PTO, 540 RPM 540 R.P.M. POWER TAKE OFF Parts Diagram

PTO, 540 RPM

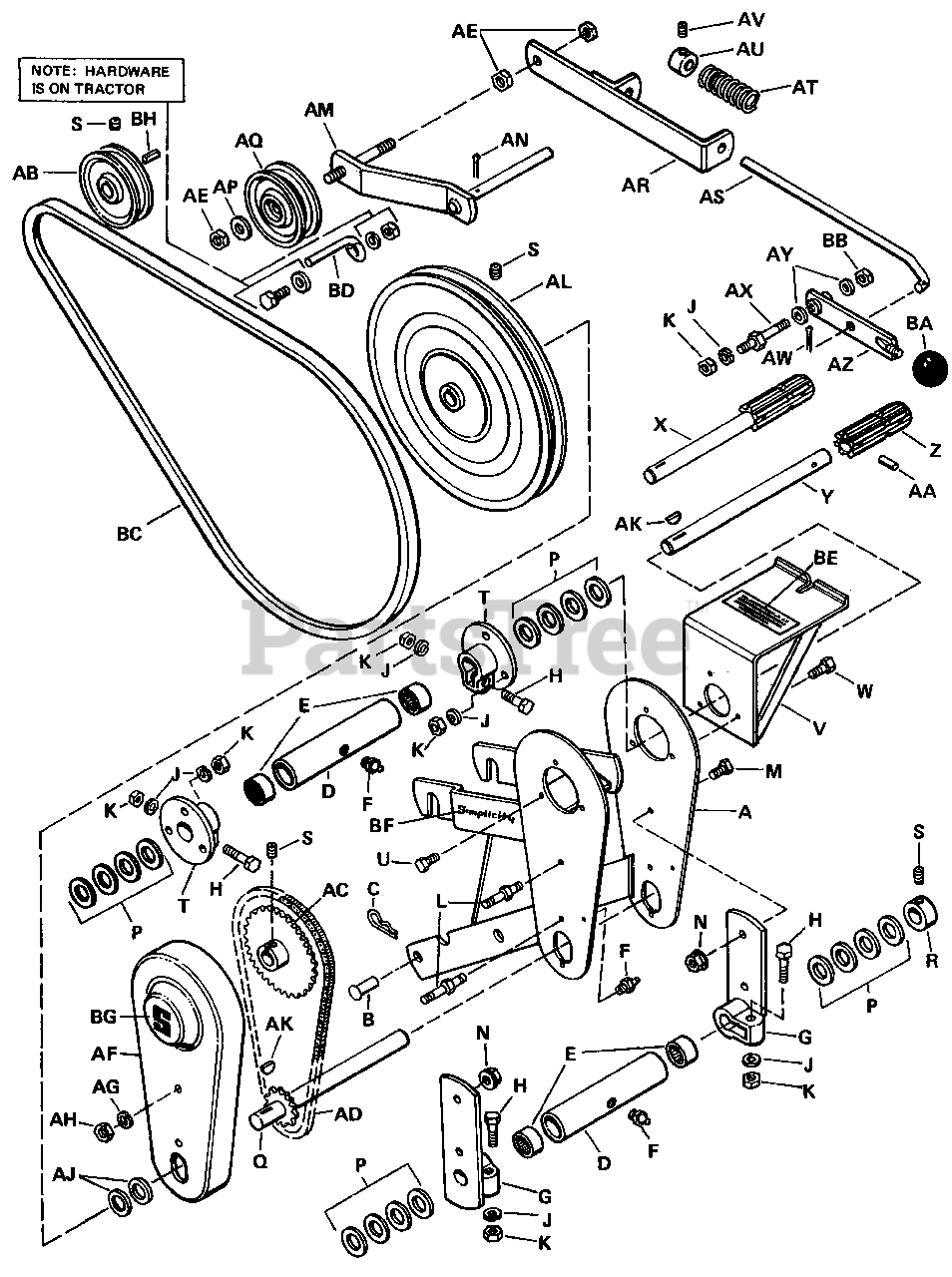

540 R.P.M. POWER TAKE OFF Parts Diagram

  • Title

A

Simplicity 167001

Frame Assembly

$

$

Not available

B

Simplicity 2155037SM

Round Head Pin

$12.99

$

In Stock, only 1 left!

0

C

Simplicity 2106788

Spring Clip

$

$

Not available

D

Simplicity 167006

Housing Bearing

$

$

Not available

E

Simplicity 2154258SM

Needle Bearing

$26.99

$

In Stock, only 2 left!

0

F

Simplicity 2727002

Grease Fitting

$

$

Not available

G

Simplicity 106479

Clamp Support Assembly

$

$

Not available

H

Simplicity 2705018

Hex. Cap Screw 5/16"-18 N.C. x 1-1/2"

$

$

Not available

J

Simplicity 2720001

Lock Washer 5/16"

$

$

Not available

K

Simplicity 2717001

Full Hex. Nut 5/16"-18 N.C.

$

$

Not available

L

Simplicity 106771

Stud

$

$

Not available

M

Simplicity 2705004

Hex. Hd. Cap Screw 3/8"-16 N.C. x 3/4"

$

$

Not available

N

Simplicity 2718035

Flange Whiz Lock 3/8"-16 N.C.

$

$

Not available

P

Simplicity 1729259SM

Washer

$5.99

$

In Stock, Qty 11

0

Q

Simplicity 167007

Shaft Assembly

$

$

Not available

R

Simplicity 1729254SM

Set Collar
(Superseded to 703150)

$8.99

$

Usually ships in 2-12 days

0

S

Simplicity 2713503

Set Screw 5/16"-18 N.C.x 5/16" lg.

$

$

Not available

T

Simplicity 167009

Flange Assembly

$

$

Not available

U

Simplicity 2705012

Hex. Cap Screw 5/16"-18 N.C. x 5/8"

$

$

Not available

V

Simplicity 167011

P.T.O. Guard Assembly

$

$

Not available

W

Simplicity 2705017

Hex. Cap Screw 5/16"-18 N.C. x 3/4"

$

$

Not available

X

Simplicity 167014

Shaft Assembly

$

$

Not available

Y

Simplicity 167015

P.T.O. Shaft

$

$

Not available

Z

Simplicity 167016

Spline Shaft

$

$

Not available

AA

Simplicity 167029

Dowel Pin

$

$

Not available

AB

Simplicity 2164202SM

Pulley

$61.99

$

Usually ships in 2-12 days

0

AC

Simplicity 167017

Sprocket

$

$

Not available

AD

Simplicity 106058

Chain w/Connecting Link

$

$

Not available

AE

Simplicity 2717510

Full Hex. Lock Nut 3/8"-16 N.C.

$

$

Not available

AF

Simplicity 167018

Chain Guard

$

$

Not available

AG

Simplicity 2720002

Lock Washer 3/8"

$

$

Not available

AH

Simplicity 2717003

Full Hex. Nut 3/8"-16 N.C.

$

$

Not available

AJ

Simplicity 167019

Washer

$

$

Not available

AK

Simplicity 2725003

Woodruff Key 3/16" x 3/4" dia.

$

$

Not available

AL

Simplicity 167020

Pulley

$

$

Not available

AM

Simplicity 167021

Pivot Assembly

$

$

Not available

AN

Simplicity 2722006

Cotter Pin w/ext. Prong 1/8" x 1" lg.

$

$

Not available

AP

Simplicity 2719001

Plain Washer 3/8" Std.

$

$

Not available

AQ

Simplicity 2108386SM

Idler Pulley

$

$

Not available

AR

Simplicity 1729265SM

Idler Clutch Rod Guide Ass'y.

$41.99

$

Usually ships in 2-12 days

0

AS

Simplicity 167025

Clutch Rod

$

$

Not available

AT

Simplicity 162065

Spring

$

$

Not available

AU

Simplicity 1729276SM

Set Collar

$

$

Not available

AV

Simplicity 2713001

Set Screw 1/4"-20 N.C. x 3/8" lg.

$

$

Not available

AW

Simplicity 2722016

Cotter Pin 3/32" x 5/8" lg.

$

$

Not available

AX

Simplicity 162063

Stud

$

$

Not available

AY

Simplicity 2719002

Plain Washer 5/16"

$

$

Not available

AZ

Simplicity 167026

Handle Assembly

$

$

Not available

BA

Simplicity 1729255SM

Knob Ball

$12.99

$

In Stock, only 1 left!

0

BB

Simplicity 2717511

Full Hex. Lock Nut 5/16"-18 N.C.

$

$

Not available

BC

Simplicity 2123073

"V" Belt

$

$

Not available

BD

Simplicity 2167032SM

Belt Stop

$31.99

$

Usually ships in 2-12 days

0

BE

Simplicity 167030

Decal-Warning

$

$

Not available

BF

Simplicity 155061

Film-Simplicity

$

$

Not available

BG

Simplicity 158492

Film-Small Oval

$

$

Not available

BH

Simplicity 2805850SM

Key

$2.49

$

Usually ships in 2-12 days

0
