990740 - Simplicity 48" Mower Deck MOWER UNDERSIDE Parts Diagram

48" Mower Deck

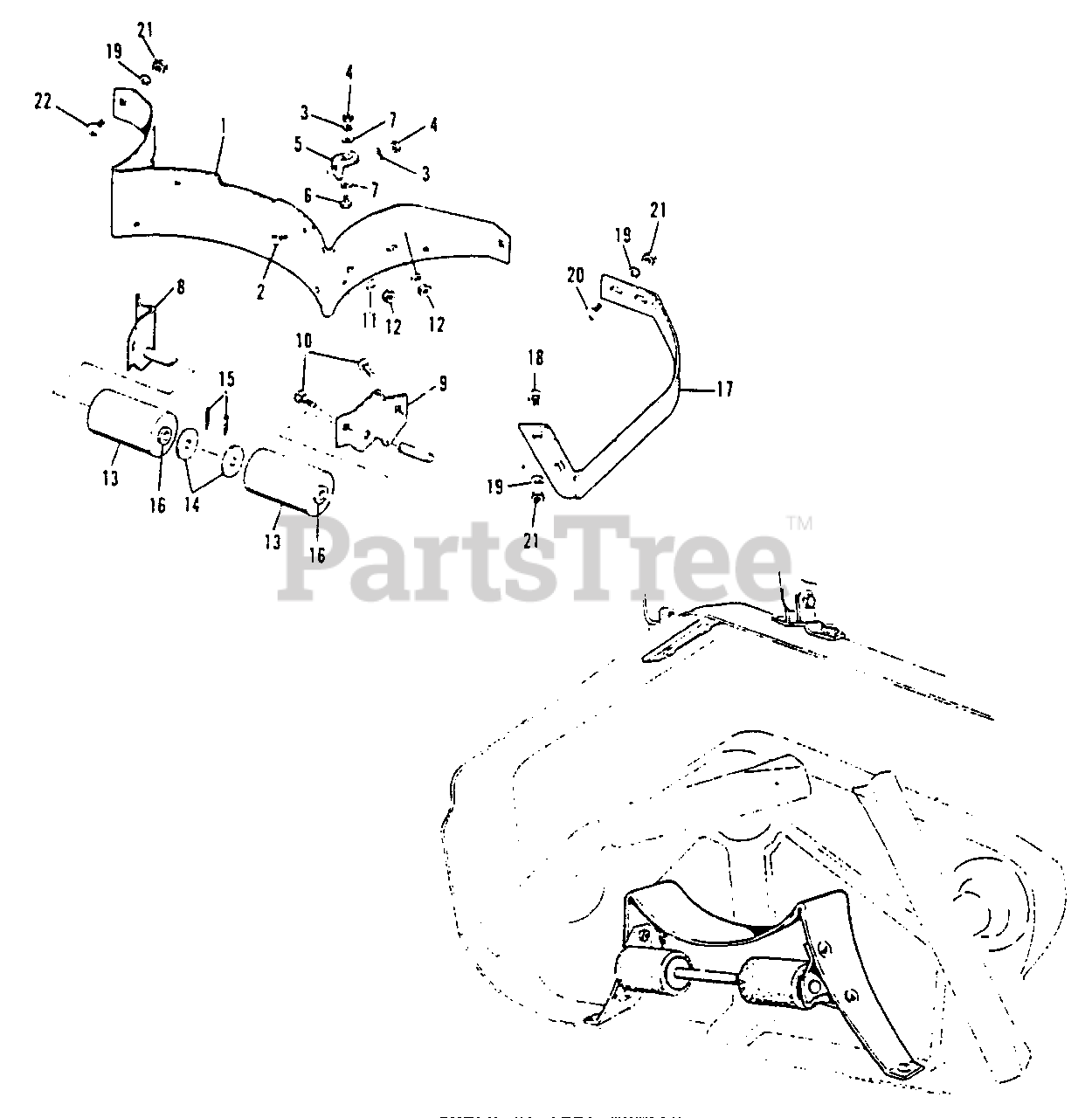

MOWER UNDERSIDE Parts Diagram

  • Title

1

Simplicity 2108453

Baffle

$

$

Not available

2

Simplicity 2714012

Self Tap Hex. Screw, 1/4"-20 x 7/8"

$

$

Not available

3

Simplicity 2720003

Lock Washer, 1/4"

$

$

Not available

4

Simplicity 2717005

Full Hex. Nut, 1/4"-20

$

$

Not available

5

Simplicity 2108186SM

Baffle Clip

$12.99

$

In Stock, only 1 left!

0

6

Simplicity 2715018

Hex. Cap Screw. 1/4"-20 x 5/8"

$

$

Not available

7

Simplicity 2719006

Plain Washer, 1/4"

$

$

Not available

8

Simplicity 2108454ASM

Bracket & Shaft Assembly

$79.99

$

In Stock, only 3 left!

0

9

Simplicity 2108224ASM

L.H. Roller Bracket

$59.99

$

In Stock, only 3 left!

0

10

Simplicity 2702015

Carriage Bolt, 5/16"-18 x 3/4"

$

$

Not available

11

Simplicity 2720001

Lock Washer, 5/16"

$

$

Not available

12

Simplicity 2717001

Full Nex. Nut, 5/16"-18

$

$

Not available

13

Simplicity 1668513SM

Roller Assembly W/Bushing

$10.99

$

In Stock, Qty 20+

0

14

Simplicity 2116001

Washer

$

$

Not available

15

Simplicity 2722011

Cotter Pin, 3/16" x 1"

$

$

Not available

16

Simplicity 2108419

Bushing

$

$

Not available

17

Simplicity 108452

Housing Assembly Guard

$

$

Not available

18

Simplicity 2702003

Carriage Bolt, 3/8"-16 x 3/4"

$

$

Not available

19

Simplicity 2720002

Lock Washer 3/8"

$

$

Not available

20

Simplicity 2702002

Carriage Bolt, 3/8"-16 x 1"

$

$

Not available

21

Simplicity 2717003

Full Hex. Nut, 3/8"-16

$

$

Not available

22

Simplicity 2703004

Carriage Bolt, 3/8"-16 x 3/4" lg.

$

$

Not available
