990741 - Simplicity Vacuum Collector Adapter Adapter Kit Group (3861I01) Parts Diagram

Vacuum Collector Adapter

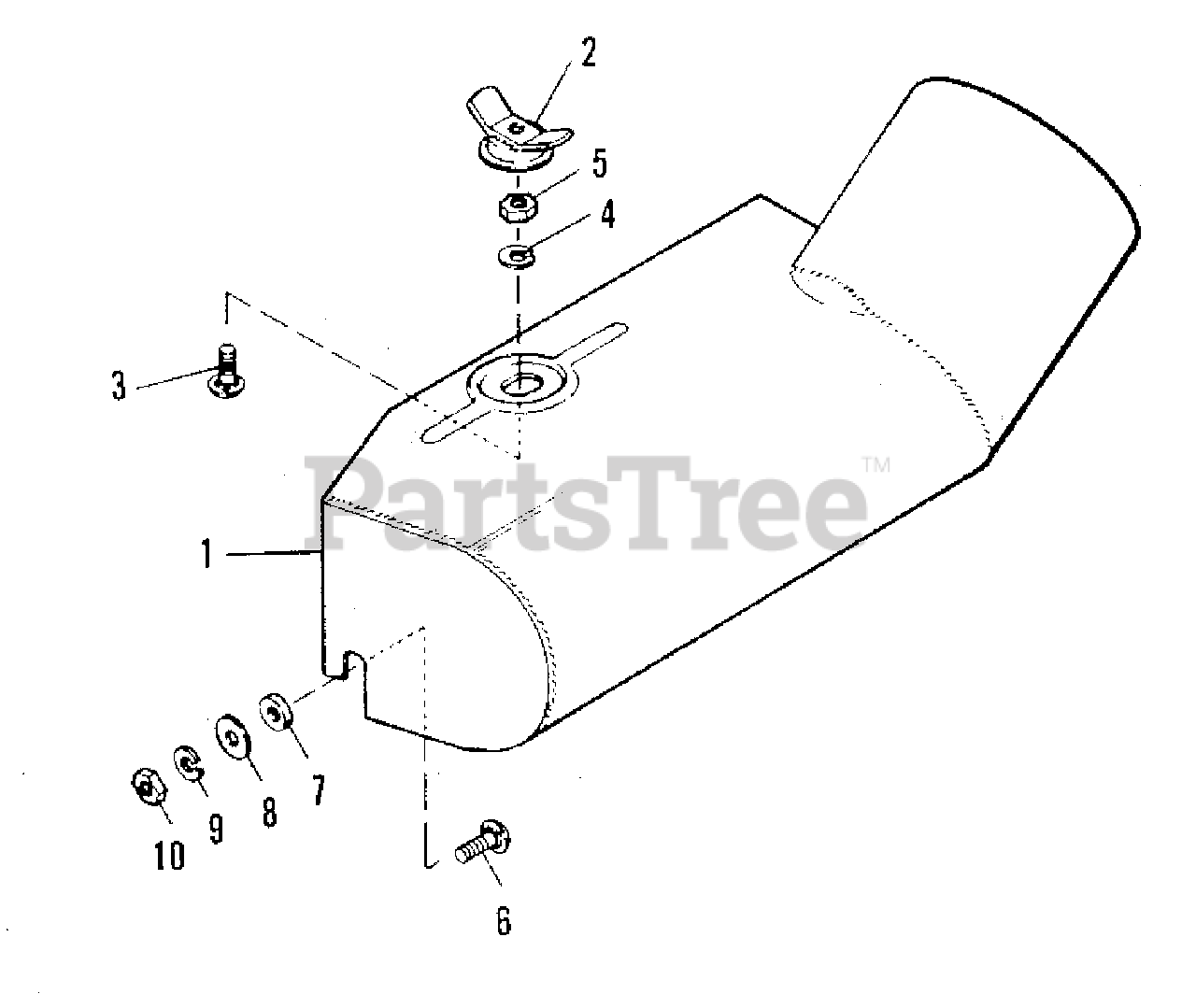

Adapter Kit Group (3861I01) Parts Diagram

  • Title

1

Simplicity 123112

ADAPTER ASSEMBLY

$

$

Not available

2

Simplicity 2123060

NUT ASSEMBLY

$

$

Not available

3

Simplicity 2703003

CARRIAGE BOLT, 3/8"-16 x 1"

$

$

Not available

4

Simplicity 2720002

LOCKWASHER, 3/8"

$

$

Not available

5

Simplicity 2717003

NUT, Hex Full, 3/8"-16

$

$

Not available

6

Simplicity 2703002

CARRIAGE BOLT, 3/8"-16 x 1-1/4"

$

$

Not available

7

Simplicity 2153081

SPACER

$

$

Not available

8

Simplicity 157169

WASHER

$

$

Not available

9

Simplicity 2720002

LOCKWASHER, 3/8"

$

$

Not available

10

Simplicity 2717003

NUT, Hex Full, 3/8"-16

$

$

Not available
