990906 - Simplicity Sno-Away 28" Snow Thrower, 8hp BODY and ROTOR GROUP Parts Diagram

Sno-Away 28" Snow Thrower, 8hp

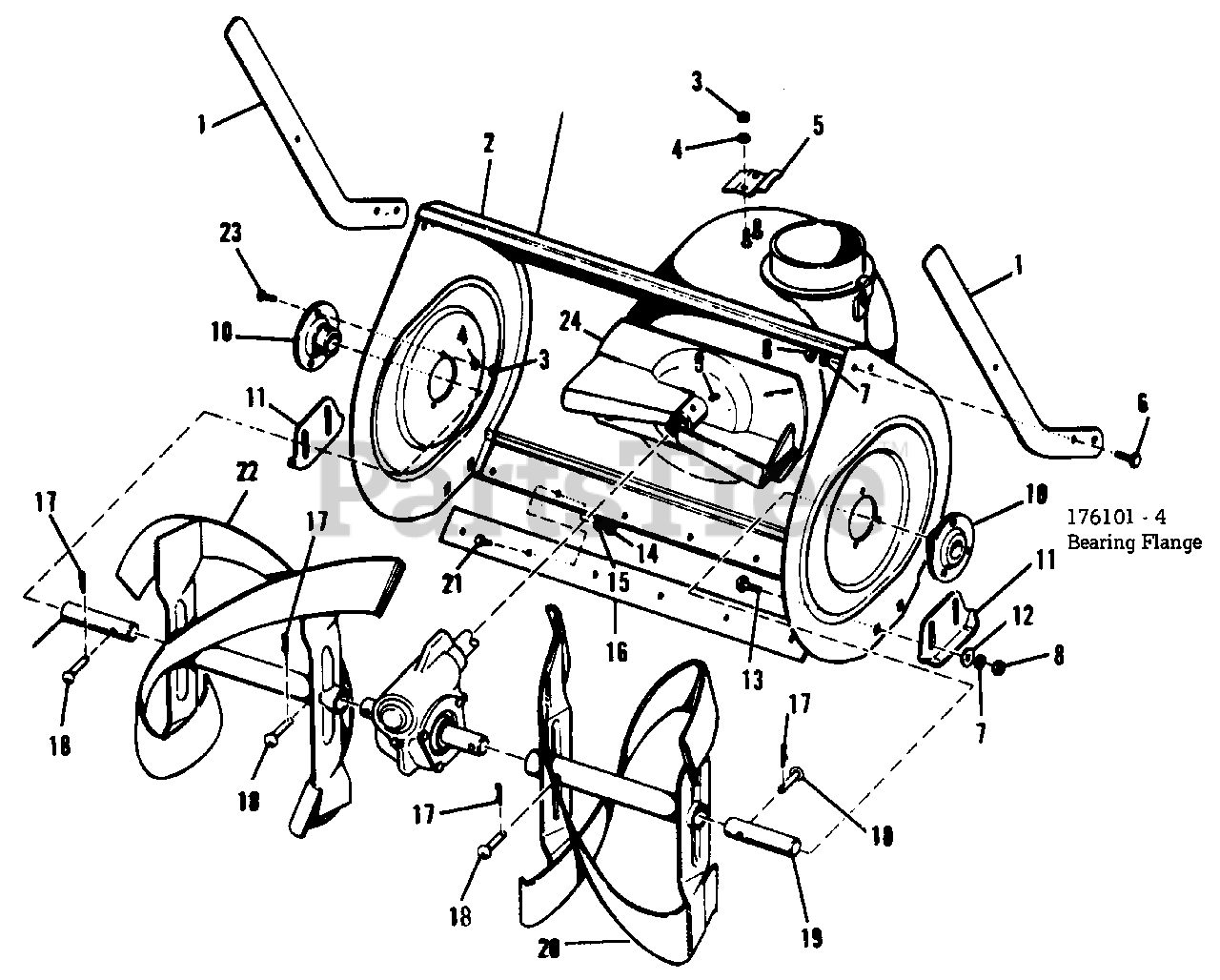

BODY and ROTOR GROUP Parts Diagram

  • Title

1

Simplicity 1610-42

CUTTER-drift, 3/16 x 1-1/2 x 18 3/8
(Superseded to 1715787CSM)

$37.99

$

Usually ships in 2-12 days

0

2

Simplicity 173375

BODY ASSEMBLY

$

$

Not available

2

Simplicity 1610-26

Includes: SLEEVE-(not shown)

$

$

Not available

3

Simplicity 2717001

NUT-hex, 5/16-18

$

$

Not available

4

Simplicity 2720001

WASHER-lock, 5/16

$

$

Not available

5

Simplicity 1611-16

CLIP-hold down

$

$

Not available

6

Simplicity 2705004

SCREW-hex cap, 3/8-16 x 3/4

$

$

Not available

7

Simplicity 2720002

WASHER-lock, 3/8

$

$

Not available

8

Simplicity 2717003

NUT-full hex, 3/8-16

$

$

Not available

9

Simplicity 2713002

SCREW-set, 5/16-18 x 3/8

$

$

Not available

10

Simplicity 2176100SM

BEARING ASSEMBLY

$24.99

$

In Stock, only 1 left!

0

11

Simplicity 2177434C

SKID

$

$

Not available

12

Simplicity 2719001

WASHER-flat, 3/8

$

$

Not available

13

Simplicity 2703004

BOLT-carriage, 3/8-16 x 3/4

$

$

Not available

14

Simplicity 2717005

NUT-full hex, 1/4-20

$

$

Not available

15

Simplicity 2720003

WASHER-lock, 1/4

$

$

Not available

16

Simplicity 173380

BLADE-scraper

$

$

Not available

17

Simplicity 2722006

PIN-cotter, 1/8 x 1

$

$

Not available

18

Simplicity 1180-53

PIN
(Superseded to 704241)

$9.99

$

Usually ships in 2-12 days

0

19

Simplicity 1610-60

AUGER-shaft

$

$

Not available

20

Simplicity 173383

AUGER ASSEMBLY- L.H.

$

$

Not available

21

Simplicity 2715018

SCREW-hex cap, 1/4-20 x 5/8

$

$

Not available

22

Simplicity 173384

AUGER ASSEMBLY-R.H.

$

$

Not available

23

Simplicity 2705017

SCREW-hex cap, 5/16-18 x 3/4

$

$

Not available

24

Simplicity 1610-11

IMPELLER ASSEMBLY

$

$

Not available
