990906 - Simplicity Sno-Away 28" Snow Thrower, 8hp ROTOR DRIVE GROUP Parts Diagram

Sno-Away 28" Snow Thrower, 8hp

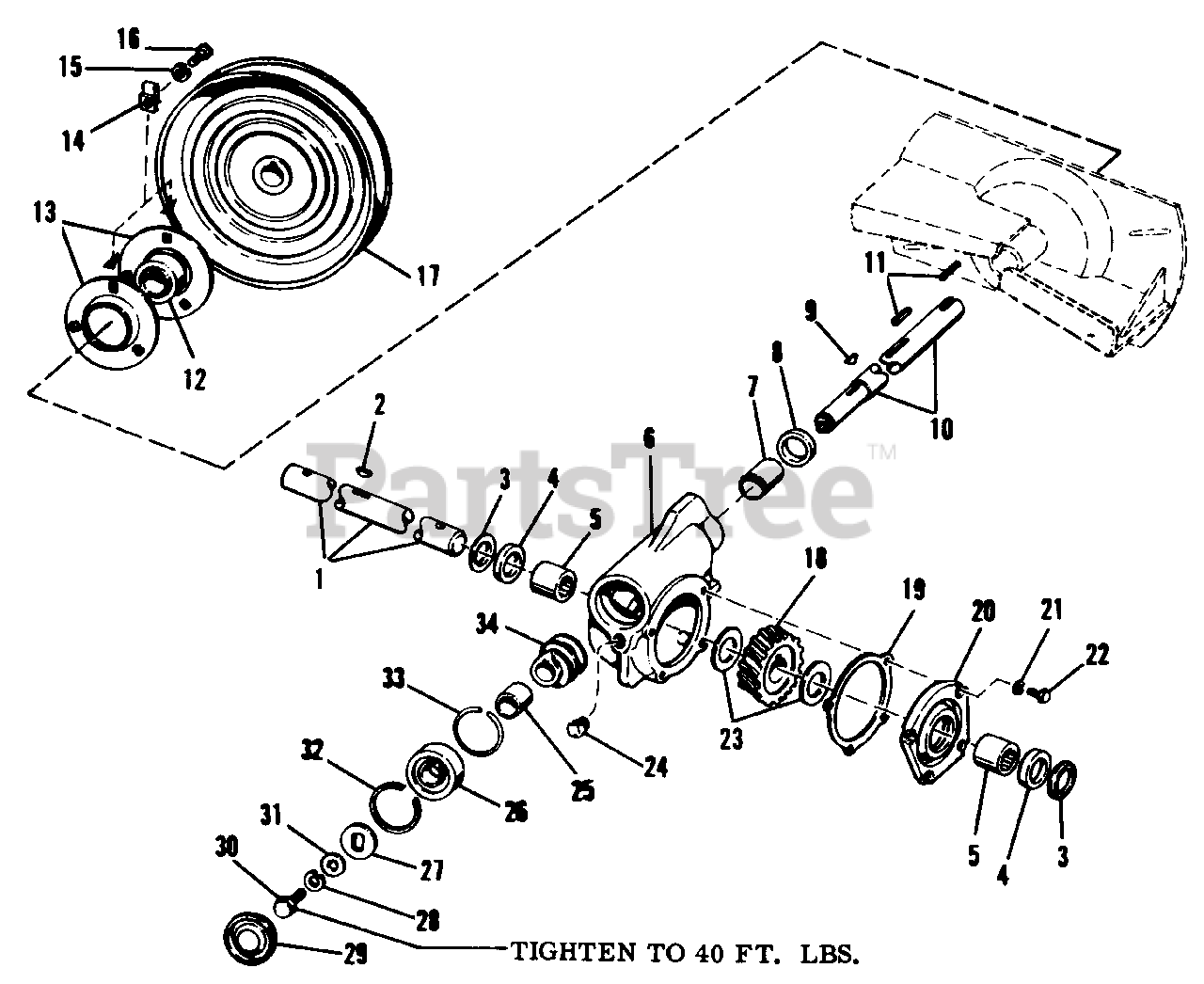

ROTOR DRIVE GROUP Parts Diagram

  • Title

1

Simplicity 1610-66

SHAFT-worm gear

$

$

Not available

2

Simplicity 2725005

KEY-woodruff

$

$

Not available

3

Simplicity 1180-82

WASHER
(Superseded to 2118082SM)

$2.99

$

Usually ships in 2-12 days

0

4

Simplicity 1181-18

SEAL-oil
(Superseded to 2118118SM)

$10.99

$

In Stock, only 4 left!

0

5

Simplicity 1180-20

BEARING-needle
(Superseded to 2118020SM)

$31.99

$

Usually ships in 2-12 days

0

6

Simplicity 1610-18

HOUSING-worm drive

$

$

Not available

7

Simplicity 1583-37

BUSHING
(Superseded to 1667099SM)

$26.99

$

Usually ships in 2-12 days

0

8

Simplicity 1181-17

SEAL-oil
(Superseded to 2118117SM)

$13.99

$

In Stock, only 2 left!

0

9

Simplicity 725502

KEY-3/16 x 7/8

$

$

Not available

10

Simplicity 1610-64

SHAFT-worm gear

$

$

Not available

11

Simplicity 80610-81

KEY

$

$

Not available

12

Simplicity 1610-68

BEARING-cartridge
(Superseded to 1685071SM)

$73.99

$

Usually ships in 2-12 days

0

13

Simplicity 1610-69

BEARING-flange
(Superseded to 2172278ASM)

$11.99

$

In Stock, only 2 left!

0

14

Simplicity 2718030

NUT-retainer

$

$

Not available

15

Simplicity 2720001

WASHER-lock, 5/16

$

$

Not available

16

Simplicity 2705017

SCREW-hex cap, 5/16

$

$

Not available

17

Simplicity 1610-70

PULLEY
(Superseded to 2161070SM)

$116.99

$

Usually ships in 2-12 days

0

18

Simplicity 1610-67

GEAR-worm
(Superseded to 1612141SM)

$

$

Not available

19

Simplicity 1180-24

GASKET
(Superseded to 2118024SM)

$12.99

$

In Stock, only 1 left!

0

20

Simplicity 1183-16

COVER

$

$

Not available

21

Simplicity 2720003

WASHER-lock, 1/4"

$

$

Not available

22

Simplicity 2715018

SCREW-hex, cap, 1/4-20x 5/8

$

$

Not available

23

Simplicity 1183-15

WASHER-thrust
(Superseded to 2118315SM)

$9.99

$

In Stock, Qty 7

0

24

Simplicity 2726003

PLUG-pipe, 3/8"

$

$

Not available

25

Simplicity 1180-60

SPACER

$

$

Not available

26

Simplicity 1180-11

BEARING-ball
(Superseded to 2118011SM)

$

$

Not available

27

Simplicity 1181-78

WASHER

$

$

Not available

28

Simplicity 2720002

WASHER-lock, 3/8"

$

$

Not available

29

Simplicity 1181-79

CUP

$

$

Not available

30

Simplicity 2715004

SCREW-hex cap, 3/8-24 x 1

$

$

Not available

31

Simplicity 2719002

WASHER-flat, 5/16

$

$

Not available

32

Simplicity 1180-61

RING- retaining

$

$

Not available

33

Simplicity 1180-94

RING-snap

$

$

Not available

34

Simplicity 1610-65

WORM

$

$

Not available
