990906 - Simplicity Sno-Away 28" Snow Thrower, 8hp TRANSMISSION Parts Diagram

Sno-Away 28" Snow Thrower, 8hp

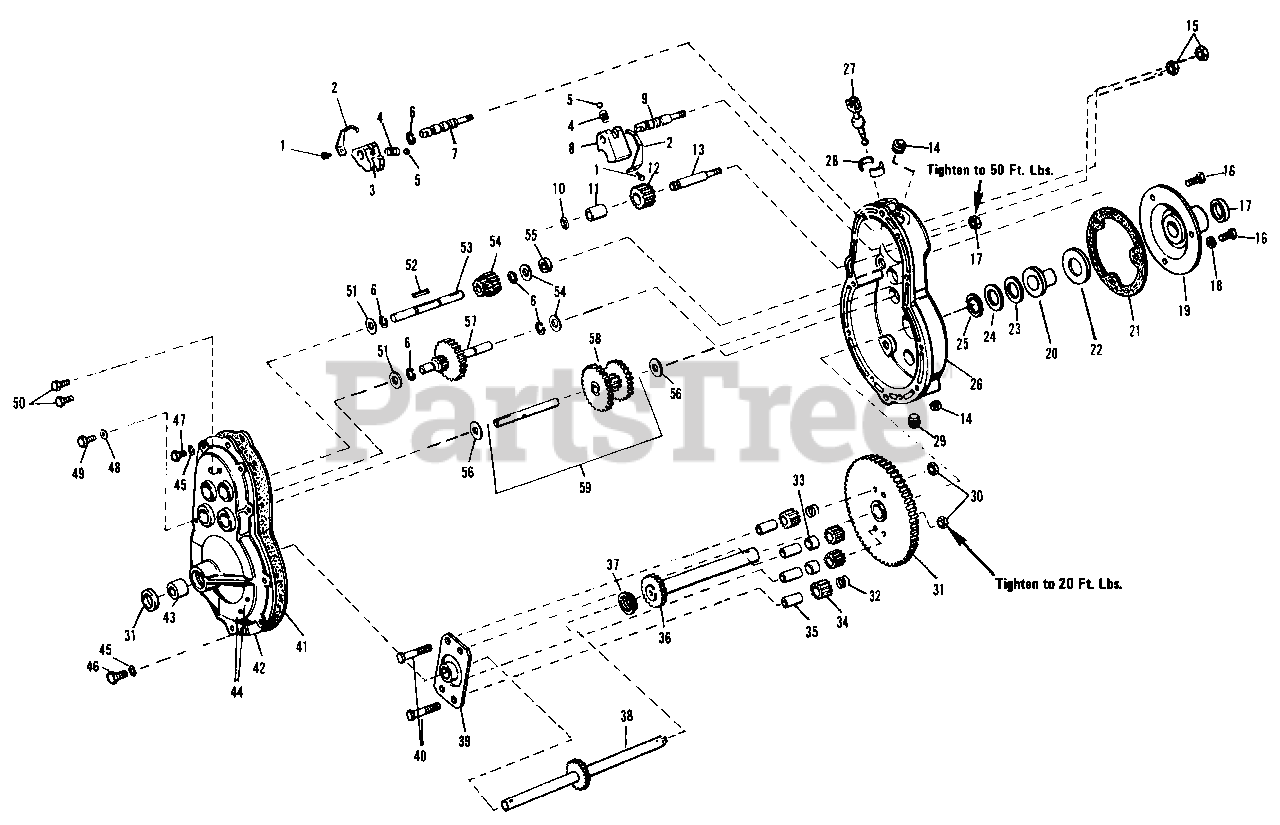

TRANSMISSION Parts Diagram

  • Title

1

Simplicity NLA - 7151-33

SCREW, Hex Head, 5/16-18 x 5/16

$

$

Currently unavailable

2

Simplicity 1713-42

SPRING
(Superseded to 1657656SM)

$13.99

$

Usually ships in 2-12 days

0

3

Simplicity 1713-63

FORK, Shift, Reverse

$

$

Not available

4

Simplicity 1714-56

SPRING
(Superseded to 2171456SM)

$8.99

$

Usually ships in 2-12 days

0

5

Simplicity 1542-62

BALL-shift lock
(Superseded to 2815904SM)

$3.49

$

In Stock, only 2 left!

0

6

Simplicity 80610-48

RING-retaining
(Superseded to 1729260SM)

$5.99

$

Usually ships in 2-12 days

0

7

Simplicity 1713-65

SHAFT, Reverse & I (990776 & 990777 Only)

$

$

Not available

8

Simplicity 1713-64

FORK, Shift, I & II (990776 & 990777 Only)

$

$

Not available

9

Simplicity 2171372SM

SHAFT. Hi-Lo (990776 & 990777 Only)

$96.99

$

Usually ships in 2-12 days

0

10

Simplicity 1650-06

"O" RING
(Superseded to 2165006SM)

$10.99

$

Usually ships in 2-12 days

0

11

Simplicity 1560-82

BEARING-roller

$

$

Not available

12

Simplicity 1650-07

PINION-reverse
(Superseded to 1650625SM)

$63.99

$

Usually ships in 2-12 days

0

13

Simplicity 1650-05

SHAFT, Reverse, Pinion

$

$

Not available

14

Simplicity 2726252

PLUG-pipe

$

$

Not available

15

Simplicity 9182-13

NUT-hex
(Superseded to 1918213SM)

$4.99

$

In Stock, only 2 left!

0

16

Simplicity 2705031

Screw, Cap, Hex., 3/8"-16 N.C. x 7/8" lg.

$

$

Not available

17

Simplicity 1630-19

SEAL, Oil (990560 Only)

$

$

Not available

18

Simplicity 2720002

Lockwasher, 3/8" (Mfg. Nos. 920 & 953)

$

$

Not available

19

Simplicity 1630-56

PLATE SUPPORT ASSEMBLY

$

$

Not available

20

Simplicity 1630-20

Includes: BUSHING

$

$

Not available

21

Simplicity 1630-09

GASKET (990560 Only)

$

$

Not available

22

Simplicity 1630-16

WASHER

$

$

Not available

23

Simplicity 1630-14

WASHER (990560 Only)

$

$

Not available

23

Simplicity 1630-88

WASHER (990560 Only)

$

$

Not available

24

Simplicity 1630-15

WASHER (990560 Only)

$

$

Not available

25

Simplicity 1630-17

RING, Retaining (990560 Only)

$

$

Not available

26

Simplicity 1630-94

CASE ASSY., Gear (Includes Ref. Nos. 6, 7, 8, 9, 13 & 14)

$

$

Not available

27

Simplicity 1560-31

Includes: SHIFT ROD ASSEMBLY

$

$

Not available

28

Simplicity 2101042SM

BUSHING, Ball, Half

$

$

Not available

29

Simplicity 2726003

Pipe Plug, 3/8" Std.

$

$

Not available

30

Simplicity 9234-28

SCREW, Hex Head, 3/8-16 x 1-1/4
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

31

Simplicity 1630-13

GEAR ASSY., Drive

$

$

Not available

32

Simplicity 1620-85

SPRING-thrust
(Superseded to 2162085SM)

$6.99

$

In Stock, Qty 8

0

33

Simplicity 1210-84

SPACER-diff.
(Superseded to 2121084SM)

$12.99

$

Usually ships in 2-12 days

0

34

Simplicity 1585-79

PINION-diff.
(Superseded to 2158579SM)

$

$

Not available

35

Simplicity 1210-83

SPINDLE-pinion diff.
(Superseded to 2121083SM)

$13.99

$

In Stock, only 1 left!

0

36

Simplicity 1612-17

AXLE TUBE & BUSHING ASSEMBLY

$

$

Not available

37

Simplicity 158358

CUP, Thrust (990643 & 990796 Only)

$

$

Not available

38

Simplicity 1612-06

AXLE-assembly

$

$

Not available

39

Simplicity 1630-54

DIFFERENTIAL PLATE ASSEMBLY

$

$

Not available

40

Simplicity 2715043

Capscrew, Hex Hd., 3/8"-16 NC x 2-1/2" lg.

$

$

Not available

41

Simplicity 1561-03

GASKET-case
(Superseded to 2156103SM)

$22.99

$

Usually ships in 2-12 days

0

42

Simplicity 1735-66

COVER-gearcase sub-assembly

$

$

Not available

43

Simplicity 1630-21

Includes: BUSHING

$

$

Not available

44

Simplicity 713507

Set Screw, Cup Pt. Socket Hd., 3/8"-16 x 3/8"

$

$

Not available

45

Simplicity 2720001

Lockwasher, External 1/4" (Mfg. Nos. 953 & 954)

$

$

Not available

46

Simplicity 2715078

Hex Capscrew, 5/16"-18 x 1-1/2" lg.

$

$

Not available

47

Simplicity 2705019

Hex. Hd. Capscrew, 5/16"-18 N.C. x 1-1/4" lg.

$

$

Not available

48

Simplicity 2719001

Plain Washer, 5/16" (Mfg. Nos. 953 & 954)

$

$

Not available

49

Simplicity 9234-28

SCREW, Hex Head, 3/8-16 x 1-1/4
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

50

Simplicity 2705040

Hex Capscrew, 7/16"-14 x 3/4" lg.

$

$

Not available

51

Simplicity 1560-85

WASHER
(Superseded to 1666379SM)

$28.99

$

In Stock, only 1 left!

0

52

Simplicity 1560-86

KEY
(Superseded to 2156086SM)

$8.49

$

In Stock, only 2 left!

0

53

Simplicity 1560-83

SHAFT, Pulley

$

$

Not available

54

Simplicity 1560-87

PINION ASSEMBLY hi-lo
(Superseded to 2156087SM)

$108.99

$

Usually ships in 2-12 days

0

55

Simplicity 1560-84

SEAL-oil
(Superseded to 2156084SM)

$16.99

$

Usually ships in 2-12 days

0

56

Simplicity 1560-89

WASHER
(Superseded to 1960020SM)

$4.49

$

In Stock, Qty 20+

0

57

Simplicity 1650-13

GEAR & SHAFT ASSEMBLY
(Superseded to 2165013SM)

$159.99

$

Usually ships in 2-12 days

0

58

Simplicity 1650-11

CLUSTER GEAR ASSEMBLY
(Superseded to 2165009SM)

$329.99

$

Usually ships in 2-12 days

0

59

Simplicity 1610-71

SHAFT & GEAR ASSEMBLY

$

$

Not available

59

Simplicity 2163012SM

SEAL, Oil (990560 Only)

Note: Not Shown

$13.99

$

Usually ships in 2-12 days

0

59

Simplicity 158365

BUSHING (990643 & 990796 Only)

Note: Not Shown

$

$

Not available

59

Simplicity 161212

SEAL, Oil (990560 Only)

Note: Not Shown

$

$

Not available

59

Simplicity 174240

PULLEY

Note: Not Shown

$

$

Not available

59

Simplicity 1606014

STOP, Belt

Note: Not Shown

$

$

Not available
