991002 (PM 100Z) - Gravely Pro-Master 50" Zero-Turn Mower, 18hp Kohler (SN: 001995 & Above) FUEL AND EXHAUST SYSTEM 16 AND 18 H.P. Parts Diagram

Pro-Master 50" Zero-Turn Mower, 18hp Kohler

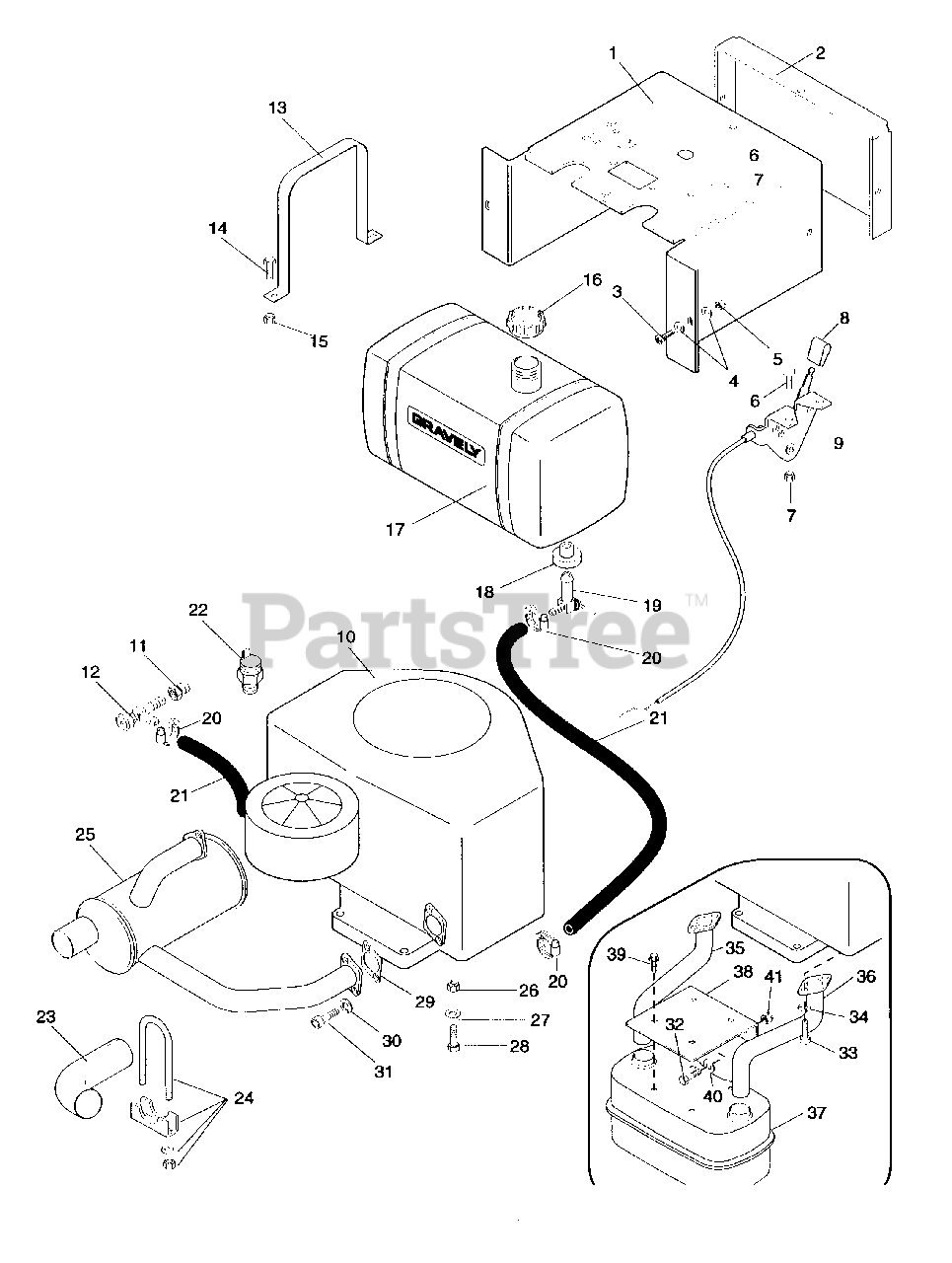

FUEL AND EXHAUST SYSTEM 16 AND 18 H.P. Parts Diagram

  • Title
1

91022

Pnl, Silkscreen

$

$

Not available

2

91067

Cvr, Instrument Panel

$

$

Not available

3

Gravely 160541

Scr - Mch .25 - 20 Pan Hd
(Superseded to 06113500)

$2.99

$

In Stock, only 3 left!

0

4

50365

Wshr - Fl - Stl .281 x .62 x .065 Pl

$

$

Not available

5

Gravely 419454

Nut - Lk - Nyl .250 - 20 Pl
(Superseded to 06500832)

$4.99

$

Usually ships in 4-12 days

0

6

Gravely 160046

Scr - Mch 10 - 32 x .50 Phd
(Superseded to 06113300)

$2.49

$

Usually ships in 4-12 days

0

7

65028

Nut - Lk 10 - 32 Ny Pl

$

$

Not available

8

Gravely 044589

Knob
(Superseded to 07501900)

$

$

Not available

9

Gravely 053385

Asm, Choke Control
(Superseded to 06923400)

$

$

Not available

9

Gravely 053237

Asm, Throttle Control
(Superseded to 06923300)

$

$

Not available

10

Gravely 043315

Eng, 18 H.P. Magnum, PS-58550

Note: Models (02,04)

$

$

Not available

10

Gravely 082326

Engine 16 HP B & S

Note: Models (01,03)

$

$

Not available

11

Gravely 035328

Adapter, Oil Drain
(Superseded to 03493100)

$5.99

$

Usually ships in 4-12 days

0

12

Gravely 035329

Cock, Oil Drain
(Superseded to 00429000)

$39.99

$

In Stock, only 1 left!

0

13

Gravely 049338

Strp, Fuel Tank
(Superseded to 08835900)

$90.99

$

In Stock, only 1 left!

0

14

Gravely 180018

Blt - Hex .25 - 20 x .63
(Superseded to 05932000)

$1.99

$

In Stock, only 1 left!

0

15

Gravely 419454

Nut - Lk - Nyl .250 - 20 Pl
(Superseded to 06500832)

$4.99

$

Usually ships in 4-12 days

0

16

Gravely 048856

Cap, Fuel Tank
(Superseded to 07533400)

$22.99

$

In Stock, only 1 left!

0

17

Gravely 049283

Tank, Fuel Gravely Pro
(Superseded to 08867900)

$164.99

$

Usually ships in 4-12 days

0

18

Gravely 050246

Bushing
(Superseded to 07511400)

$3.49

$

In Stock, Qty 20+

0

19

Gravely 049281

Valve, Ball Shut - Off

$

$

Not available

20

Gravely 032045

Hose Clamp
(Superseded to 06924300)

$6.99

$

Usually ships in 4-12 days

0

21

Gravely 021134

Gas Line - Bulk
(Superseded to 03278100)

$1.49

$

In Stock, Qty 20+

0

22

Gravely 041937

Switch, Pressure
(Superseded to 08939200)

$22.99

$

In Stock, only 2 left!

0

23

91089

Deflector, Exhaust

Note: Models (02,04)

$

$

Not available

24

Gravely 041522

Clamp, U 1.75
(Superseded to 06926400)

Note: Models (02,04)

$

$

Not available

25

Gravely 044389

Muffler
(Superseded to 08824600)

Note: Models (02,04)

$688.99

$

In Stock, only 1 left!

0

26

Gravely 419455

Nut - Lk - Nyl .312 - 18 Pl
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

27

Gravely 120393

Wshr - Fl - Stl .344 x .66 x .065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

28

Gravely 180083

Blt - Hex .31 - 18 x 1.50 Pl Gr 5
(Superseded to 05901710)

$1.49

$

In Stock, Qty 13

0

29

Gravely 044390

Gasket, Exhaust
(Superseded to 08824700)

Note: Models (02,04)

$10.99

$

In Stock, only 2 left!

0

30

Gravely 120214

Wshr - Lock .313 x .078 Pl
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

31

Gravely 421705

Scr - Cap .31 - 18 x .75 S/HD
(Superseded to 05901827)

$2.49

$

In Stock, only 3 left!

0

32

Gravely 180126

Blt-Hex .38-16 x 1.50 Pl Gr 5
(Superseded to 05901928)

$1.49

$

In Stock, Qty 14

0

33

Gravely 051666

Scr-Skh M8 x 1.25 x 20MM Pl
(Superseded to 05931800)

$2.49

$

Usually ships in 4-12 days

0

34

Gravely 120214

Wshr-Lock .313 x .078 Pl
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

35

Gravely 091113

Headpipe, Nelson Q-33477, 16 B/S
(Superseded to 09111300)

$

$

Not available

36

Gravely 091114

Headpipe, Nelson Q-33476, 16 B/S
(Superseded to 09111400)

$

$

Not available

37

Gravely 091112

Muffler, Nelson #24392-N
(Superseded to 09111200)

$

$

Not available

38

Gravely 091111

Brk, Muffler, B/S V
(Superseded to 09111100)

$

$

Not available

39

Gravely 074100

Scr-Tap 12-24 x .75 Hwh Pl Tr
(Superseded to 07414600)

$3.49

$

Usually ships in 4-12 days

0

40

Gravely 064008

Wshr-Fl-Stl .438 x 1.0 x .083 Pl
(Superseded to 06401008)

$1.49

$

In Stock, Qty 20+

0

41

Gravely 456004

Nut-Lk-Nyl .375-16 Pl
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0
