991031 - Simplicity Dump Cart Cover DUMP CART COVER MFG. NO. 1031 Parts Diagram

Dump Cart Cover

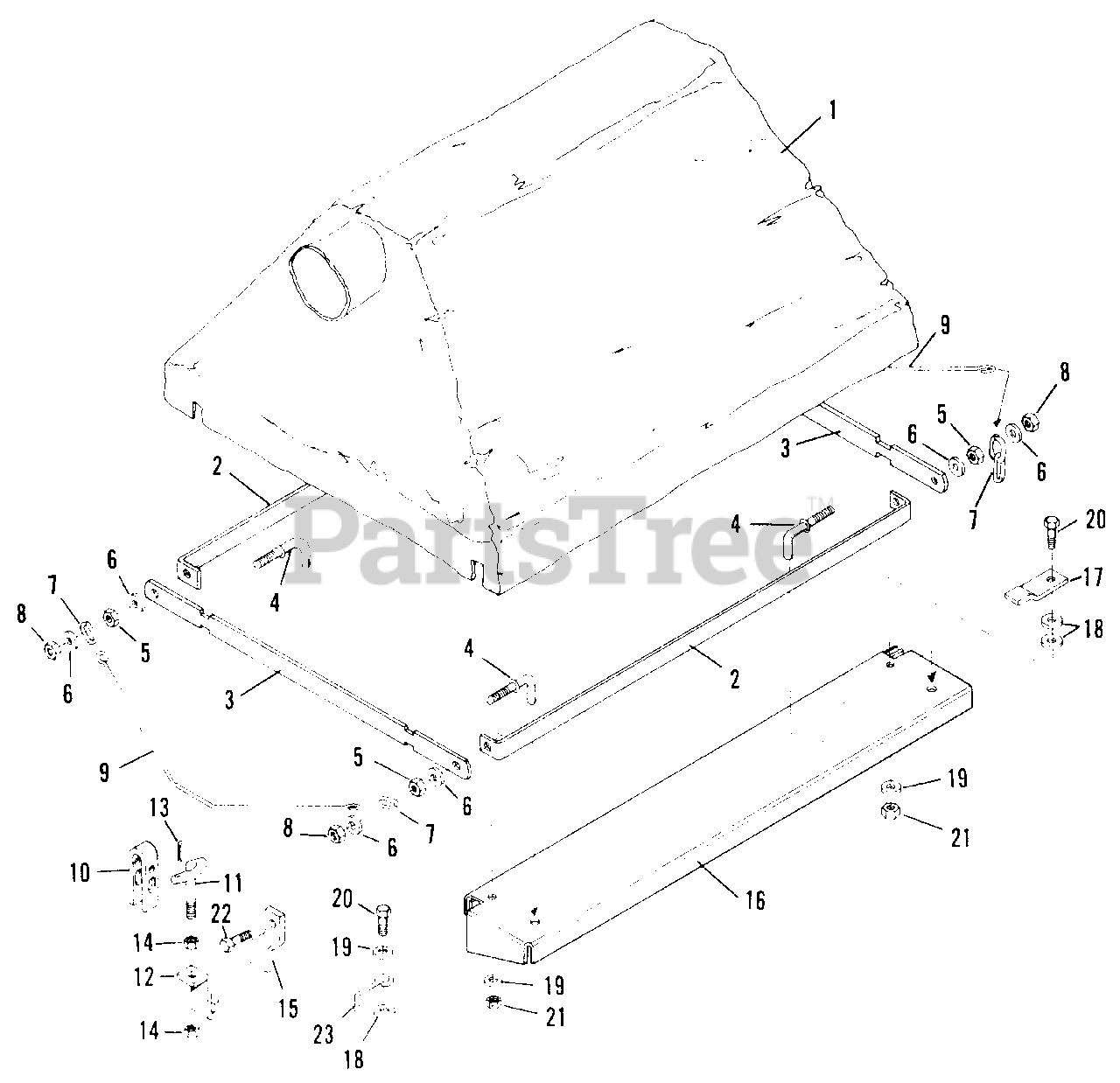

DUMP CART COVER MFG. NO. 1031 Parts Diagram

  • Title

1

Simplicity 2177917SM

Cart Cover

$

$

Not available

2

Simplicity 178191

Side Bar Reinf.

$

$

Not available

3

Simplicity 178192

End Bar Reinf.

$

$

Not available

4

Simplicity 178189

Pin

$

$

Not available

5

Simplicity 2717003

Hex Nut, 3/8-16

$

$

Not available

6

Simplicity 2719001

Flat Washer, 3/8

$

$

Not available

7

Simplicity 170134

Link

$

$

Not available

8

Simplicity 2717510

Hex Nut, Centerlock

$

$

Not available

9

Simplicity 178188

Bail

$

$

Not available

10

Simplicity 170002

Lever

$

$

Not available

11

Simplicity 170001

Rod Latch

$

$

Not available

12

Simplicity 170000

Latch

$

$

Not available

13

Simplicity 2722006

Cotter Pin

$

$

Not available

14

Simplicity 2717510

Hex Nut Centerlock

$

$

Not available

15

Simplicity 178190

Bracket

Note: Attached to Front of Dump Cart

$

$

Not available

16

Simplicity 178187

Side Panel

$

$

Not available

17

Simplicity 178198

Bracket

$

$

Not available

18

Simplicity 2159134

Washer, Special

$

$

Not available

19

Simplicity 2719002

Plain Washer, 5/16

$

$

Not available

20

Simplicity 2705017

Hex Capscrew, 5/16-18 x 3/4

$

$

Not available

21

Simplicity 2717511

Hex Locknut, 5/16-18

$

$

Not available

22

Simplicity 2705016

Hex Capscrew, 3/8-16 x 1-1/4

$

$

Not available

23

Simplicity 1630-65

Belt Stop

$

$

Not available
