991063 (PM 152i) - Gravely Pro-Master 52" Zero-Turn Mower, Kawasaki (SN: 000101 & Above) Frame Parts Diagram

Pro-Master 52" Zero-Turn Mower, Kawasaki

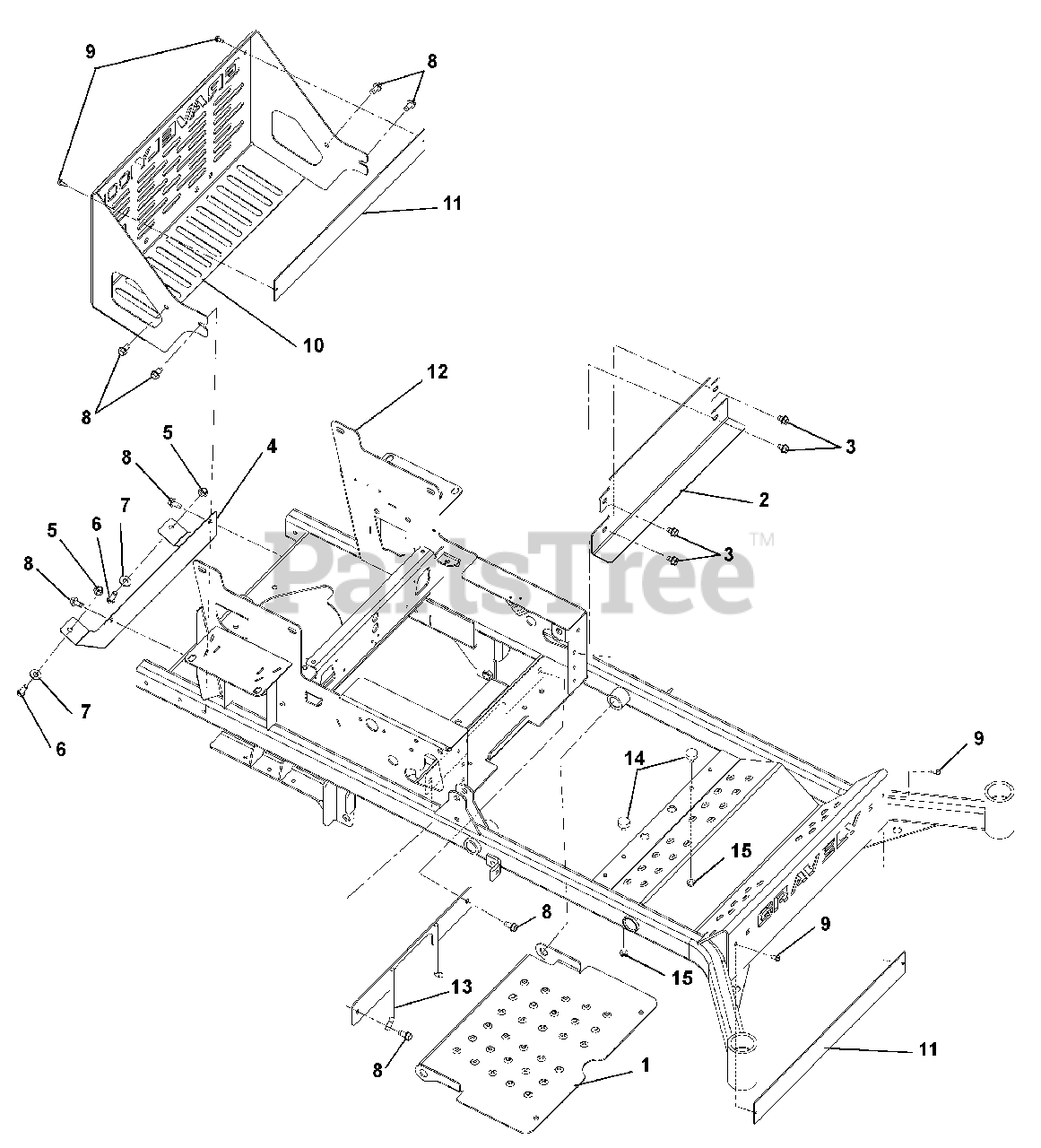

Frame Parts Diagram

  • Title

1

Gravely 03765753

100I Foot Plate

$

$

Not available

2

Gravely 03765953

100I Kick Plate

$27.99

$

Usually ships in 4-12 days

0

3

Gravely 07412900

Screw, Tapping .38-16 x .50 Hex Washer Head Thread Rolling
(Superseded to 07400126)

$1.49

$

In Stock, only 4 left!

0

4

Gravely 00462351

Shield, Heat- CZ PROD

$49.99

$

Usually ships in 4-12 days

0

5

Gravely 06545500

Nut, .38-16 Nyloc Flange
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

6

Gravely 05948700

Bolt, Hex .38-16X1.00 Grade 5
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 06435900

Washer, Flat-Steel .438 x 1.00 x .083
(Superseded to 06401008)

$1.49

$

In Stock, only 4 left!

0

8

Gravely 07415400

Screw, Tapping .38-16 x .75 Hex Washer Head Thread Rolling
(Superseded to 07400129)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 07412000

Screw, Tapping .25-20 x .50 Hex Washer Head Thread Rolling
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

10

Gravely 03766951

Gravely 100I Bumper

$210.99

$

Usually ships in 4-12 days

0

11

Gravely 03828553

100I Bumper Name Back Plate

$

$

Not available

12

Gravely 03742951

100I 60" Main Frame Weldment (064)

Note: (064)

$

$

Not available

Gravely 03834051

100I 48"-52" Main Frame Weldment (062, 063)

Note: (062, 063)

$

$

Not available

13

Gravely 03837651

100I PTO Belt Finger Weldment

$

$

Not available

14

Gravely 07533600

Bumper, Rubber

$14.99

$

In Stock, only 4 left!

0

15

Gravely 06530400

Nut, Spin Lock-Flange .312-18
(Superseded to 06500815)

$1.49

$

In Stock, only 4 left!

0
