992005 (PM 200) - Gravely Pro-Master 60" Zero-Turn Mower, 18hp Kawasaki (SN: 000101 & Above) 60" MOWER DECK Parts Diagram

Pro-Master 60" Zero-Turn Mower, 18hp Kawasaki

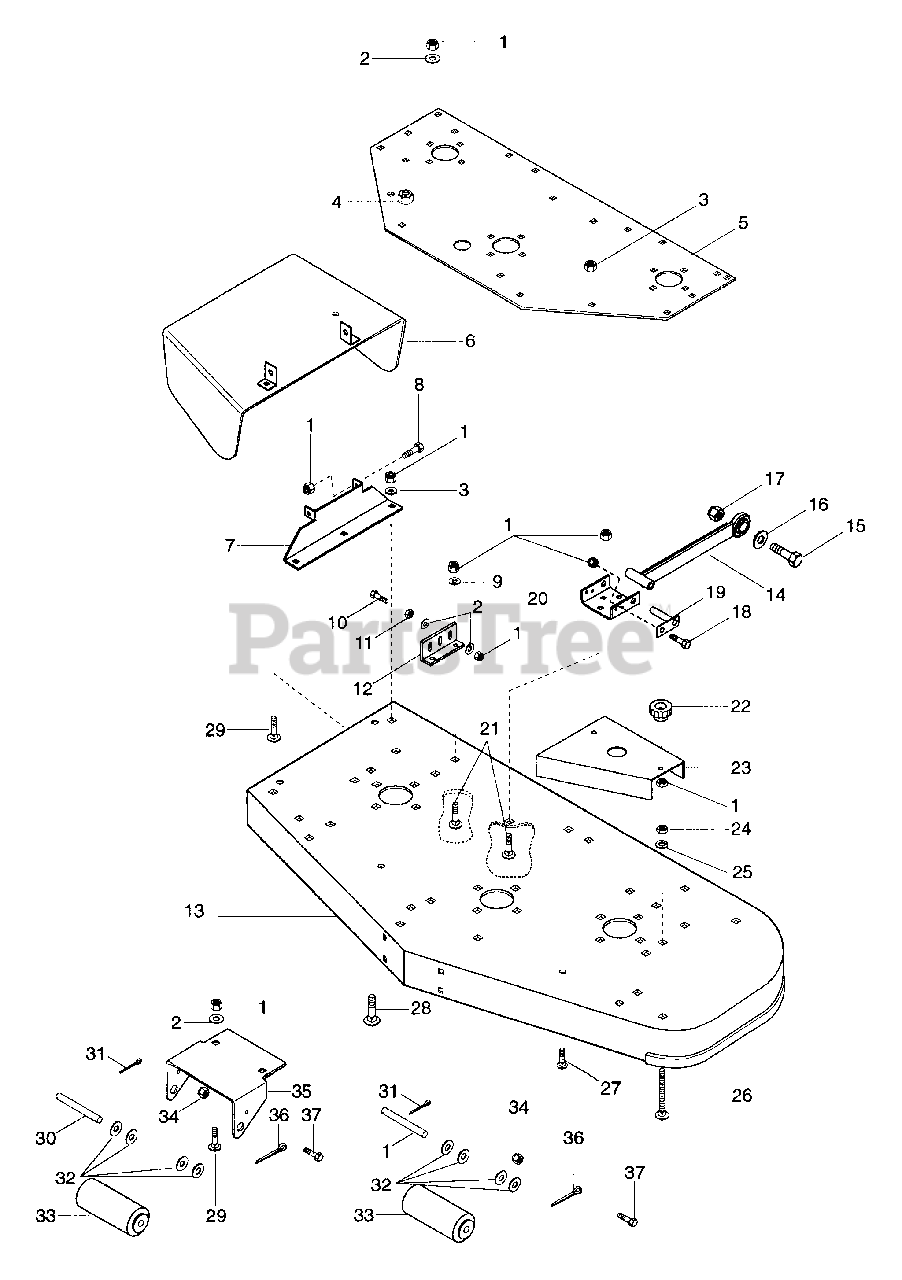

60" MOWER DECK Parts Diagram

  • Title
1

Gravely 456004

Nut-Locking-Nylon .375-16 Grade 2
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

2

Gravely 120394

Washer-Flat-Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

3

Gravely 419455

Nut-Locking-Nylon .312-18 Grade 2
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

4

Gravely 435507

Nut-Locking-Nylon .50-13 Grade 2
(Superseded to 06500830)

$2.49

$

In Stock, Qty 5

0

5

Gravely 052841

Plate, 60" Support
(Superseded to 09012900)

$

$

Not available

6

Gravely 052808

Weldment, Discharge Chute
(Superseded to 09012600)

$

$

Not available

7

Gravely 049649

Bracket, Discharge
(Superseded to 08990400)

$54.99

$

Usually ships in 4-12 days

0

8

Gravely 180122

Bolt-Hex .38-16 x 1.00 Grade 5
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 014672

Bushing .406 x .750 x .188
(Superseded to 03488200)

$5.99

$

In Stock, Qty 6

0

10

Gravely 180126

Bolt-Hex .38-16 x 1.50 Grade 5
(Superseded to 05901928)

$1.49

$

In Stock, Qty 14

0

11

Gravely 120377

Nut-Hex .375-16 Grade 2
(Superseded to 06500917)

$0.99

$

In Stock, Qty 20+

0

12

Gravely 092101

Bracket, Mower Mounting
(Superseded to 09210153)

Note: (60" Mower)

$

$

Not available

13

Gravely 092100

Weldment, Deck 60" Mower PM200
(Superseded to 09210053)

$

$

Not available

14

Gravely 092095

Weldment, Mower Mounting Arm
(Superseded to 09209553)

$113.99

$

Usually ships in 4-12 days

0

15

059459

Bolt-Hex .87-9 x 2.75 Grade 5

$

$

Not available

16

Gravely 06416300

Washer-Flat-Steel .094 x .250 x .020
(Superseded to 06444700)

$3.99

$

In Stock, Qty 20+

0

17

Gravely 065281

Nut-Locking .875-9
(Superseded to 06528100)

$

$

Not available

18

Gravely 180120

Bolt-hex .38-16 x .75 Grade 5I
(Superseded to 05901702)

$1.49

$

In Stock, Qty 20+

0

19

Gravely 092137

Weldment, Mower Mounting Pin
(Superseded to 09213700)

$

$

Not available

20

Gravely 092098

Bracket, Mower Mounting
(Superseded to 09209853)

Note: (Rear)

$11.99

$

Usually ships in 4-12 days

0

21

Gravely 126402

Bolt-Round Head Square Neck .38-16 x 1.25
(Superseded to 06200415)

$2.49

$

In Stock, only 4 left!

0

22

Gravely 041674

knob
(Superseded to 07534800)

$3.49

$

In Stock, Qty 20+

0

23

Gravely 092204

Guard, Pulley L.H. 60" Mower
(Superseded to 09220453)

$

$

Not available

23

Gravely 092203

Guard, Pulley R.H. 60" Mower
(Superseded to 09220353)

$

$

Not available

24

Gravely 120376

Nut-Hex .312-18 Grade 2
(Superseded to 06529200)

$0.99

$

In Stock, Qty 10

0

25

Gravely 120214

Washer-Lock .313 x .078
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

26

Gravely 062052

Bolt-Round Head Square Neck .31-18 x 3.50
(Superseded to 06200411)

$5.99

$

Usually ships in 4-12 days

0

27

Gravely 126211

Bolt-Round Head Square Neck .31-18 x .62
(Superseded to 06200232)

$2.49

$

In Stock, Qty 20+

0

28

Gravely 126475

Bolt-Round Head Square Neck .50-13 x 1.00
(Superseded to 06224600)

$3.99

$

In Stock, only 3 left!

0

29

Gravely 120915

Bolt-Round Head Square Neck .38-16 x 1.0

$

$

Not available

30

Gravely 024795

Shift, Center Roller
(Superseded to 08598800)

$60.99

$

In Stock, only 1 left!

0

31

Gravely 179128

Pin-Cotter .25 x 1.00
(Superseded to 06713000)

$1.49

$

In Stock, only 2 left!

0

32

Gravely 131016

Washer-Flat-Steel .656 x 1.312 x .095
(Superseded to 06401118)

$2.49

$

In Stock, only 3 left!

0

33

Gravely 031390

Roller, Gage
(Superseded to 08803300)

$37.99

$

In Stock, only 1 left!

0

34

Gravely 419454

Nut-Locking-Nylon .250-20 Grade 2
(Superseded to 06500832)

$4.99

$

Usually ships in 4-12 days

0

35

Gravely 052796

Bracket, Roller R.H.
(Superseded to 09012300)

$77.99

$

In Stock, only 2 left!

0

36

Gravely 103422

Pin-Cotter .250 x 2.00
(Superseded to 06713100)

$3.99

$

Usually ships in 4-12 days

0

37

Gravely 180020

Bolt-Hex .25-20 x .75 Grade 5
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0
