992065 (PM 44Z) - Gravely Pro-Master 44" Zero-Turn Mower, 17hp Kawasaki (SN: 005000 & Above) Mounting Arms, Belt Guards And Rollers Parts Diagram

Pro-Master 44" Zero-Turn Mower, 17hp Kawasaki

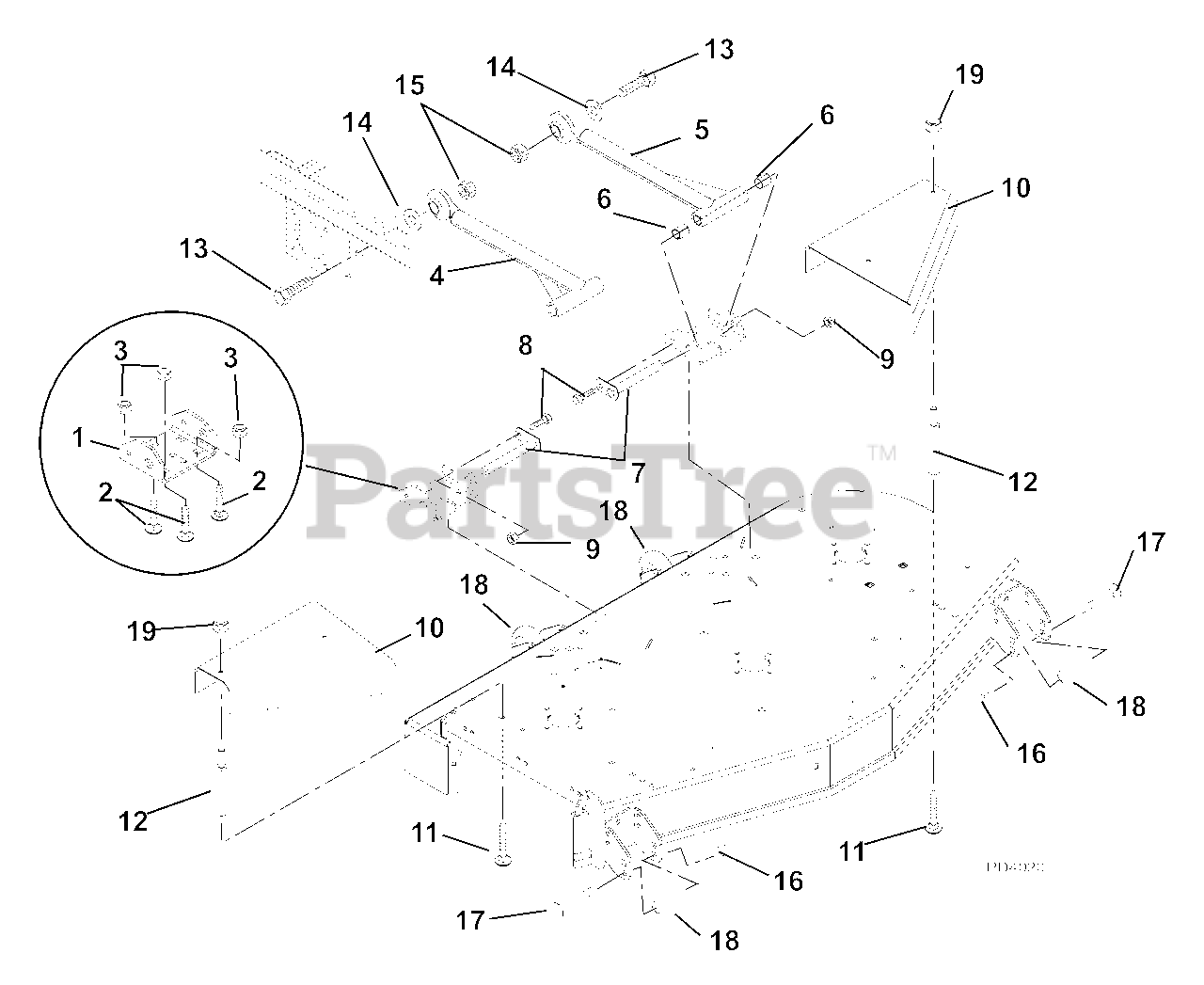

Mounting Arms, Belt Guards And Rollers Parts Diagram

  • Title

1

09240451

Bracket, Mower Mounting (Rear)

Note: (Rear)

$

$

Not available

2

Gravely 06221200

Bolt, Round Head Square Neck .50-13 x .75 Grade 5

$5.99

$

Usually ships in 4-12 days

0

3

Gravely 06519700

Nut, Locking Center Jam .50-13

$2.49

$

Usually ships in 4-12 days

0

4

Gravely 09282000

Assembly, Mower Mounting

Note: (Includes Items 5 and 6)

$213.99

$

Usually ships in 4-12 days

0

5

Gravely 09282151

Mower Mounting Arm

$142.99

$

Usually ships in 4-12 days

0

6

Gravely 05435900

Bearing, .75 x .875 x 1.00

$5.99

$

In Stock, Qty 6

0

7

Gravely 09238900

Weldment, Mower Mounting Pin

$60.99

$

In Stock, only 1 left!

0

8

Gravely 180121

Bolt-Hex .380-16 x .88
(Superseded to 05932600)

$2.49

$

In Stock, only 1 left!

0

9

Gravely 06545500

Nut, Nyloc Flange 3/8-16
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 09283553

Guard, Pulley

$83.99

$

Usually ships in 4-12 days

0

11

Gravely 06200002

Bolt, Round Head Square Neck .31-18 x .75
(Superseded to 06200425)

$3.99

$

In Stock, Qty 12

0

12

Gravely 00271200

Standoff. 2.75 x 5/16-18

$31.99

$

In Stock, only 2 left!

0

13

Gravely 05900003

Bolt, Hex .875-9 x 3.00

$6.99

$

Usually ships in 4-12 days

0

14

Gravely 05512600

Bushing, Sleeve .875 x 1.250 x .531

$5.99

$

Usually ships in 4-12 days

0

15

Gravely 06539700

Nut, Locking Center .875-9

$5.99

$

In Stock, only 3 left!

0

16

Gravely 06500010

Nut, Nyloc Flange .50-13
(Superseded to 06500810)

$2.49

$

Usually ships in 4-12 days

0

17

Gravely 06225900

Bolt, Round Head Square Neck .50-13 x 5.00 Grade 2
(Superseded to 06200505)

$5.99

$

In Stock, Qty 20+

0

18

Gravely 09253700

Wheel, 3 x 5

$14.99

$

In Stock, only 1 left!

0

19

Gravely 06545400

Nut, Nyloc Flange 3/8-18
(Superseded to 06500809)

$1.49

$

Usually ships in 4-12 days

0
