992137 (PM 260H) - Gravely Pro-Master 60" Zero-Turn Mower, 27hp Daihatsu LC (SN: 000101 & Above) Clutch & Flywheel Parts Diagram

Pro-Master 60" Zero-Turn Mower, 27hp Daihatsu LC

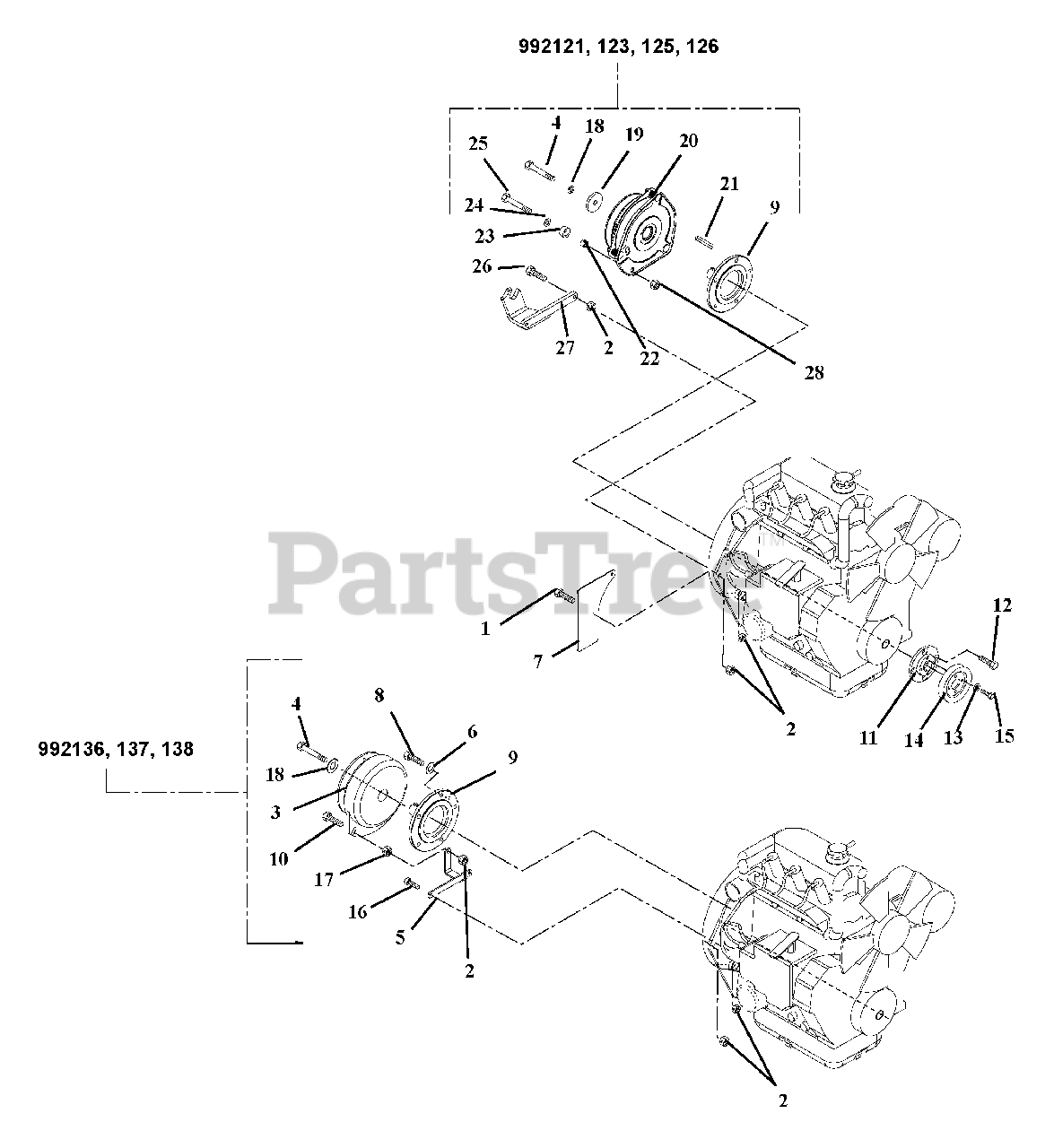

Clutch & Flywheel Parts Diagram

  • Title

1

Gravely 05947000

Bolt, Hex .31 -18 x .75 Grade 5
(Superseded to 05901704)

$1.49

$

In Stock, Qty 10

0

2

Gravely 06543100

Nut, Locking Top Flange .31-18
(Superseded to 06500904)

Note: (992136, 137, 138)

$1.49

$

In Stock, Qty 20+

0

2

Gravely 06543100

Nut, Locking Top Flange .31-18
(Superseded to 06500904)

Note: (992121, 123, 125, 126)

$1.49

$

In Stock, Qty 20+

0

3

Gravely 00462500

Clutch, Warner

$581.99

$

Usually ships in 4-12 days

0

NS

Gravely 59205200

Kit, Break Pole Module Replacement

$

$

Not available

4

Gravely 05964600

Bolt, Hex .44-20 x 2.50 Grade 5
(Superseded to 05902017)

$2.49

$

In Stock, only 1 left!

0

5

Gravely 09264551

Stabilizer, Clutch

$24.99

$

Usually ships in 4-12 days

0

6

Gravely 06308600

Washer, Lock .31 x .078 Regular
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

7

Gravely 09273851

Guard, Flywheel

$6.99

$

Usually ships in 4-12 days

0

8

Gravely 05964900

Bolt, Hex M8 x 1.25 x 25 Grade 8

$2.49

$

Usually ships in 4-12 days

0

9

Gravely 00447200

Stub Shaft

$

$

Not available

10

Gravely 05952400

Bolt, Hex .31-18 x 1.50 Grade 5
(Superseded to 05901710)

$1.49

$

In Stock, Qty 5

0

11

Gravely 09265600

Adapter, Sheave

$96.99

$

Usually ships in 4-12 days

0

12

Gravely 05978700

Bolt, M8-1.25 x 25

$3.99

$

Usually ships in 4-12 days

0

13

Gravely 06308400

Washer, Locking .25 x .062
(Superseded to 06401009)

$0.99

$

In Stock, Qty 16

0

14

Gravely 07328100

Sheave, Poly-V 1.0 x 3.25

$

$

Not available

15

Gravely 05946800

Bolt, Hex .25-20 x .75 Grade 5
(Superseded to 05901716)

$0.99

$

In Stock, Qty 7

0

16

Gravely 05946900

Bolt, Hex .31-18 x 1.00 Grade 5
(Superseded to 05901701)

$1.49

$

In Stock, only 4 left!

0

17

Gravely 06529200

Nut, Hex .31-18
(Superseded to 06500938)

$0.99

$

In Stock, Qty 14

0

18

Gravely 06309300

Washer, Locking .44 x .109 Regular
(Superseded to 06300121)

Note: (992121, 123, 125, 126)

$2.99

$

In Stock, only 1 left!

0

19

Gravely 06443600

Washer, Flat Steel .469 x 2.00 x .25
(Superseded to 06401111)

Note: (992121, 123, 125, 126)

$6.99

$

In Stock, Qty 18

0

20

Gravely 00458200

Clutch, Ogura

Note: (992121, 123, 125, 126)

$646.99

$

Usually ships in 4-12 days

0

21

Gravely 06610300

Key .25 x .25 x 2.25

Note: (992121, 123, 125, 126)

$2.99

$

In Stock, Qty 12

0

22

Gravely 08536300

Spacer .375 x .686 x .5/6 Steel

Note: (992121, 123, 125, 126)

$16.99

$

Usually ships in 4-12 days

0

23

Gravely 07500006

Bumper, Rubber .62 x 1.0 x .51

Note: (992121, 123, 125, 126)

$5.99

$

Usually ships in 4-12 days

0

24

Gravely 06436200

Washer, Flat Steel .406 x .812 x .065
(Superseded to 06401013)

Note: (992121, 123, 125, 126)

$0.99

$

In Stock, Qty 20+

0

25

Gravely 05948700

Bolt, Hex .38-16 x 1.00 Grade 5
(Superseded to 05901711)

Note: (992121, 123, 125, 126)

$1.49

$

In Stock, Qty 20+

0

26

Gravely 05947500

Bolt, Hex .31-18 x 1.25 Grade 5
(Superseded to 05901803)

Note: (992121, 123, 125, 126)

$2.49

$

In Stock, only 2 left!

0

27

Gravely 00449551

Bracket, Clutch Stop
(Superseded to 04638451)

Note: (992121, 123, 125, 126)

$46.99

$

Usually ships in 4-12 days

0

28

Gravely 06535900

Nut, Hex Jam .375-16
(Superseded to 06500910)

Note: (992121, 123, 125, 126)

$0.99

$

In Stock, only 3 left!

0
