992143 (ZT 2348 XLP) - Gravely 48" Zero-Turn Mower, 23hp Kohler (SN: 002000 & Above) Frame Parts Diagram

48" Zero-Turn Mower, 23hp Kohler

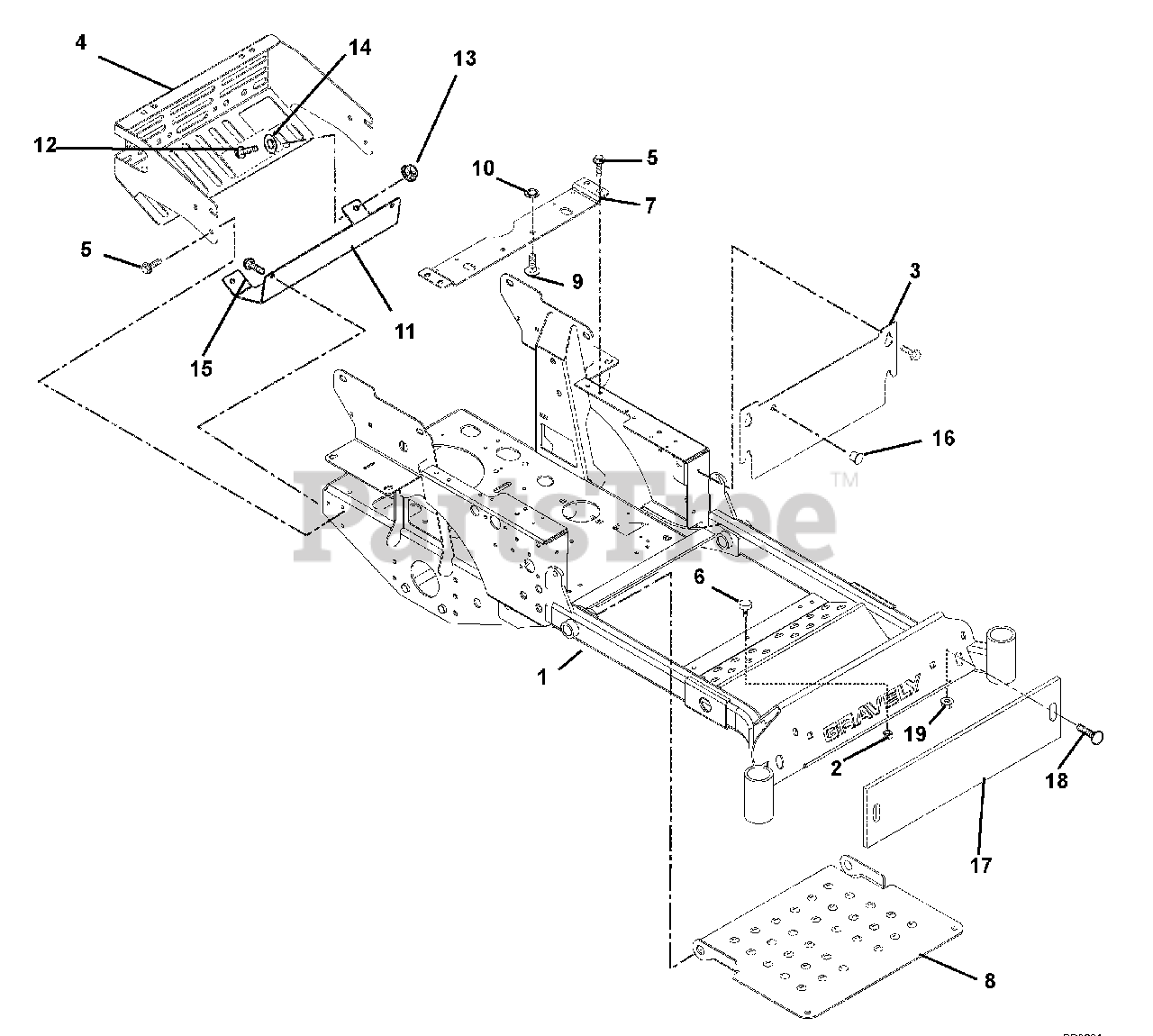

Frame Parts Diagram

  • Title

1

Gravely 00372251

Frame, Compact-Z (SN 000101 to 002499)

Note: (SN 000101 to 002499)

$

$

Not available

Gravely 00695651

Weldment, Frame (XLP) (SN 002500 and up)

Note: (XLP) (SN 002500 and up)

$

$

Not available

2

Gravely 06530400

Nut, Spin Lock Flange .312-18
(Superseded to 06500815)

$1.49

$

In Stock, only 4 left!

0

3

Gravely 09297253

Access Panel

$55.99

$

Usually ships in 4-12 days

0

4

Gravely 00366451

Bumper, Rear

$

$

Not available

5

Gravely 07415400

Screw, Tapping .38-16 x .75 Hex Washer Head
(Superseded to 07400129)

$1.49

$

In Stock, Qty 20+

0

6

Gravely 07533600

Bumper, Rubber

$14.99

$

In Stock, only 4 left!

0

7

Gravely 09297451

Seat Support

$86.99

$

Usually ships in 4-12 days

0

8

Gravely 00298953

Panel, Inspection

$

$

Not available

9

Gravely 06220800

Bolt, Round Head Square Short Neck .31-18 x .75 Grade 5
(Superseded to 06200309)

$2.49

$

In Stock, Qty 9

0

10

Gravely 06514900

Nut, Push .312

$0.99

$

In Stock, Qty 11

0

11

Gravely 00462351

Heat Shield, Compact Z

$49.99

$

Usually ships in 4-12 days

0

12

Gravely 05959400

Bolt, Hex .38-16 x .75 Grade 5
(Superseded to 05901702)

$1.49

$

In Stock, only 2 left!

0

13

Gravely 06545500

Nut, Nyloc Flange .38-16
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 06435900

Washer, Flat Steel .438 x 1.00 x .083
(Superseded to 06401008)

$1.49

$

In Stock, Qty 6

0

15

Gravely 07412900

Screw, Tapping .38-16 x .50 Hex Washer Head
(Superseded to 07400126)

$1.49

$

In Stock, only 4 left!

0

16

Gravely 01554900

Plug, Hole .56

$2.49

$

Usually ships in 4-12 days

0

17

Gravely 01922853

Counterweight CZ Front - Red (SN 002500 and up)

Note: (SN 002500 and up)

$37.99

$

Usually ships in 4-12 days

0

18

Gravely 06225500

Bolt, Round Head Square Neck .50-13 x 2.50 Grade 5 (SN 002500 and up)

Note: (SN 002500 and up)

$5.99

$

Usually ships in 4-12 days

0

19

Gravely 06500010

Nut .50-13 Nyloc Flange (SN 002500 and up)
(Superseded to 06500810)

Note: (SN 002500 and up)

$2.49

$

In Stock, Qty 20+

0
