992143 (ZT 2348 XLP) - Gravely 48" Zero-Turn Mower, 23hp Kohler (SN: 002000 & Above) Mounting Brackets Parts Diagram

48" Zero-Turn Mower, 23hp Kohler

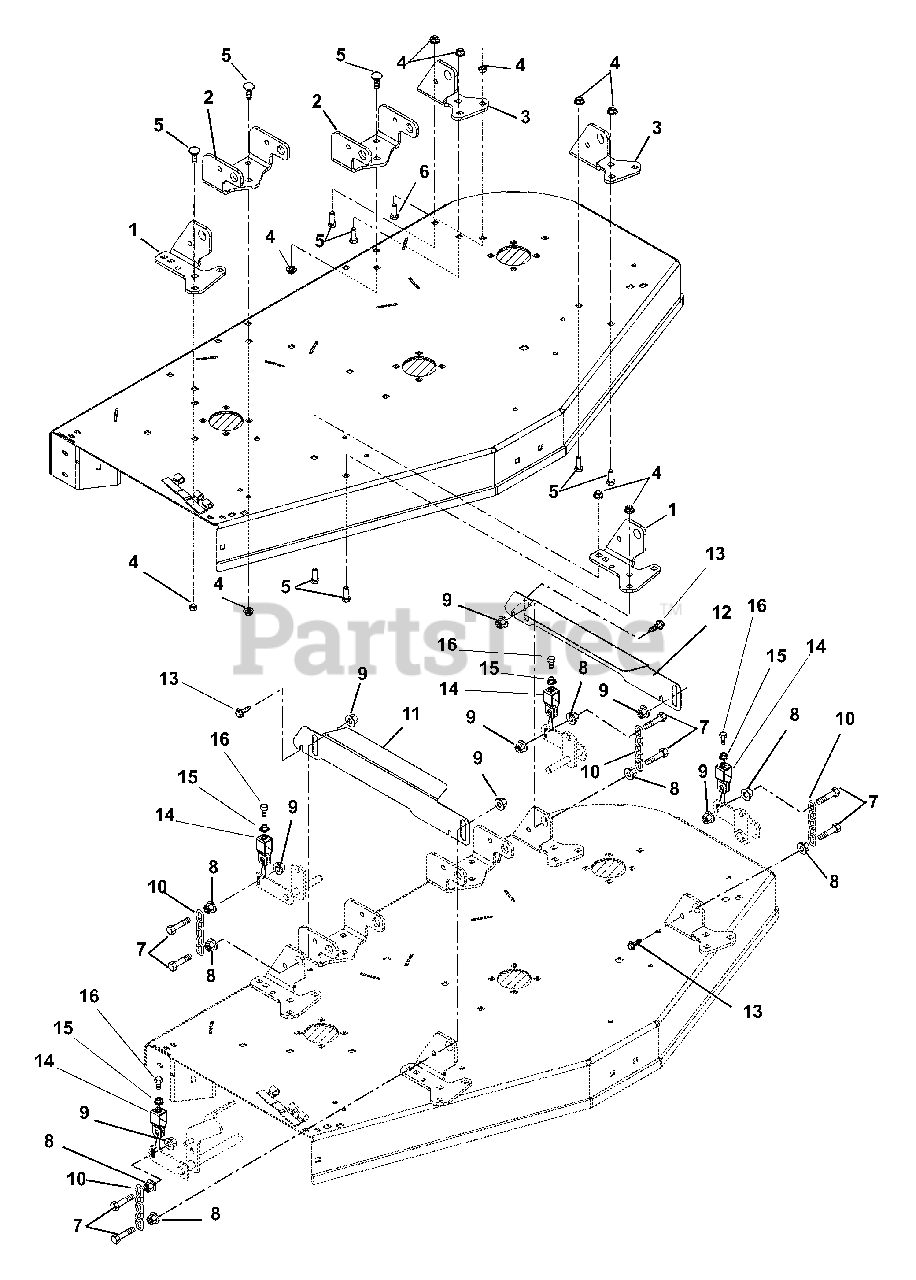

Mounting Brackets Parts Diagram

  • Title

1

Gravely 00826651

Bracket, Deck Hanging

$29.99

$

Usually ships in 4-12 days

0

2

Gravely 00345451

Bracket, Deck Mounting

$68.99

$

Usually ships in 4-12 days

0

3

Gravely 00826551

Bracket, Deck Hanging

$12.99

$

Usually ships in 4-12 days

0

4

Gravely 06545500

Nut, .38-16 Flange Nyloc
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

5

Gravely 06223600

Bolt, Round Head Square Neck .38-16 x 1.00 Grade 5
(Superseded to 06200313)

$2.49

$

In Stock, Qty 19

0

6

Gravely 06224100

Bolt, Round Head Square Neck .38-16 x 1.25 Grade 5
(Superseded to 06200415)

$2.49

$

In Stock, Qty 18

0

7

Gravely 05900022

Bolt, Hex M12-1.75 x 50 Grade 8

$3.99

$

In Stock, only 2 left!

0

8

Gravely 06500003

Nut, Spinlock Flange M12-1.75

$2.49

$

In Stock, only 2 left!

0

9

Gravely 06500004

Nut, Locking Top Flange M12-1.75

$2.99

$

Usually ships in 4-12 days

0

10

Gravely 09284700

Chain, Link

$6.49

$

In Stock, only 1 left!

0

11

Gravely 00484051

Bracket, Deck Stabilizing RH

$34.99

$

Usually ships in 4-12 days

0

12

Gravely 00483951

Bracket, Deck Stabilizing LH

$37.99

$

Usually ships in 4-12 days

0

13

Gravely 07412000

Screw, Tapping .25-20 x .50 Hex Washer Head
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

14

Gravely 00442800

Bracket, Deck Leveling

$9.49

$

In Stock, only 2 left!

0

15

Gravely 06536100

Nut, Jam .312-18
(Superseded to 06500909)

$0.99

$

In Stock, only 2 left!

0

16

Gravely 05980900

Bolt, Hex .312-18 x 2.00 Full Thread Grade 5
(Superseded to 05902003)

$2.99

$

In Stock, only 2 left!

0
