992215 (PM 260H XDZ) - Gravely Pro-Master 60" Zero-Turn Mower, 27hp Daihatsu (SN: 000101 - 002999) Belts, Spindles, Idlers And Mower Blades Parts Diagram

Pro-Master 60" Zero-Turn Mower, 27hp Daihatsu

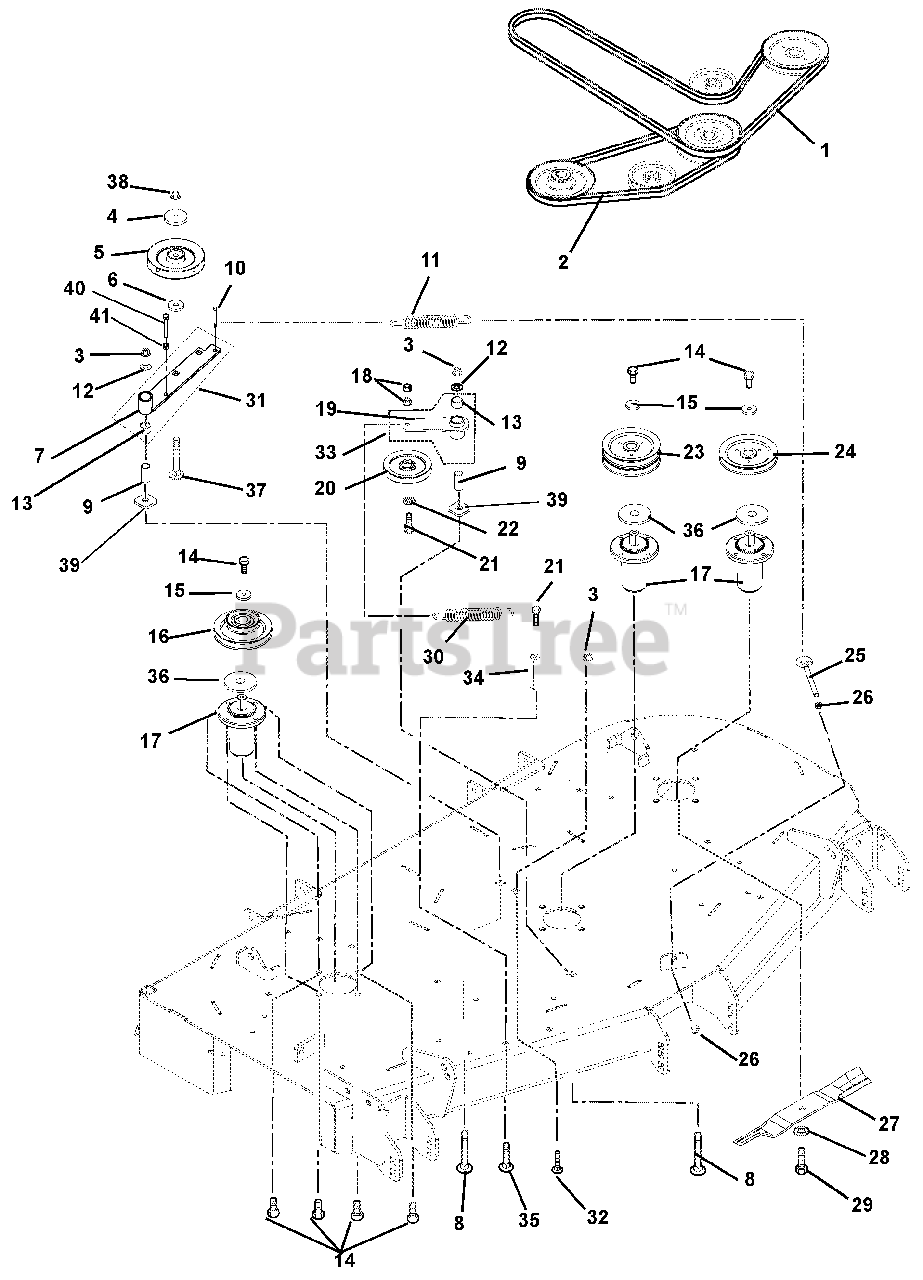

Belts, Spindles, Idlers And Mower Blades Parts Diagram

  • Title

1

Gravely 07200030

HEX BELT, BB-WRAPPED

Note: (215)

$148.99

$

In Stock, only 1 left!

0

Gravely 07200033

HEX BELT, BB-WRAPPED

Note: (216)

$177.99

$

Usually ships in 4-12 days

0

2

Gravely 07200038

V-BELT, B-COGGED

Note: (215)

$66.99

$

In Stock, Qty 7

0

Gravely 07200039

V-BELT, B-COGGED

Note: (216)

$74.99

$

Usually ships in 4-12 days

0

3

Gravely 06500010

@NUT-LK-NYL-FLG .50-13 YWZC
(Superseded to 06500810)

$2.49

$

In Stock, Qty 20+

0

4

Gravely 00450100

CAP, IDLER BEARING SEALING

$14.99

$

In Stock, only 3 left!

0

5

Gravely 07300527

SHV, .50"ID X 6.00"OD V-IDLER

$52.99

$

In Stock, Qty 6

0

6

Gravely 05500905

BSHG, SPCR .502X.997X.50 PM

$11.99

$

In Stock, Qty 13

0

7

Gravely 03774251

WMT, IDLER ARM

$68.99

$

In Stock, Qty 5

0

8

Gravely 06225000

@BLT-RDHDSQNK .50-13X3.50 G5YZ
(Superseded to 06200317)

$5.99

$

Usually ships in 4-12 days

0

9

Gravely 01581700

BSHG, SPCR .502X.997X2.03 PM

$5.99

$

In Stock, Qty 14

0

10

Gravely 07000034

BLT,SHLDR EP .38-16X.30 HEX YZ

$3.99

$

In Stock, Qty 7

0

11

Gravely 08300505

SPRING, EXTENSION

Note: (Deck Idler)

$23.99

$

In Stock, Qty 8

0

12

Gravely 06442000

@WSHR-FL-STL.563X1.38X.109YWZC
(Superseded to 06401012)

$3.49

$

In Stock, Qty 12

0

13

Gravely 05500123

BSHG, 1.00 X 1.125 X 1.937
(Superseded to 05501234)

$10.99

$

In Stock, Qty 20+

0

14

Gravely 05900013

BLT-HEX .38-16X1.0 GR8 YZ EP30
(Superseded to 05901721)

$1.99

$

In Stock, Qty 10

0

15

Gravely 06400006

WSHR,FLT STL.406X1.50X.245YWZC
(Superseded to 06401110)

$3.99

$

In Stock, Qty 20+

0

16

Gravely 07329167

PULLEY, DBL-1"IDX6.75"&4.25"OD

Note: (215)

$82.99

$

Usually ships in 4-12 days

0

Gravely 07300027

SHV,DBL 1.0"IDX8.25" & 5.25"OD
(Superseded to 59217500)

Note: (216)

$118.99

$

Usually ships in 4-12 days

0

17

Gravely 69219700

ASSEMBLY, SPINDLE
(Superseded to 59225700)

Note: (216)

$239.99

$

In Stock, Qty 20+

0

Gravely 69221300

ASSEMBLY, SPINDLE-LONG G3500
(Superseded to 59225700)

Note: (215)

$239.99

$

In Stock, Qty 20+

0

18

Gravely 06529600

@NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

19

Gravely 03774151

WMT, IDLER ARM - BLACK

$51.99

$

In Stock, only 3 left!

0

20

Gravely 07300526

SHV, .38"ID X 5.00"OD V-IDLER
(Superseded to 07351800)

$30.99

$

Usually ships in 4-12 days

0

21

Gravely 05962900

@BLT-HEX .38-16X2.25 GR5 YWZC
(Superseded to 05901640)

$3.99

$

In Stock, Qty 20+

0

22

Gravely 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

23

Gravely 07328867

PULLEY, DOUBLE-1"ID X 6.75"OD
(Superseded to 59211500)

Note: (215)

$85.99

$

In Stock, Qty 8

0

Gravely 07300023

SHEAVE, DOUBLE 1"ID X 8.25"OD
(Superseded to 59217300)

Note: (216)

$194.99

$

Usually ships in 4-12 days

0

24

Gravely 07328967

PULLEY, V-1" ID X 6.75" OD
(Superseded to 59211600)

Note: (215)

$78.99

$

Usually ships in 4-12 days

0

Gravely 07300024

SHEAVE, SINGLE 1"ID X 8.25"OD
(Superseded to 59217400)

Note: (216)

$118.99

$

Usually ships in 4-12 days

0

25

Gravely 07001604

BOLT, .38-16X6.00 .62 DIA EYE

$6.99

$

In Stock, only 4 left!

0

26

Gravely 06535900

NUT-HEX-JAM .375-16 YWZC
(Superseded to 06500910)

$0.99

$

In Stock, only 3 left!

0

27

Gravely 09081200

BLADE, MOWER (20.50")

Note: (20.50") (215)

$29.99

$

In Stock, Qty 20+

0

Gravely 08866900

BLADE, MULCHING (20.50")

Note: (20.50") (215)

$34.99

$

In Stock, Qty 5

0

Gravely 09290500

BLADE, MOWER-72" (24.50" LG)

Note: (24.50") without Tungsten Carbide Hardfacing (216)

$36.99

$

In Stock, Qty 13

0

Gravely 09290600

BLADE,MOWER-72"MULCH(24.5"LG)

Note: (24.50") (216)

$38.99

$

Usually ships in 4-12 days

0

28

Gravely 06445700

WSHR-BLVL .669X1.535X.138

$4.99

$

In Stock, Qty 20+

0

29

Gravely 05978900

BLT-HEX .62-18X1.75 GR8 YWZC
(Superseded to 05901822)

$3.49

$

In Stock, Qty 20+

0

30

Gravely 08300507

SPRING, EXTENSION
(Superseded to 08300728)

$26.99

$

Usually ships in 4-12 days

0

31

Gravely 03796300

ASM, IDLER PIVOT ARM (PTO)
(Superseded to 59218300)

Note: (Includes item # 7 and item # 13)

$79.99

$

In Stock, only 1 left!

0

32

Gravely 06200006

BLT-RDHDSHSQNKFT.50-13X1.50 G5

$5.99

$

Usually ships in 4-12 days

0

33

Gravely 03796400

ASM, IDLER ARM (DECK)

Note: (Includes item # 13 and item # 19 )

$62.99

$

Usually ships in 4-12 days

0

34

Gravely 06533500

NUT COUPLING .375-16X1.75

$3.99

$

In Stock, Qty 10

0

35

Gravely 06212000

@BLT-RDHDSHSQNK.38-16X1.0 G5YZ
(Superseded to 06200235)

$1.49

$

In Stock, Qty 20+

0

36

Gravely 00481000

RETAINER, GREASE

$9.99

$

In Stock, only 1 left!

0

37

Gravely 06224900

@BLT-RDHDSQNK .50-13X3.00 G5YZ

$5.99

$

In Stock, Qty 10

0

38

Gravely 06500010

@NUT-LK-NYL-FLG .50-13 YWZC
(Superseded to 06500810)

$2.49

$

In Stock, Qty 20+

0

39

Gravely 06400829

WSHR-FLT .640X1.75X.250

$3.99

$

In Stock, only 3 left!

0

40

Gravely 05961400

@BLT-HEX .38-16X2.75 GR5 YWZC
(Superseded to 05901611)

$3.99

$

In Stock, Qty 16

0

41

Gravely 06529400

@NUT-HEX .38-16 YWZC
(Superseded to 06500917)

$0.99

$

In Stock, Qty 6

0
