992215 (PM 260H XDZ) - Gravely Pro-Master 60" Zero-Turn Mower, 27hp Daihatsu (SN: 000101 - 002999) Clutch & Flywheel Parts Diagram

Pro-Master 60" Zero-Turn Mower, 27hp Daihatsu

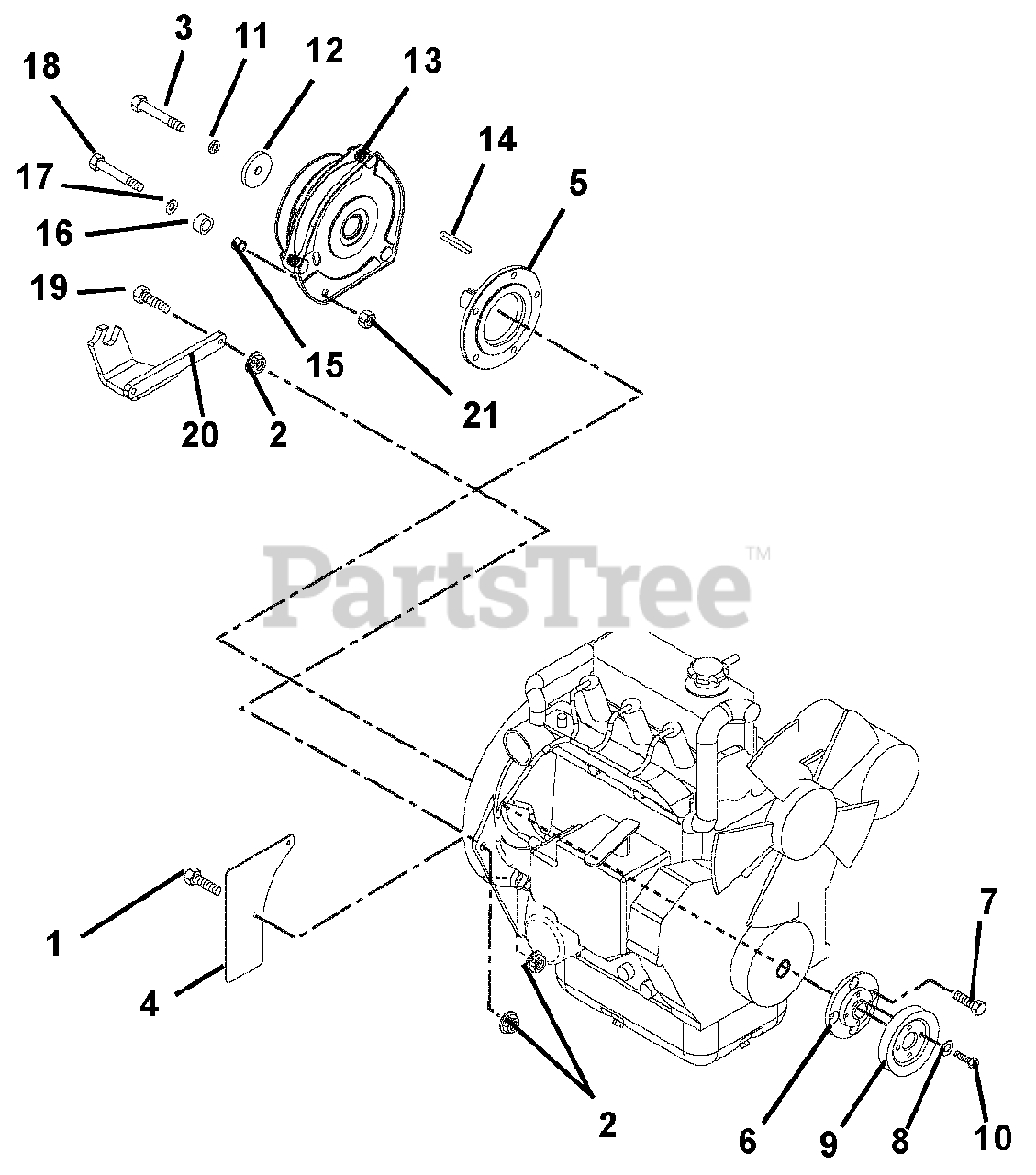

Clutch & Flywheel Parts Diagram

  • Title

1

Gravely 05947000

@BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.49

$

In Stock, Qty 10

0

2

Gravely 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

3

Gravely 05900036

BLT-HEX .44-20X2.50 G5 YZ EP80

$13.99

$

In Stock, only 1 left!

0

4

Gravely 09273851

GUARD, FLYWHEEL

$6.99

$

Usually ships in 4-12 days

0

5

Gravely 00447200

SHAFT, STUB (BRIGGS-DIESEL)

$

$

Not available

6

Gravely 09265600

ADAPTER, SHEAVE (DIESEL)

$96.99

$

Usually ships in 4-12 days

0

7

Gravely 05978700

BLT, FSCHS M8-1.25X25

$3.99

$

Usually ships in 4-12 days

0

8

Gravely 06308400

@WSHR-LK .25X.062 REG YWZC
(Superseded to 06401009)

$0.99

$

In Stock, Qty 16

0

9

Gravely 07328100

SHEAVE, POLY V 1.000 X 3.25

$

$

Not available

10

Gravely 05946800

@BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$0.99

$

In Stock, Qty 7

0

11

Gravely 06309300

@WSHR-LK .44X.109 REG YWZC
(Superseded to 06300121)

$2.99

$

In Stock, only 1 left!

0

12

Gravely 06443600

WSHR-FL-STL .469X2.00X.25 YWZC
(Superseded to 06401111)

$6.99

$

In Stock, Qty 18

0

13

Gravely 00458200

CLUTCH, OGURA GT3.5

$646.99

$

Usually ships in 4-12 days

0

14

Gravely 06610300

KEY .25X.25X2.25

$2.99

$

In Stock, Qty 12

0

15

Gravely 01529600

SPACER .375 X .625 X .500

$

$

Not available

16

Gravely 07500006

BUMPER,RUBBER .62X1.0X.51 LG

$5.99

$

Usually ships in 4-12 days

0

17

Gravely 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

18

Gravely 05948700

@BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

19

Gravely 05947500

@BLT-HEX .31-18X1.25 GR5 YWZC
(Superseded to 05901803)

$2.49

$

In Stock, only 2 left!

0

20

Gravely 00449551

BRKT,CLUTCH STOP (DIESEL)
(Superseded to 04638451)

$46.99

$

Usually ships in 4-12 days

0

21

Gravely 06535900

NUT-HEX-JAM .375-16 YWZC
(Superseded to 06500910)

$0.99

$

In Stock, only 4 left!

0
