992215 (PM 260H XDZ) - Gravely Pro-Master 60" Zero-Turn Mower, 27hp Daihatsu (SN: 000101 - 002999) Deck, Discharge Chute, Anti-Scalp Rollers & Belt Covers Parts Diagram

Pro-Master 60" Zero-Turn Mower, 27hp Daihatsu

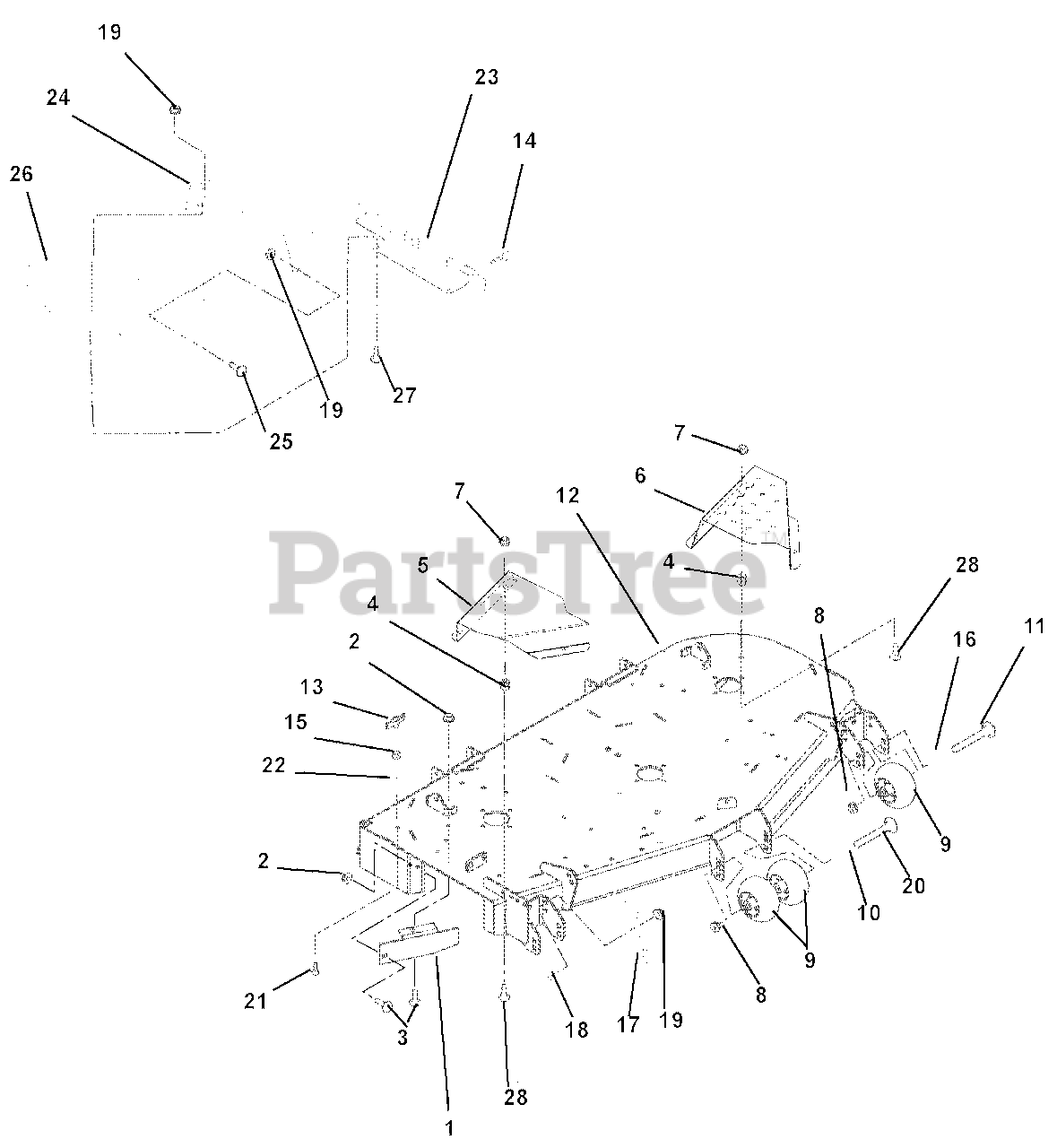

Deck, Discharge Chute, Anti-Scalp Rollers & Belt Covers Parts Diagram

  • Title

1

Gravely 00374153

60" DISCHARGE BAFFLE - RED

Note: (215)

$39.99

$

In Stock, only 1 left!

0

Gravely 00442453

72" DISCHARGE BAFFLE - RED

Note: (216)

$55.99

$

Usually ships in 4-12 days

0

2

Gravely 06545400

@NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.49

$

In Stock, Qty 8

0

3

Gravely 06216100

@BLT-RDHDSQNK .31-18X1.00 G5YZ
(Superseded to 06200231)

$1.49

$

In Stock, Qty 13

0

4

Gravely 07001525

NUT-HEAVY HEX .38-16 YWZC
(Superseded to 06500823)

$1.49

$

In Stock, Qty 8

0

5

Gravely 03982251

GUARD,RH DECK BELT,60-66

Note: (215)

$60.99

$

Usually ships in 4-12 days

0

Gravely 04051451

72" RH DECK BELT GUARD - BLACK

Note: (216)

$77.99

$

Usually ships in 4-12 days

0

6

Gravely 03977251

GUARD,LH DECK BELT,60

Note: (215)

$71.99

$

In Stock, only 2 left!

0

Gravely 04051351

72" LH DECK BELT GUARD - BLACK
(Superseded to 59228800)

Note: (216)

$118.99

$

Usually ships in 4-12 days

0

7

Gravely 06534900

@NUT-SPNLK-FLG .375-16 YWZC
(Superseded to 06500735)

$1.49

$

In Stock, Qty 15

0

8

Gravely 06500010

@NUT-LK-NYL-FLG .50-13 YWZC
(Superseded to 06500810)

$2.49

$

In Stock, Qty 20+

0

9

Gravely 03905900

ANTI-SCALP WHEEL - 5X3 CTR

$10.99

$

In Stock, Qty 20+

0

10

Gravely 00473800

SPACER, .510X.625X6.50

$20.99

$

In Stock, Qty 20+

0

11

Gravely 06225900

BLT-RDHDSQNK .50-13X5.00 GR5YZ
(Superseded to 06200505)

$5.99

$

In Stock, Qty 20+

0

12

Gravely 03996653

PM260 SIDE DISCH DECK WMT -RED
(Superseded to 59224200)

Note: (215)

$1318.99

$

Usually ships in 4-12 days

0

Gravely 03996853

PM272 SIDE DISCH DECK WMT -RED

Note: (216)

$1289.99

$

Usually ships in 4-12 days

0

13

Gravely 07534800

KNOB-CLAMPING, .312-18 NYLOC

$7.99

$

In Stock, Qty 9

0

14

Gravely 07000037

PULL PIN,.50-13THDX.310 PLNGR

$10.99

$

Usually ships in 4-12 days

0

15

Gravely 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

16

Gravely 00473700

SPACER, .510X.625X3.35

$18.99

$

In Stock, Qty 20+

0

17

Gravely 00474753

CHUTE STORAGE BRACKET - RED

$28.99

$

Usually ships in 4-12 days

0

18

Gravely 05948700

@BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

19

Gravely 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

20

Gravely 06206400

@BLT-RDHDSQNK .50-13X8.50 G5YZ
(Superseded to 06200321)

$6.99

$

In Stock, Qty 20+

0

21

Gravely 06212100

@BLT-RDHDSQNK .31-18X1.50 G5YZ
(Superseded to 06200233)

$1.49

$

In Stock, Qty 9

0

22

Gravely 07500009

BUMPER,RECESSED1.50X.63 W/.31

$5.99

$

Usually ships in 4-12 days

0

23

Gravely 00980553

WMT, 52"-60" DISCH CHUTE MTG
(Superseded to 04727953)

Note: (215)

$116.99

$

In Stock, only 1 left!

0

Gravely 00980653

WMT, 66"-72" DISCH CHUTE MTG

Note: (216)

$165.99

$

In Stock, only 1 left!

0

24

Gravely 00472353

RUBBER DISCH CHUTE SUPPORT-RED

$110.99

$

Usually ships in 4-12 days

0

25

Gravely 06223600

@BLT-RDHDSQNK .38-16X1.00 G5YZ
(Superseded to 06200313)

$2.49

$

In Stock, Qty 18

0

26

Gravely 00377800

CHUTE, RUBBER DISCHARGE

$68.99

$

In Stock, only 4 left!

0

27

Gravely 06224100

@BLT-RDHDSQNK .38-16X1.25 G5YZ
(Superseded to 06200415)

$2.49

$

In Stock, Qty 18

0

28

Gravely 05958000

@BLT-HEX .38-16X1.25 GR5 YWZC
(Superseded to 05901724)

$1.49

$

In Stock, Qty 10

0
