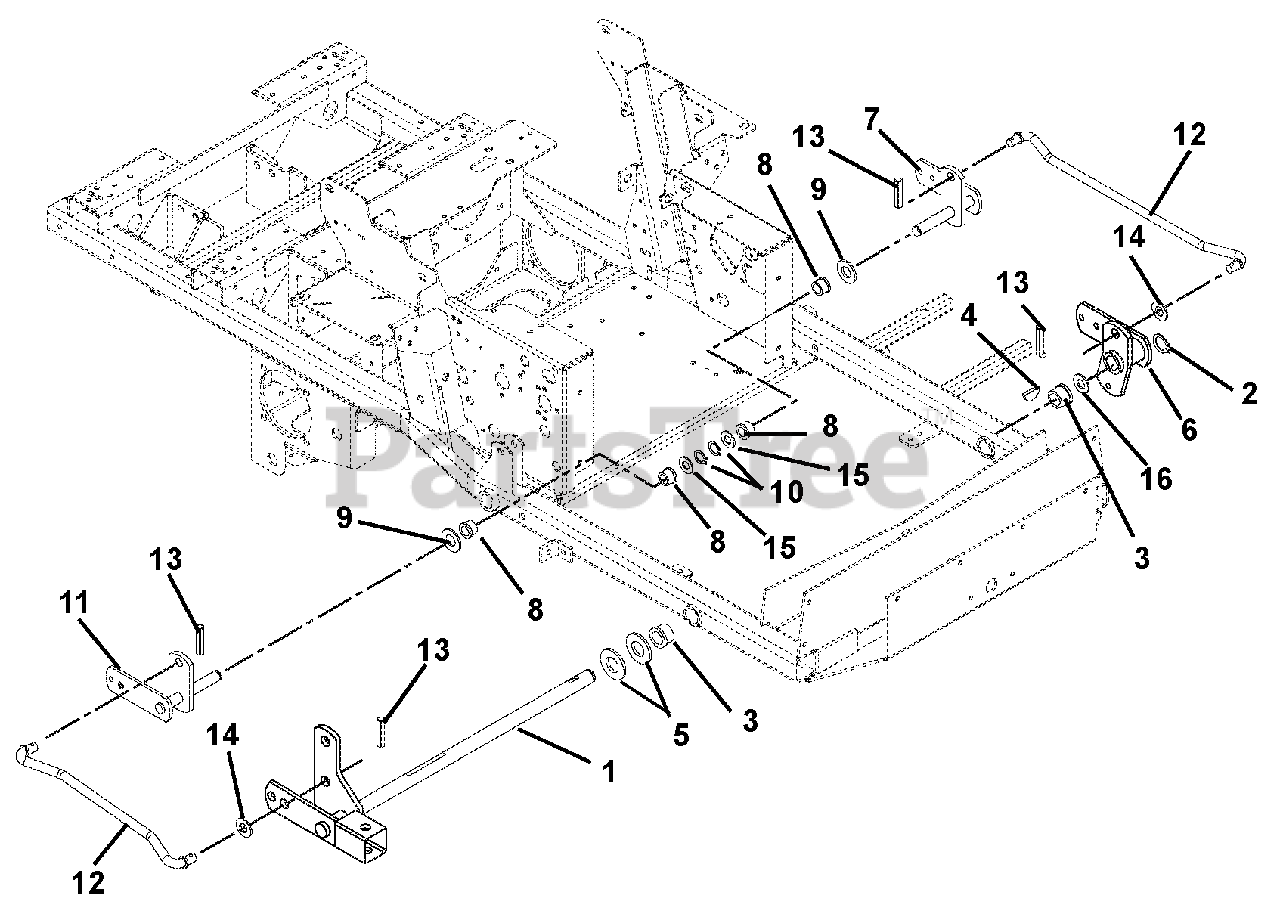

992215 (PM 260H XDZ) - Gravely Pro-Master 60" Zero-Turn Mower, 27hp Daihatsu (SN: 000101 - 002999) Hydraulic Deck Lift Parts Diagram

Pro-Master 60" Zero-Turn Mower, 27hp Daihatsu

Hydraulic Deck Lift Parts Diagram

  • Title

1

Gravely 00456000

WMT, FRONT MOWER LIFT (HYD)

$262.99

$

In Stock, only 1 left!

0

2

Gravely 05707300

RG-RTNG-EXT 1.00X.078

$2.99

$

In Stock, only 2 left!

0

3

Gravely 05500034

BSHG,1.00ID X 1.125OD X 1.50LG

$6.99

$

In Stock, only 1 left!

0

4

Gravely 06608900

KEY-WDRF .25X1.00 HRD #15

$3.99

$

In Stock, Qty 20+

0

5

Gravely 06443000

WSHR-FL-STL- 1.062X2.0X.134 YZ
(Superseded to 06401203)

$3.99

$

In Stock, only 3 left!

0

6

Gravely 00441000

WMT, LH FRONT MOWER LIFT

$97.99

$

Usually ships in 4-12 days

0

7

Gravely 04072100

WMT, LH REAR DECK LIFT ARM

$99.99

$

Usually ships in 4-12 days

0

8

Gravely 05518400

BSHG-FLG .762X1.0X.580X1.48 NY

$4.99

$

In Stock, Qty 20+

0

9

Gravely 06413400

WSHR-HDND-THRST .758X1.23X.031

$3.49

$

In Stock, only 2 left!

0

10

Gravely 05714600

RG-RTNG-EXT .689X.078

$2.49

$

In Stock, Qty 5

0

11

Gravely 04072200

WMT, RH REAR DECK LIFT ARM

$129.99

$

Usually ships in 4-12 days

0

12

Gravely 04063100

ROD-LIFT ASSIST 19.35"

$68.99

$

In Stock, only 2 left!

0

13

Gravely 05800001

PIN-ROLL .250X1.25 STNLESS STL

$2.99

$

Usually ships in 4-12 days

0

14

Gravely 06445100

WSHR-FL-STL .630X1.250X.062 YZ

$2.49

$

In Stock, only 3 left!

0

15

Gravely 06439000

@WSHR-FL-STL.812X1.50X.135YWZC
(Superseded to 06401140)

$1.49

$

In Stock, Qty 13

0

16

Gravely 06435300

WSHR-HDND-THRUST 1.00X1.55X.03

$4.99

$

In Stock, Qty 5

0
