992215 (PM 260H XDZ) - Gravely Pro-Master 60" Zero-Turn Mower, 27hp Daihatsu (SN: 000101 - 002999) Steering Levers & Linkages Parts Diagram

Pro-Master 60" Zero-Turn Mower, 27hp Daihatsu

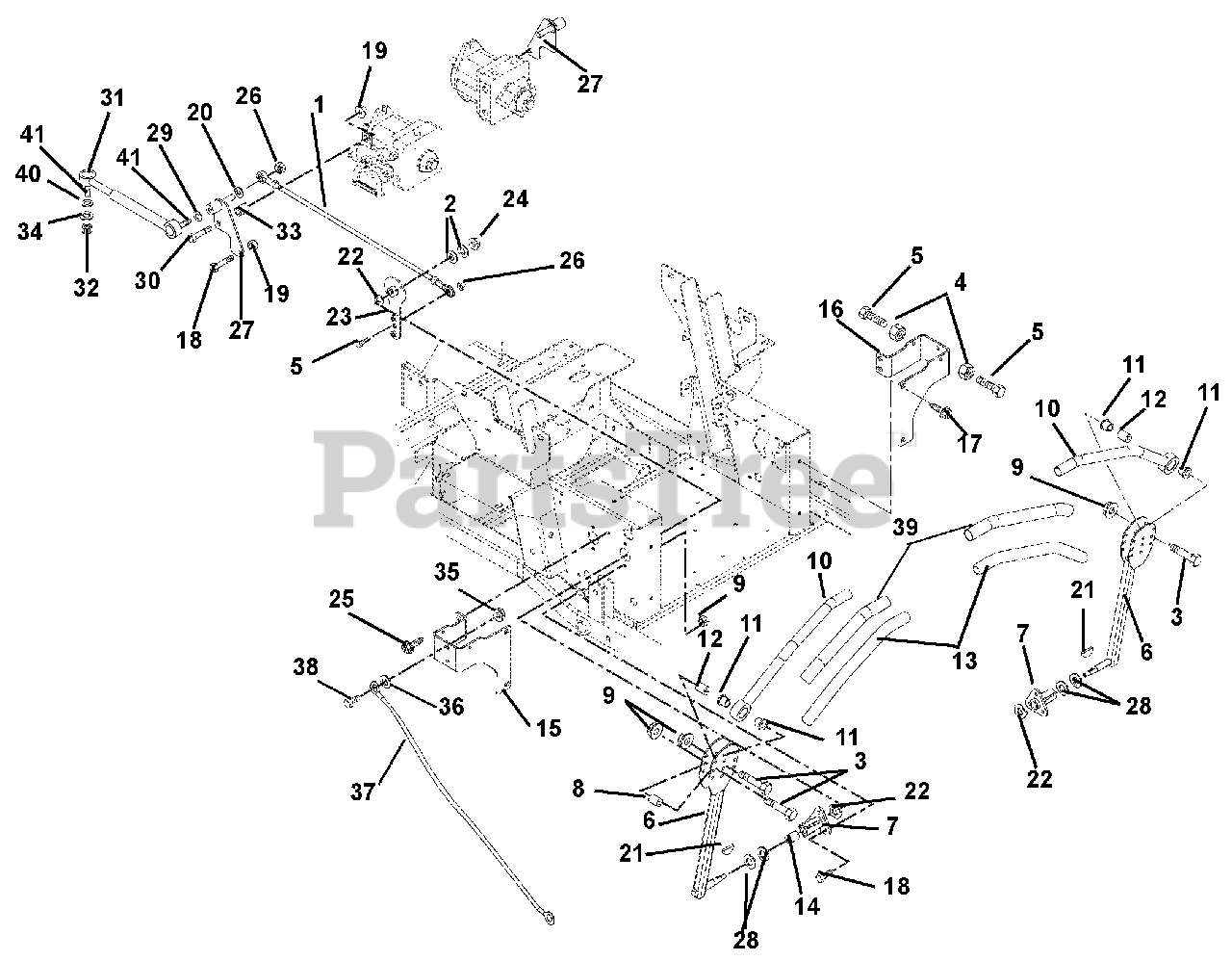

Steering Levers & Linkages Parts Diagram

  • Title

1

Gravely 00396000

ASSY,STEERING ROD .38RODX21.65

$77.99

$

Usually ships in 4-12 days

0

2

Gravely 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

3

Gravely 05957400

@BLT-HEX .31-18X1.75 GR5 YWZC
(Superseded to 05901804)

$2.99

$

In Stock, Qty 12

0

4

Gravely 06535900

NUT-HEX-JAM .375-16 YWZC
(Superseded to 06500910)

$0.99

$

In Stock, only 3 left!

0

5

Gravely 05974000

BLT-HEX .375-16X1.750 FTD YWZC
(Superseded to 05901612)

$2.99

$

Usually ships in 4-12 days

0

6

Gravely 09288651

CONTROL ARM WELDMENT - BLACK

$187.99

$

Usually ships in 4-12 days

0

7

Gravely 09294600

BUSHING, FLANGE

$34.99

$

Usually ships in 4-12 days

0

8

Gravely 05500932

BSHG, ECCENTRIC .328X.750X.970

$1.49

$

In Stock, Qty 20+

0

9

Gravely 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 09235500

HANDLE WLDMT LH

$83.99

$

In Stock, only 4 left!

0

Gravely 09235600

WLDMT, RH HANDLE

$90.99

$

In Stock, only 1 left!

0

11

Gravely 05525200

BSHG-FLG .762X1.48X.44 NYL
(Superseded to 05501517)

$2.49

$

Usually ships in 4-12 days

0

12

Gravely 09235400

SPACER .328 X .76 X 1.01

$20.99

$

In Stock, only 1 left!

0

13

Gravely 03929100

GRIP, HANDLEBAR 1.00X1.38X11.3

$15.99

$

In Stock, only 2 left!

0

14

Gravely 05436800

BSHG .625X.750X.500

$9.99

$

In Stock, only 4 left!

0

15

Gravely 09289153

STOP, STEERING - RH

$72.99

$

Usually ships in 4-12 days

0

16

Gravely 09289253

STOP, STEERING - LH

$51.99

$

Usually ships in 4-12 days

0

17

Gravely 07415400

@SCR-TAP .38-16X.75 HWH TR YWZ
(Superseded to 07400129)

$1.49

$

In Stock, Qty 20+

0

18

Gravely 05947000

@BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.49

$

In Stock, Qty 10

0

19

Gravely 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

20

Gravely 06308800

@WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$0.99

$

In Stock, Qty 15

0

21

Gravely 06608400

KEY-WDRF .13X.63 HRD#5

$2.99

$

In Stock, only 3 left!

0

22

Gravely 03704900

WAVE WASHER .640X.875X.125FH

$2.49

$

In Stock, only 4 left!

0

23

Gravely 04156300

WMT-PIVOT ARM

$146.99

$

Usually ships in 4-12 days

0

24

Gravely 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 18

0

25

Gravely 07412900

@SCR-TAP .38-16X.50 HWH TR YWZ
(Superseded to 07400126)

$1.49

$

In Stock, only 4 left!

0

26

Gravely 06537200

@NUT-LK-CTR-JAM .375-16 YWZC
(Superseded to 06500914)

$0.99

$

In Stock, Qty 19

0

27

Gravely 04096800

WMT-RTN/DAMPER/ROD END

$77.99

$

Usually ships in 4-12 days

0

28

Gravely 06436100

WSHR-FL-STL .630X1.005X.062 YZ
(Superseded to 06401117)

$0.99

$

In Stock, Qty 20+

0

29

Gravely 06308600

@WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

30

Gravely 05947500

@BLT-HEX .31-18X1.25 GR5 YWZC
(Superseded to 05901803)

$2.49

$

In Stock, only 2 left!

0

31

Gravely 03943800

DAMPER, STABILUS

$40.99

$

In Stock, only 1 left!

0

32

Gravely 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

33

Gravely 03101900

SPACER .318X.430X.375

$5.99

$

Usually ships in 4-12 days

0

34

Gravely 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

35

Gravely 06543500

@NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$0.99

$

In Stock, Qty 9

0

36

Gravely 06439500

WSHR-FL-STL .265X.50X.087YWZC
(Superseded to 06401120)

$1.49

$

In Stock, only 1 left!

0

37

Gravely 06900010

CABLE, SEAT PROP.

$50.99

$

Usually ships in 4-12 days

0

38

Gravely 05946800

@BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$0.99

$

In Stock, Qty 7

0

39

Gravely 03988300

TUBE, .88ID X 1.00OD X 10.25

$14.99

$

In Stock, only 2 left!

0

40

Gravely 06437500

WSHR-FL-STL .328X1.0X.094 YWZC
(Superseded to 06401027)

$3.99

$

In Stock, only 3 left!

0

41

Gravely 04097100

STUD-BALL-THREADED

$2.49

$

In Stock, Qty 15

0
