992312 (PM 144 Z) - Ariens Pro-Master 44" Zero-Turn Mower, 21hp Kawasaki (SN: 000101 - 000999) Frame Parts Diagram

Pro-Master 44" Zero-Turn Mower, 21hp Kawasaki

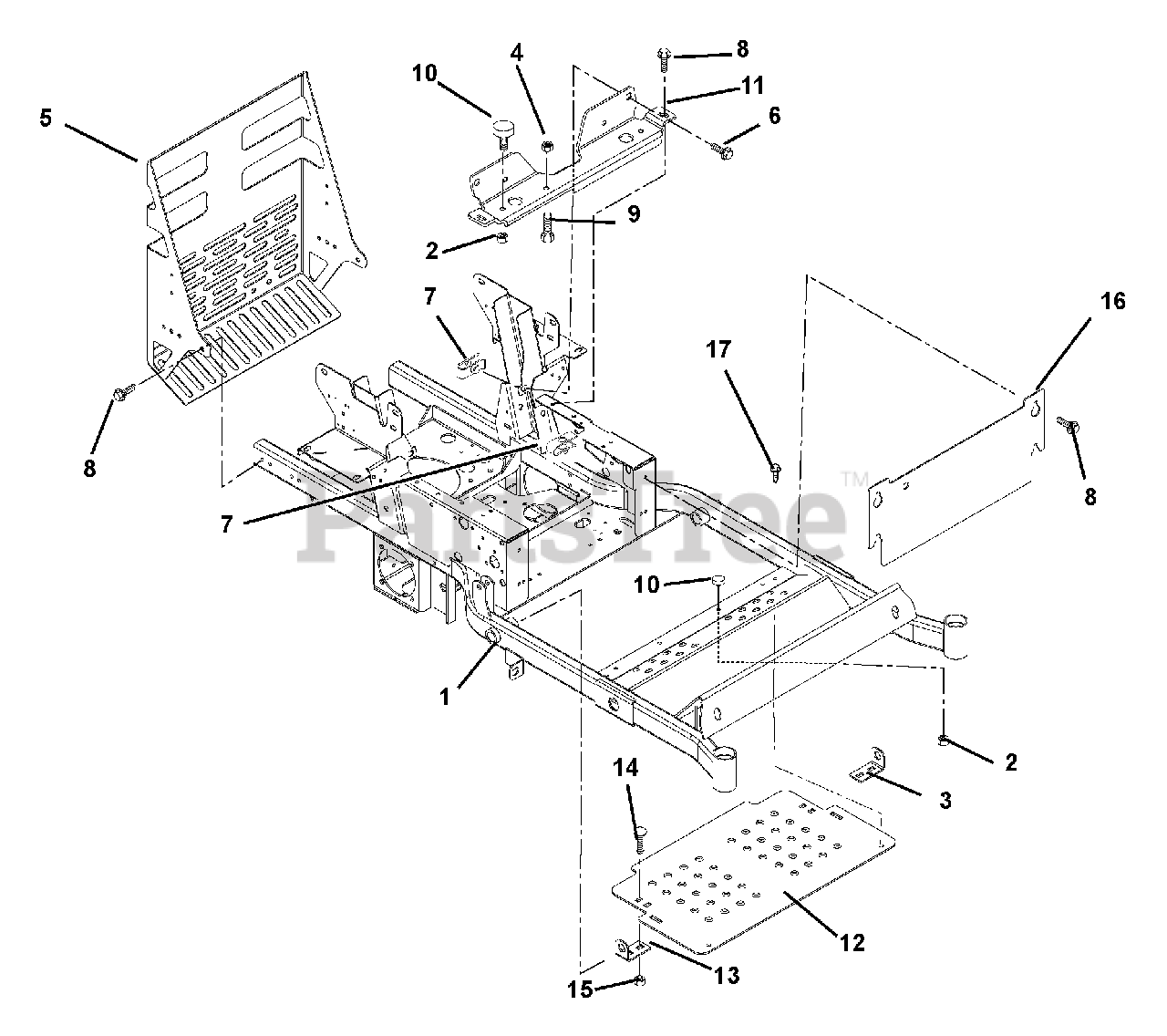

Frame Parts Diagram

  • Title

1

Ariens 00261451

WMT, 44", 48", 52" IZ FRAME

$

$

Not available

2

Ariens 06530400

@NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

$1.49

$

In Stock, only 4 left!

0

3

Ariens 09267151

HINGE, FOOTBOARD LH

$

$

Not available

4

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

5

Ariens 00271751

WMT, BUMPER W/ HEAT SHIELD

$543.99

$

Usually ships in 4-12 days

0

6

Ariens 07049900

BLT-SERHFWH .375-16X1.0 YWZC

$2.99

$

Usually ships in 4-12 days

0

7

Ariens 07053300

NUT-RTNR .375-16X.37

$3.99

$

In Stock, only 4 left!

0

8

Ariens 07412900

@SCR-TAP .38-16X.50 HWH TR YWZ
(Superseded to 07400126)

$1.49

$

In Stock, only 4 left!

0

9

Ariens 05947500

@BLT-HEX .31-18X1.25 GR5 YWZC
(Superseded to 05901803)

$2.49

$

In Stock, only 2 left!

0

10

Ariens 07533600

BUMPER, RUBBER

$14.99

$

In Stock, only 4 left!

0

11

Ariens 09283251

SEAT SUPPORT - BLACK

$109.99

$

Usually ships in 4-12 days

0

12

Ariens 00253059

PANEL, INSPECTION

$

$

Not available

13

Ariens 09267251

HINGE, FOOTBOARD RH

$12.99

$

Usually ships in 4-12 days

0

14

Ariens 06223900

@BLT-RDHDSQNK .38-16X.75 G5YZ
(Superseded to 06200312)

$1.49

$

In Stock, only 3 left!

0

15

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 9

0

16

Ariens 09297259

ACCESS PANEL - ORANGE

$22.99

$

Usually ships in 4-12 days

0

17

Ariens 07414100

@SCR-TAP .38-16X1.00 HWH TR YZ
(Superseded to 07417500)

$3.99

$

In Stock, Qty 20+

0
