992312 (PM 144 Z) - Ariens Pro-Master 44" Zero-Turn Mower, 21hp Kawasaki (SN: 001000 & Above) Hydro-Gear Hydraulic Pump 09285200 Parts Diagram

Pro-Master 44" Zero-Turn Mower, 21hp Kawasaki

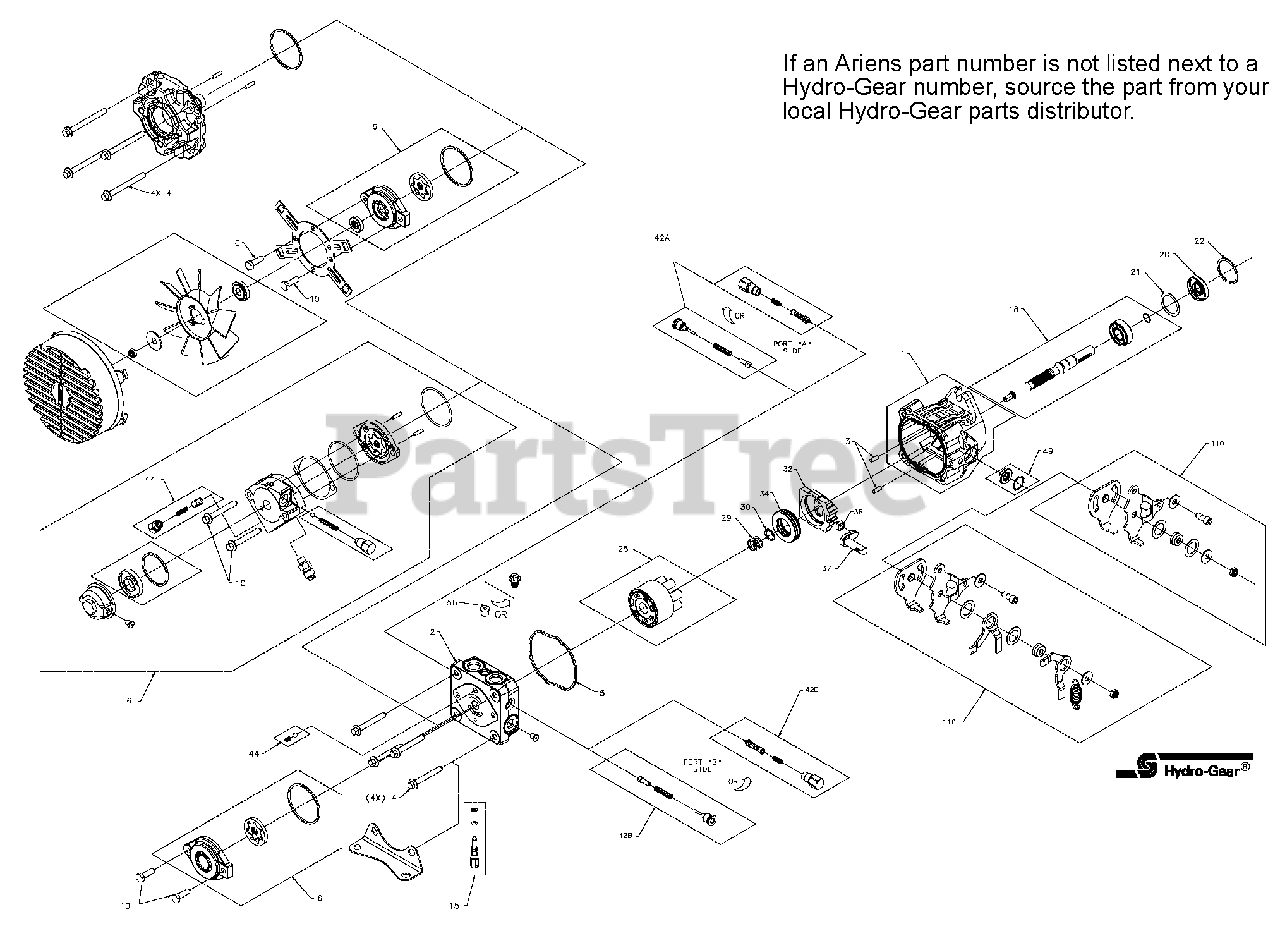

Hydro-Gear Hydraulic Pump 09285200 Parts Diagram

  • Title

1

Ariens 21543929

KIT, HSG

Note: Hydro-Gear p/n: 2003014

$

$

Not available

2

Ariens 21543873

ENDCAP

Note: Hydro-Gear p/n: 70797

$

$

Not available

3

Ariens 21543750

PIN, .219X1

Note: Hydro-Gear p/n: 52038

$

$

Not available

4

Ariens 21543775

HFHCS M8X60

Note: Hydro-Gear p/n: 50641

$

$

Not available

5

Ariens 21543824

O-RING, HSG

Note: Hydro-Gear p/n: 50969

$

$

Not available

6

Ariens 21543953

KIT, CHARGE PUMP

Note: Hydro-Gear p/n: 51232

$308.99

$

Usually ships in 4-12 days

0

10

Ariens 21543994

HHCS 5/16-18X1

Note: Hydro-Gear p/n: 2003017

$

$

Not available

15

Ariens 21543954

KIT, BYPASS VALVE

Note: Hydro-Gear p/n: 71247

$

$

Not available

18

Ariens 21543911

KIT, PUMP SHAFT

Note: Hydro-Gear p/n: 900720-3116

$211.99

$

Usually ships in 4-12 days

0

20

Ariens 21543816

SEAL, LIP 17X40X7

Note: Hydro-Gear p/n: 71248

$11.99

$

Usually ships in 4-12 days

0

21

Ariens 21543773

WASHER 1.23X1.56X.04

Note: Hydro-Gear p/n: 70620

$5.99

$

Usually ships in 4-12 days

0

22

Ariens 21543741

RING, RET 1.56 INT

Note: Hydro-Gear p/n: 51161

$6.99

$

Usually ships in 4-12 days

0

25

Ariens NS

Kit, Cylinder Block

Note: Hydro-Gear p/n: 50951

$

$

Not available

29

Ariens 08621500

SPRING. BLOCK

Note: Hydro-Gear p/n: 50329

$1.99

$

In Stock, Qty 6

0

30

Ariens 08609400

WASHER. THRUST .59 X .79 X .04

Note: Hydro-Gear p/n: 71170

$1.99

$

In Stock, only 1 left!

0

32

Ariens 08609000

SWASHPLATE. VARIABLE

Note: Hydro-Gear p/n: 2003087

$

$

Not available

34

Ariens 08609100

BEARING. THRUST 30 X 52 X 13

Note: Hydro-Gear p/n: 50551

$17.99

$

Usually ships in 4-12 days

0

37

Ariens 08610800

ARM. TRUNNION TAPERED SQUARE

Note: Hydro-Gear p/n: 50807

$57.99

$

Usually ships in 4-12 days

0

38

Ariens 08610700

GUIDE. SLOT

Note: Hydro-Gear p/n: 2000015

$

$

Not available

42

Ariens 21543923

KIT, SHOCK VALVE 200 BAR

Note: Hydro-Gear p/n: 70743

$

$

Not available

44

Ariens 21543956

KIT, CHARGE RELIEF

Note: Hydro-Gear p/n: 71361

$

$

Not available

49

Ariens 08613200

BEARING, SHAFT BALL

Note: Hydro-Gear p/n: 2513043

$

$

Not available

56

Ariens 21543993

PLUG 7/16-20 (METAL)

Note: Hydro-Gear p/n: 900511-4400

$

$

Not available

110

Ariens 21543934

RETURN KIT

Note: Hydro-Gear p/n: 70847

$62.99

$

Usually ships in 4-12 days

0

NS

Ariens 58803300

KIT, PUMP SEAL

Note: Hydro-Gear p/n: 2513043

$9.99

$

Usually ships in 4-12 days

0

NS

Ariens 21543975

KIT, AUX FILTER

Note: Hydro-Gear p/n: 2510090

$17.99

$

Usually ships in 4-12 days

0
