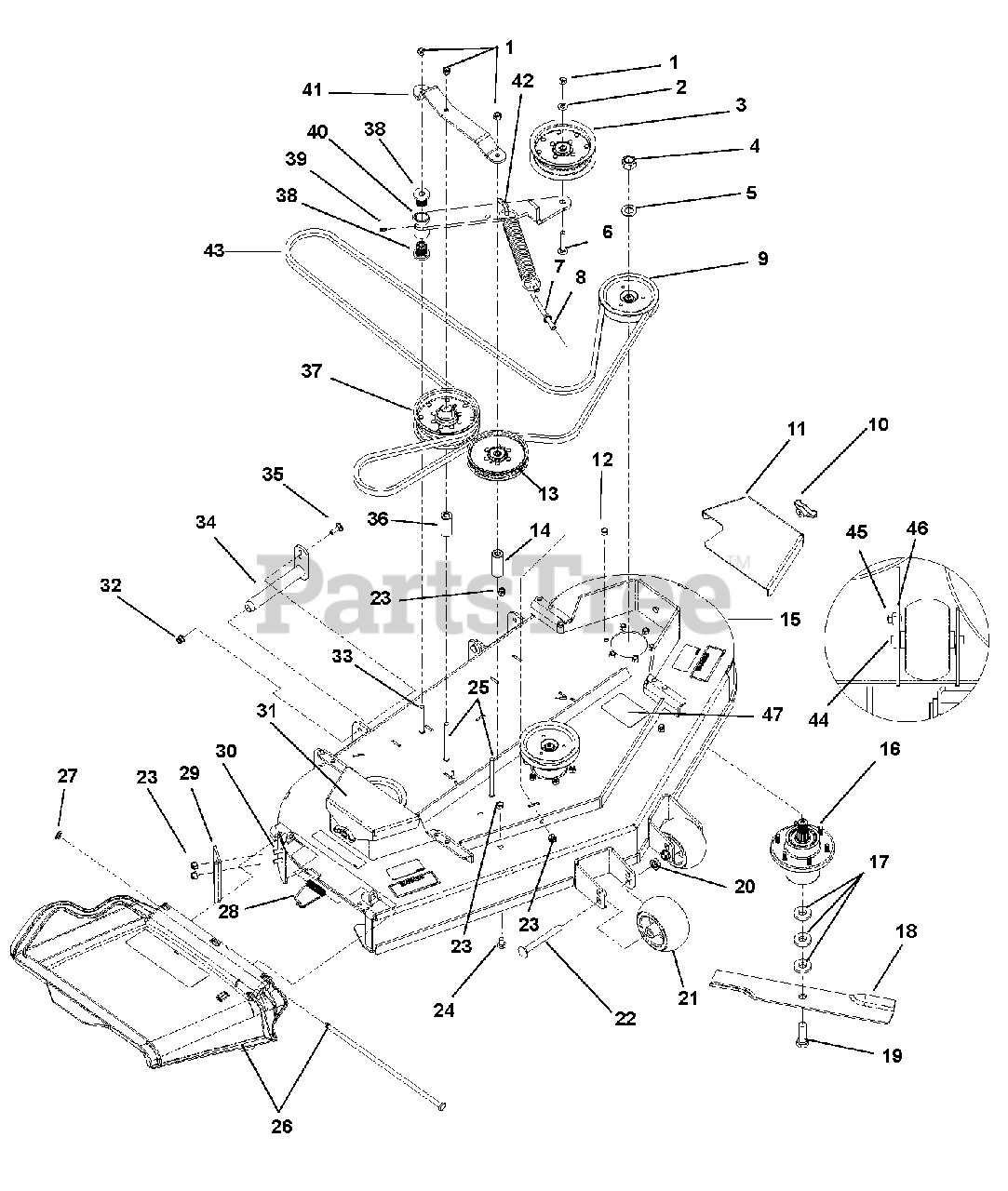

992410 - EverRide Fury ZT Zero-Turn Mower (SN: 000101 & Above) 52 inch mower deck Parts Diagram

Fury ZT Zero-Turn Mower

52 inch mower deck Parts Diagram

  • Title

1

Gravely K40003

NUT, 3/8 LOCK

$

$

Not available

2

Gravely 24H1305

WASHER, .406X.812X.065

$

$

Not available

3

Gravely D18032

PULLEY, FLAT 5.0 X.38 W/BRG
(Superseded to 07346700)

$79.99

$

In Stock, only 1 left!

0

4

Gravely 00964024

LOCKNUT, 3/4-16 CROWN C
(Superseded to 06500031)

$3.99

$

In Stock, Qty 8

0

5

Gravely 03399703

WASHER, .75X1.3125X .113

$3.99

$

In Stock, Qty 11

0

6

Gravely 03H1658

BOLT, 3/8-16X2.25 CRG 5 Y
(Superseded to 06200301)

$3.99

$

In Stock, only 2 left!

0

7

Gravely N10215

LOCKNUT, 3/8-16 WHIZ Y

$

$

Not available

8

Gravely D23058

J-BOLT, 3/8-16 X 4.00 Y

$5.99

$

Usually ships in 4-12 days

0

9

Gravely 03399702

PULLEY, SPLINE SPINDLE LSE

$75.99

$

Usually ships in 4-12 days

0

10

Gravely M119352

KNOB, LOCKING

$3.99

$

In Stock, Qty 6

0

11

Gravely 03869861

WELDMENT, BELT COVER LH 52

$

$

Not available

12

Gravely 00960502

NUT, 3/8-16 STD HEX GR5 Y

$

$

Not available

13

Gravely D28050

PULLEY, FLAT 5.00 X .375 W/BRG
(Superseded to 07352400)

$34.99

$

In Stock, only 2 left!

0

14

Gravely GDU10181

SPACER, .437 X 1.00 X 2.50 SMLS

$

$

Not available

15

Gravely 03869200

ASSY, 52 EVERRIDE DECK W/ DECALS

$

$

Not available

16

Gravely 00200260

ASSY, SPINDLE HOUSING
(Superseded to 00200262)

$250.99

$

In Stock, only 1 left!

0

17

Gravely D18055

WASHER, BLADE
(Superseded to 06401033)

$6.99

$

In Stock, only 4 left!

0

18

Gravely GDU10231

BLADE, 18.000 x .80 LIFT

$27.99

$

In Stock, Qty 20+

0

19

Gravely 00967348

BOLT, 5/8-11 X 2.00 HEX 8 Y
(Superseded to 05901725)

$5.99

$

In Stock, Qty 11

0

20

Gravely E62934

LOCKNUT 1/2 W/ FLANGE

$

$

Not available

21

Gravely TCU18744

WHEEL, GAGE

$14.99

$

In Stock, only 4 left!

0

22

Gravely 03H1853

BOLT, 1/2-13 X 4.50 CRG 5 Y

$

$

Not available

23

Gravely 00968087

LOCKNUT, 3/8-16 NYLOC Y

$

$

Not available

24

Gravely 00963033

BOLT, 3/8-16 X 3/4 CAR GR5 LNNK

$

$

Not available

25

Gravely 03H1838

BOLT, CAR 3/8-16 X 5.00

$

$

Not available

26

Gravely TCA16387

CHUTE DISCHARGE ASST #

$35.99

$

In Stock, only 2 left!

0

27

Gravely H141123

RETAINER #

$

$

Not available

28

Gravely 03393800

SPRING, DISCHARGE CHUTE

$5.99

$

Usually ships in 4-12 days

0

29

Gravely 03754061

PLATE, EXTENDER 48" HYDRO

$

$

Not available

30

Gravely 00963019

BOLT, 3/8-16 X 1.00 CRG 5 SN Y

$

$

Not available

31

Gravely 03869961

WELDMENT, BELT COVER rRH 52

$

$

Not available

32

Gravely 14M7396

LOCKNUT, FL,ISO7043,M8X1.25

$

$

Not available

33

Gravely 03H1836

BOLT, 3/8-16X3.50 CRG 5 Y

$

$

Not available

34

Gravely TCA13292

PIN, WELDED

$116.99

$

Usually ships in 4-12 days

0

35

Gravely 03M7185

BOLT, RH, SQNECK, JDS137, M8X1.25X

$

$

Not available

36

Gravely GDU10180

SPACER, .437 X 1.00 X 2.25 SMLS

$

$

Not available

37

Gravely TCA14548

PULLEY, FLAT 5.25 X .375 W/ BRG

$129.99

$

In Stock, only 1 left!

0

38

Gravely TCU14540

BRG, FLG M1 X M25 X M27 FLUTED

$14.99

$

In Stock, only 2 left!

0

39

Gravely 00959995

FTG, 1/4-28 STRGT GREASE ZERK

$3.49

$

Usually ships in 4-12 days

0

40

Gravely TCA15346

ARM, IDLER

$142.99

$

Usually ships in 4-12 days

0

41

Gravely GDU10119

STRAP, IDLER PULLEY

$

$

Not available

42

Gravely D28025

SPRING, DECK IDLER

$29.99

$

In Stock, only 2 left!

0

43

Gravely TCU16093

BELT

$180.99

$

Usually ships in 4-12 days

0

44

Gravely GDA10103

PIVOT, RETAINER WELD

$55.99

$

In Stock, Qty 7

0

45

Gravely H122207

NUT-1/4" FLANGE PREVAILING TOR

$

$

Not available

46

Gravely 00963095

BOLT, 1/4-20 X .750 CRG 5 Y
(Superseded to 06219900)

$0.99

$

In Stock, Qty 20+

0

47

Gravely GDU10262

DECAL, BELT PATH

$

$

Not available
