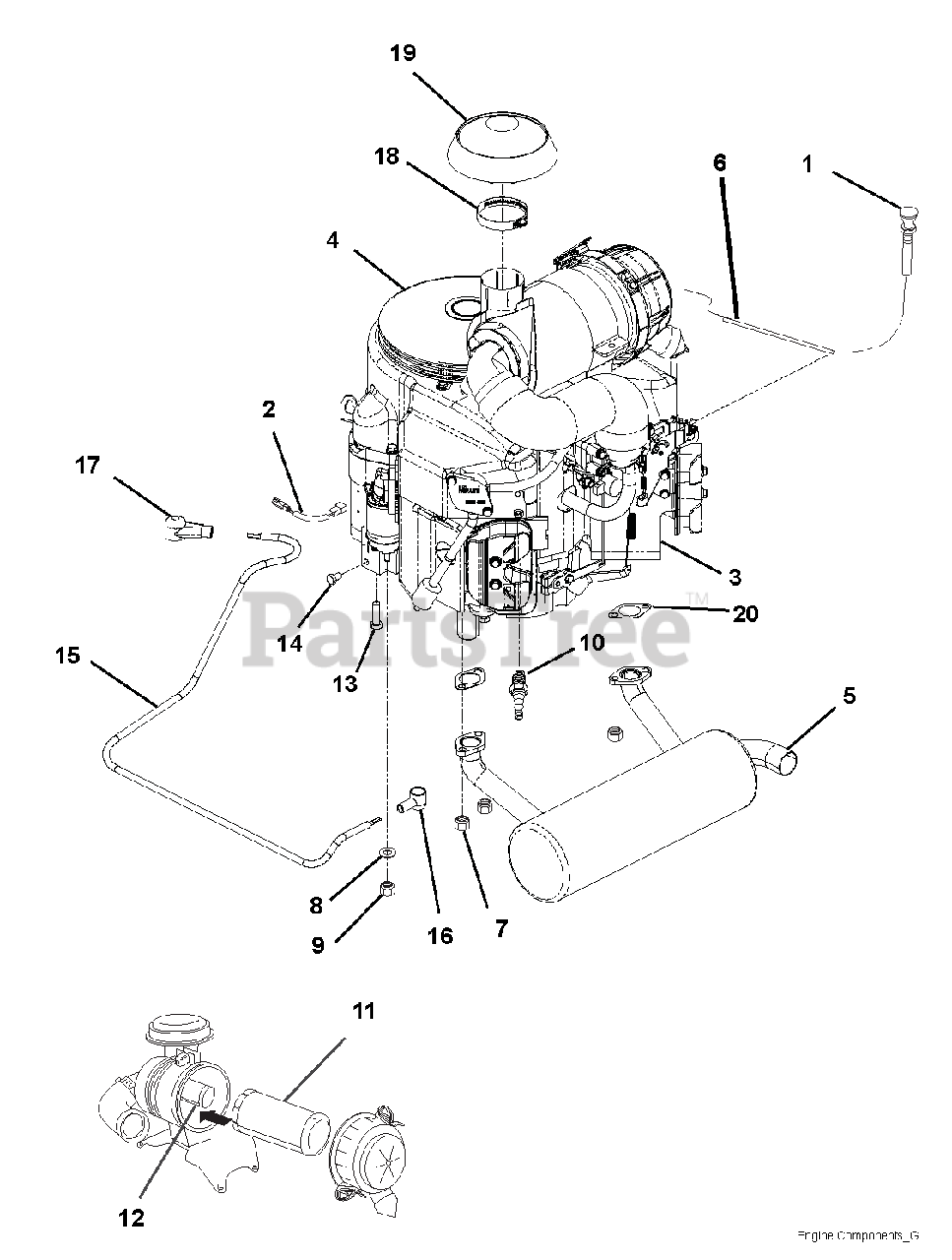

992807 (2760 S) - Ariens Pro-Zoom 60" Zero-Turn Mower, 27hp Kawasaki (SN: 000111 & Above) Engine and Exhaust Parts Diagram

Pro-Zoom 60" Zero-Turn Mower, 27hp Kawasaki

Engine and Exhaust Parts Diagram

  • Title

1

Ariens 00180273

CABLE, CHOKE 48.0"

Note: (Serial Number 101 - 2499; see page 26 for Serial Number 2500 and up

$52.99

$

In Stock, only 1 left!

0

2

Ariens 03286700

LEAD - STARTER SOLENOID

$9.49

$

In Stock, only 1 left!

0

3

Ariens 21535800

FILTER,OIL - KAW
(Superseded to 49065-0724)

$18.99

$

In Stock, Qty 20+

0

4

Ariens 08200327

ENGINE, KAWASAKI FX751 (27HP)

$

$

Not available

5

Ariens 01057000

MUFFLER - 31HP KAWASAKI VERT.

$252.99

$

Usually ships in 4-12 days

0

6

Ariens 03798600

WIRE HARNESS

Note: (see page 26-27)

$

$

Not available

7

Ariens 21549901

NUT, EXHAUST MAN. SUBARU EH

$

$

Not available

8

Ariens 06318200

WSHR-LK M8 YWZC

$3.99

$

Usually ships in 4-12 days

0

9

Ariens 00961553

NUT, M8X1.25 HEX GR8.8 Y
(Superseded to 06538600)

$1.99

$

Usually ships in 4-12 days

0

10

Ariens 21536100

PLUG, SPARK

$3.49

$

In Stock, Qty 20+

0

11

Ariens 21545400

ELEMENT-OUTER - KAWASAKI

$36.99

$

In Stock, Qty 10

0

12

Ariens 21545300

ELEMENT-INNER - KAWASAKI

$48.99

$

In Stock, Qty 12

0

13

Ariens 05900125

BLT-HEX.38-16X1.25FTHG5 EP30YZ
(Superseded to 05901507)

$2.49

$

In Stock, Qty 11

0

14

Ariens 00961281

BOLT, M8X1.25X14 HEX 8.8 Y
(Superseded to 05970001)

$3.99

$

Usually ships in 4-12 days

0

15

Ariens 03821000

CABLE, BATTERY - 42" POSITIVE

$

$

Not available

16

Ariens 07533200

BOOT, EYELET TERMINAL

$3.49

$

In Stock, only 3 left!

0

17

Ariens 00525800

BOOT, BATTERY TERMINAL-RED

$7.99

$

Usually ships in 4-12 days

0

18

Ariens 06900339

CLAMP, HOSE 2.75 DIA WORM

Note: (use with 03820900 cap)

$11.99

$

Usually ships in 4-12 days

0

Ariens 06900426

CLAMP, HOSE #36 SS 1.813-2.75

Note: (use with 04088900 cap)

$3.49

$

Usually ships in 4-12 days

0

19

Ariens 03820900

RAIN CAP, AIR CLEANER (2.5")

Note: (992222)

$68.99

$

In Stock, only 2 left!

0

Ariens 04088900

CAP, KAW 11065-7025

Note: (992220, 221)

$59.99

$

Usually ships in 4-12 days

0

20

Ariens 00191627

GASKET, MUFFLER S/O

$7.99

$

In Stock, only 2 left!

0
