992807 (2760 S) - Ariens Pro-Zoom 60" Zero-Turn Mower, 27hp Kawasaki (SN: 000111 & Above) Wheels And Brakes Parts Diagram

Pro-Zoom 60" Zero-Turn Mower, 27hp Kawasaki

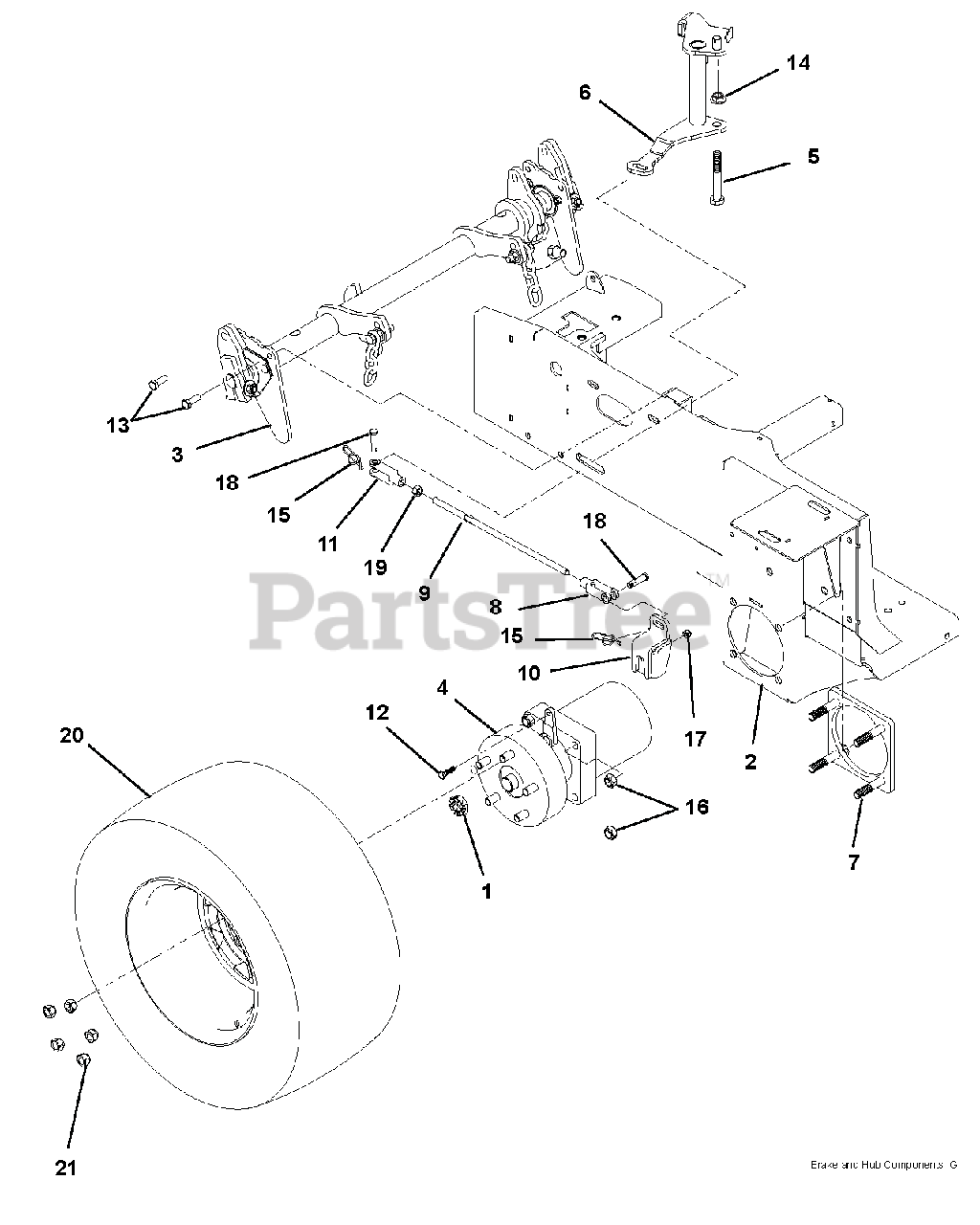

Wheels And Brakes Parts Diagram

  • Title

1

Ariens 00191625

NUT, 1-20 SPECIAL CASTLE S/O

$

$

Not available

2

Ariens 03850400

FRAME WITH DECALS ACM

$

$

Not available

3

Rear Lift Rod Assembly

Note: (See "Lift Rod" page.)

$

$

Not available

4

Ariens 00181513

MOTOR, LH HYDRO GEAR WHEEL

Note: (Serial Number 101 - 2499)

$2637.99

$

Usually ships in 4-12 days

0

4

Ariens 00180236

MOTOR, LH WHEEL

Note: (Serial Number 2500 and up)

$1048.99

$

Usually ships in 4-12 days

0

4

Ariens 00181512

MOTOR, RH HYDRO GEAR WHEEL

Note: (Serial Number 101 - 2499)

$

$

Not available

4

Ariens 00180237

MOTOR, RH WHEEL

Note: (Serial Number 2500 and up)

$1048.99

$

Usually ships in 4-12 days

0

5

Ariens 00180354

BRG, FLG .502X.629X.421

$5.99

$

Usually ships in 4-12 days

0

6

Ariens 03833951

WLDT, LH PARK BRAKE CONTROL

$93.99

$

Usually ships in 4-12 days

0

6

Ariens 03833751

WLDT, RH PARK BRAKE CONTROL

$93.99

$

Usually ships in 4-12 days

0

7

Ariens 03819751

WLDT, WHEEL MOTOR PLATE

$

$

Not available

8

Ariens 00180968

YOKE, 3/8-24 LH ADJUSTABLE

$15.99

$

Usually ships in 4-12 days

0

9

Ariens 00180981

ROD, STRAIGHT PARK BRAKE CONTR

$25.99

$

Usually ships in 4-12 days

0

10

Ariens 03976951

WLDT, BRAKE ARM EXT. PARKER

$63.99

$

Usually ships in 4-12 days

0

11

Ariens 00251907

YOKE, 3/8-24 RH ADJUSTABLE

$15.99

$

Usually ships in 4-12 days

0

12

Ariens 05947700

@BLT-HEX .25-20X1.00 GR5 YWZC
(Superseded to 05901639)

$1.49

$

In Stock, Qty 7

0

13

Ariens 05948700

@BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

14

Ariens 05965500

@BLT-HEX .50-13X2.75 GR5 YWZC
(Superseded to 05901720)

$4.99

$

Usually ships in 4-12 days

0

15

Ariens 00967353

RING, RUE .375 X .054 X 1.254

$2.49

$

Usually ships in 4-12 days

0

16

Ariens 06537300

@NUT-HEX .50-13 YWZC
(Superseded to 06500814)

$3.99

$

In Stock, only 2 left!

0

17

Ariens 06531000

@NUT-LK-NYL .250-20 YWZC
(Superseded to 06500832)

$4.99

$

In Stock, only 2 left!

0

18

Ariens 06820300

PIN-CLEV .375X1.38X1.14 YWZC

$

$

Not available

19

Ariens 06522900

NUT-HEX .375-24 YWZC
(Superseded to 06500940)

$2.49

$

In Stock, only 1 left!

0

20

Ariens 00180235

TIRE/WHEEL ASSY, 24X11.50-12

$262.99

$

In Stock, only 1 left!

0

20

Ariens 07100916

TIRE/WHEEL ASSY, 24X12-12
(Superseded to 07101117)

$319.99

$

Usually ships in 4-12 days

0

20

Ariens 07100208

TIRE, 24X11.50-12
(Superseded to 07101041)

$227.99

$

Usually ships in 4-12 days

0

20

Ariens 00181342

RIM, 12X8.5
(Superseded to 00180235)

$262.99

$

In Stock, only 1 left!

0

21

Ariens 06553000

NUT, 1/2-20 LUG, GRADE 5
(Superseded to 06517600)

$1.49

$

In Stock, Qty 20+

0
