994109 (2048 FL) - Gravely Pro-Stance 48" Stand-On Mower, Floating Deck, 20hp Kawasaki (SN: 000101 & Above) Frame, Traction Deck and Console Parts Diagram

Pro-Stance 48" Stand-On Mower, Floating Deck, 20hp Kawasaki

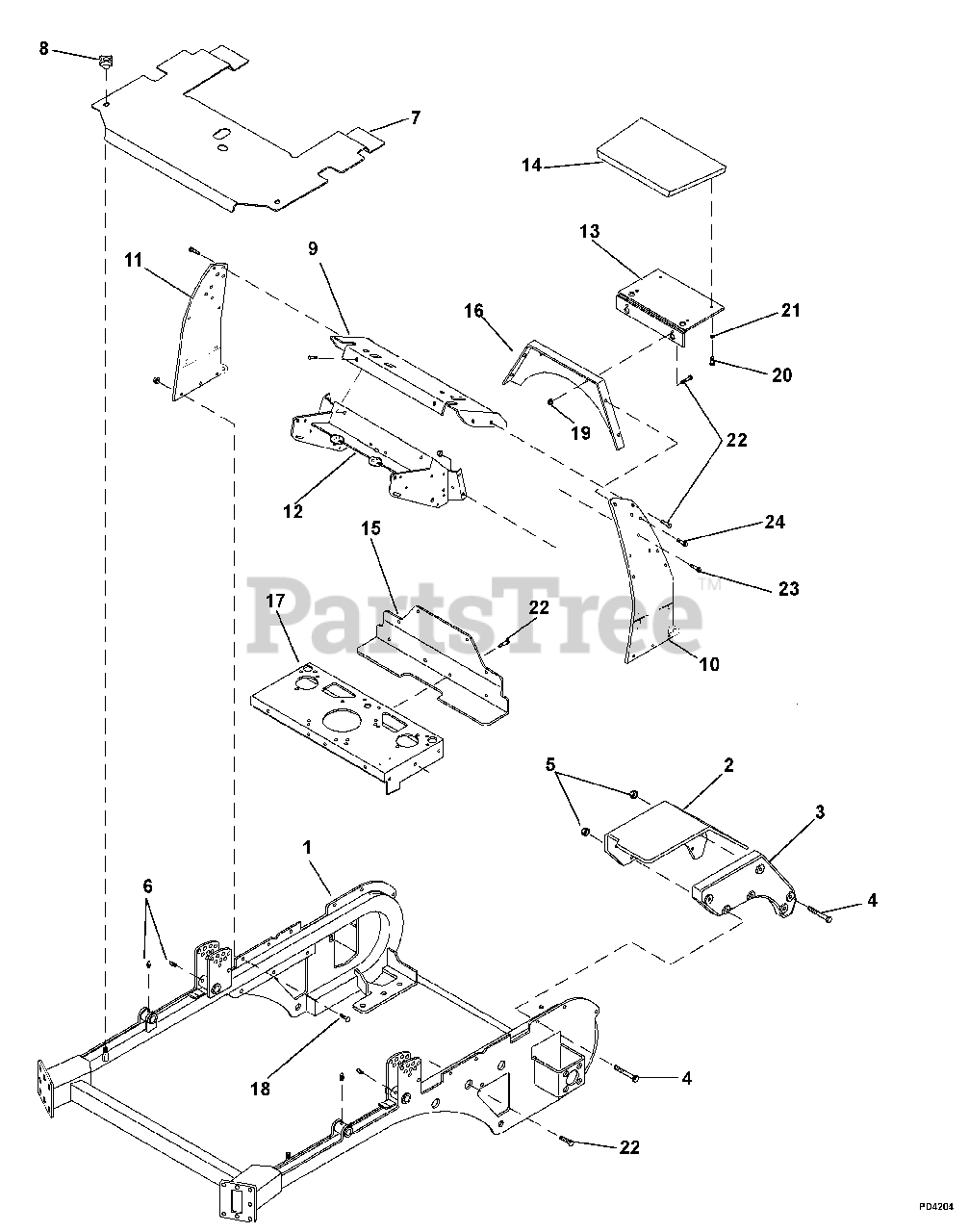

Frame, Traction Deck and Console Parts Diagram

  • Title

1

Gravely 56323004

Frame

$

$

Not available

2

Gravely 00200212

Fender, Left

$

$

Not available

Gravely 00200211

Fender, Right

$

$

Not available

3

Gravely 00200038

Weight

$

$

Not available

4

Gravely 06006038

Screw, Hex, Flat M8 x 1.25 x 70 10.9

$

$

Not available

5

Gravely 06542300

Nut, Locking, Flange M8-1.25
(Superseded to 06500725)

$3.49

$

Usually ships in 4-12 days

0

6

Gravely 00959995

Zerk, Grease, Fitting, 1/4-28 Strgt

$3.49

$

Usually ships in 4-12 days

0

7

Gravely 50546011

Assy, 48 Shield w/Decals (994109)

Note: (994109)

$

$

Not available

Gravely 50546006

Assy, 52 Shield w/Decals (994110)

Note: (994110)

$

$

Not available

8

Gravely M119352

Knob, 3/8-16 Insert

$3.99

$

In Stock, Qty 6

0

9

Gravely 50546002

Console, ProStance w/Decals Flat

$

$

Not available

10

Gravely 00200093

Weldment, Left Hand Side Support

$

$

Not available

11

Gravely 03823653

Weldment, Right Hand Side Support

$

$

Not available

12

Gravely 03784953

Weldment, Float Console

$

$

Not available

13

Gravely D15368

Plate, Thigh Pad

$

$

Not available

14

Gravely 00200152

Thigh Pad, Black

$

$

Not available

15

Gravely 03773310

Shield

$

$

Not available

16

Gravely D15305

Weldment, Thigh Plate

$85.99

$

Usually ships in 4-12 days

0

17

Gravely 50546005

Engine Deck w/Decals Gravely

$

$

Not available

18

Gravely 06200015

Carriage Bolt, M10 x 1.5 x 25

$

$

Not available

19

Gravely 06500702

Nut, Flat, Nyloc M10 x 1.50 GR10

$

$

Not available

20

Gravely 05946800

Bolt, Hex, .25-20 x .75
(Superseded to 05901716)

$0.99

$

In Stock, Qty 10

0

21

Gravely 06308400

Washer, Lock .25 x .062
(Superseded to 06401009)

$0.99

$

In Stock, Qty 16

0

22

Gravely 06006032

Screw, Hex, Flat M10 x 1.5 x 20 Full Thread

$

$

Not available

23

Gravely 06006033

Screw, Hex, Flat M10 x 1.5 x 25 Full Thread

$

$

Not available

24

Gravely T34037

Screw, Cap Special

$

$

Not available
