994401 (EFZKA1934S) - Ariens Scorpion 34" Stand-On Mower, 19hp Kawasaki (SN: 000101 & Above) Console Parts Diagram

Scorpion 34" Stand-On Mower, 19hp Kawasaki

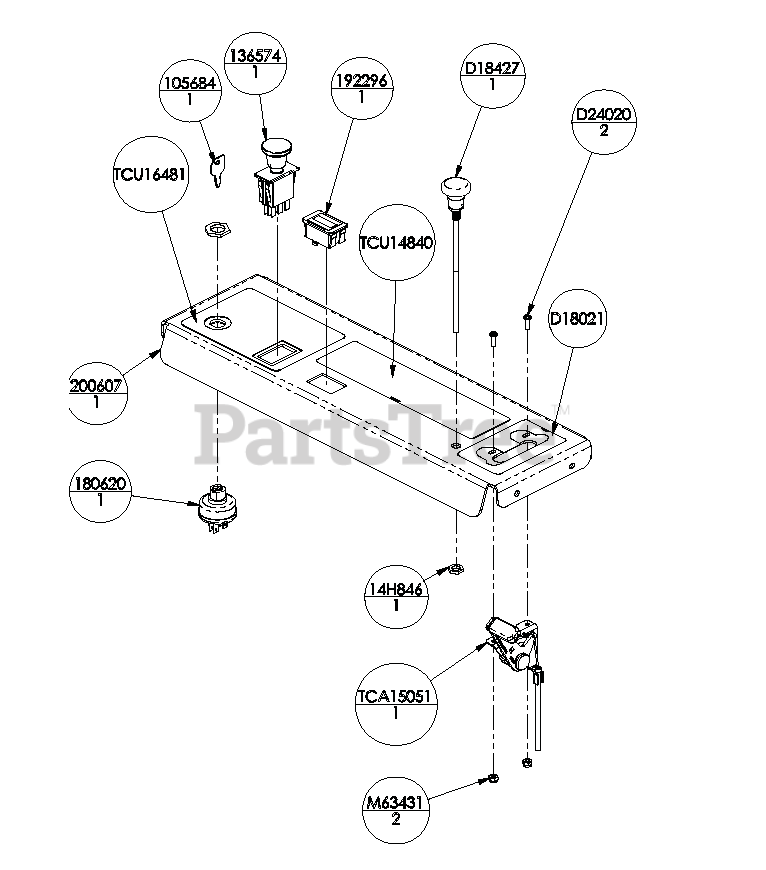

Console Parts Diagram

  • Title

1

Ariens D18021

DECAL, THROTTLE

$27.99

$

Usually ships in 4-12 days

0

2

Ariens D18427

CABLE, CHOKE 31.0"

$51.99

$

Usually ships in 4-12 days

0

3

Ariens D24020

SCREW,8-32X1/2

$

$

Not available

4

Ariens M63431

#8.32 ELASTIC STOP NUT

$

$

Not available

5

Ariens TCA15051

CABLE, THROTLE 48.0"

$21.99

$

Usually ships in 4-12 days

0

6

Ariens TCU14840

DECAL, GENERAL CAUTION

$

$

Not available

7

Ariens TCU16481

DECAL, PTO & KEY SWITCH

$

$

Not available

8

Ariens 00105684

KEY-IGN SERVICE ONLY
(Superseded to 02460700)

Note: SERVICE ONLY

$7.99

$

In Stock, Qty 16

0

9

Ariens 00136574

SWITCH, PTO ENGAGEMENT

$28.99

$

Usually ships in 4-12 days

0

10

Ariens 14H846

NUT, 3/8 UNF HEX GR 5 ZN

$

$

Not available

11

Ariens 00180620

SWITCH, KEY - 3 POSITION

$35.99

$

In Stock, only 4 left!

0

12

Ariens 00192296

METER, HOUR - LCD ALT. (ENM)

Note: (ENM)

$68.99

$

Usually ships in 4-12 days

0

13

Ariens 03731502

CONTROL PANEL W/DECALS EVRRIDE

$

$

Not available
