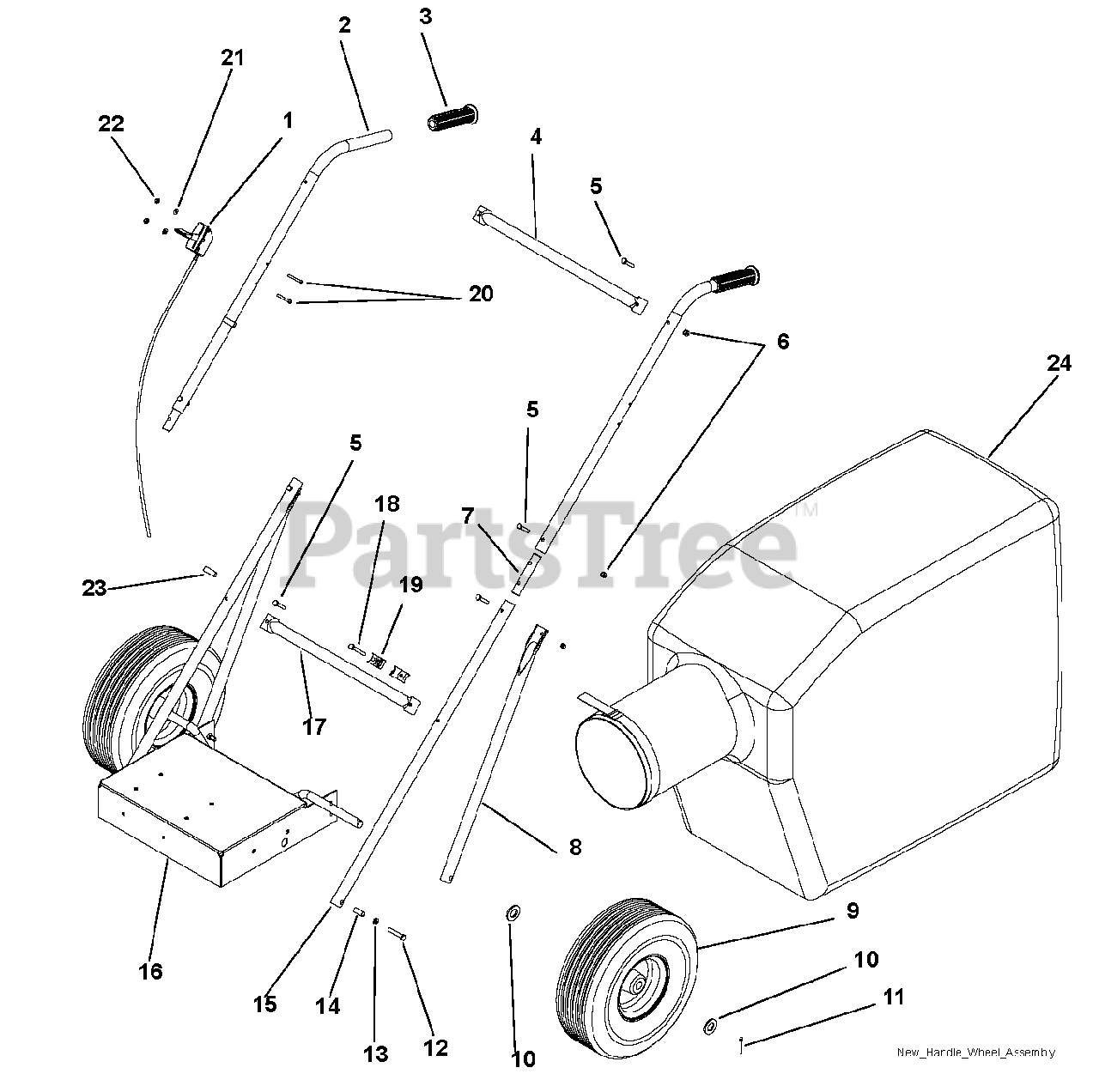

995810 - Parker Vac 35 Push Vacuum (SN: 000101 & Above) Handle And Wheel Assembly Parts Diagram

Vac 35 Push Vacuum

Handle And Wheel Assembly Parts Diagram

  • Title

1

Gravely P83-25-B-41

Cable, Throttle Assembly

$47.99

$

Usually ships in 4-12 days

0

2

Gravely 04166468

Upper Handle Vac, 35

$93.99

$

Usually ships in 4-12 days

0

3

Gravely P80-232-A

Grip Handle Black

$

$

Not available

4

Gravely P81-04-B

Tube, Upper

$

$

Not available

5

Gravely 05952500

Bolt, Hex .25-20 X 1.50
(Superseded to 05901739)

$1.49

$

In Stock, Qty 8

0

6

Gravely 06531000

Nut, Locking, Nylon 1/4-20
(Superseded to 06500832)

$4.99

$

In Stock, only 2 left!

0

7

Gravely 04187900

Handle Adapter VAC, 35

$

$

Not available

8

Gravely P88-48-C

Handle Back Brace

$107.99

$

Usually ships in 4-12 days

0

9

Gravely PSA-231-B

Wheel Assembly

$

$

Not available

10

Gravely 06439000

Washer, Flat Steel .812 X 1.50 X 1.35
(Superseded to 06401140)

$1.49

$

In Stock, Qty 13

0

11

Gravely 06712700

Pin, Center .18 X 1.25 Extended Prong Square Cut

$1.99

$

In Stock, Qty 5

0

12

Gravely 05957400

Bolt, Hex .31-18 X 1.75
(Superseded to 05901804)

$2.99

$

In Stock, Qty 12

0

13

Gravely 06308600

Washer, Locking .31 X .078 Regular
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

14

Gravely P80-238-A

Bushing .437 OD X 1.00 LONG

$

$

Not available

15

Gravely 04166968

Lower Handle VAC, 35

$82.99

$

Usually ships in 4-12 days

0

16

Gravely 04072068

Chasis Weldment VAC, 35

$178.99

$

Usually ships in 4-12 days

0

17

Gravely P81-58-B

Crossbar Brace

$34.99

$

Usually ships in 4-12 days

0

18

Gravely 05956700

Bolt, Hex .25-20 X 2.25
(Superseded to 05901636)

$2.49

$

Usually ships in 4-12 days

0

19

Gravely P350186-1

Buide, Rope

$

$

Not available

20

Gravely 06100207

Screw, 10-24 X .75 PAN PHL MAC Stainless Steel

$3.49

$

Usually ships in 4-12 days

0

21

Gravely 06442700

Washer, Flat Steel .219 X .50 X .049
(Superseded to 06401123)

$0.99

$

Usually ships in 4-12 days

0

22

Gravely 06536000

Nut Locking Nylon 10-24 with Insert
(Superseded to 06500915)

$0.99

$

In Stock, only 3 left!

0

23

Gravely P80-276-A

Snap Mount

$3.99

$

Usually ships in 4-12 days

0

24

Gravely 79525400

Collection Bag

$193.99

$

In Stock, only 1 left!

0

Gravely P63-304-A

Bag Hook (Not Shown)

Note: (Not Shown)

$

$

Not available

Gravely P350138

Switch Foot (Not Shown)

Note: (Not Shown)

$13.99

$

Usually ships in 4-12 days

0
