996205 (JSV 3400) - Gravely Atlas JSV Utility Vehicle (SN: 000101 & Above) Chassis, Cab Frame Parts Diagram

Atlas JSV Utility Vehicle

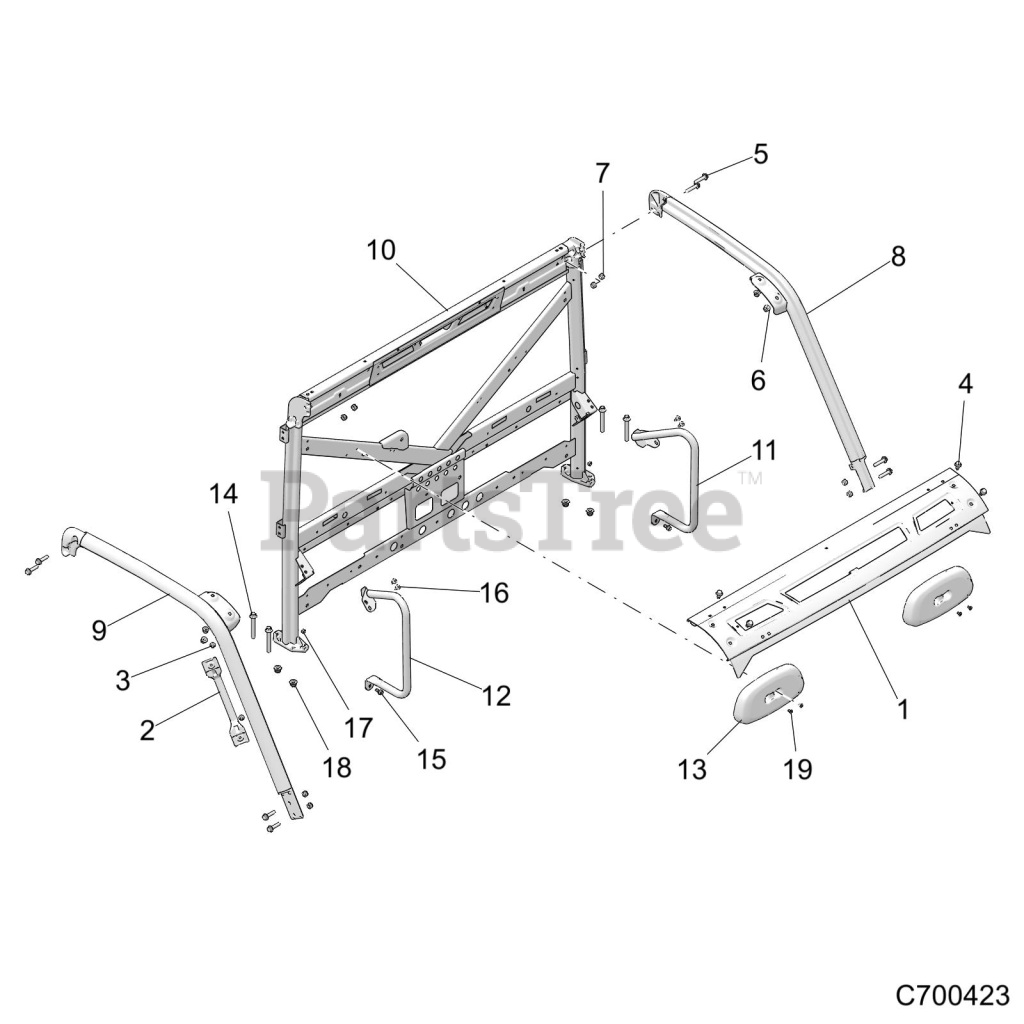

Chassis, Cab Frame Parts Diagram

  • Title
1

21902363

PLATE-WNDSHLD MNT,UPR,BLK

$

$

Not available

2

Gravely 21900576

HANDLE-GRAB,ROPS,BLK

$

$

Not available

3

Gravely 21900396

BOLT-M8X1.25X20,HXFLG,TAP/R-OD

$

$

Not available

4

Gravely 21902364

SCR-HXFL-M10X1.5X20 10.9 RIE P

$

$

Currently unavailable

5

Gravely 21902365

SCR-HXFL-M10X1.5X45 10.9 RIE

$

$

Currently unavailable

6

Gravely 21902366

NUT-HXFL-M10X1.5 8 ZB3 NYL

$

$

Currently unavailable

7

Gravely 21902367

NUT-HEX-M10X1.5 10 ZB3 NYL

$

$

Currently unavailable

8

Gravely 21902555

WELD-CAB FRAME,FRT,LH,M.BLK

$

$

Currently unavailable

9

Gravely 21902556

WELD-CAB FRAME,FRT,RH,M.BLK

$

$

Currently unavailable

10

Gravely 21902376

WELD-CAB FRAME,REAR,M.BLK

$

$

Currently unavailable

11

Gravely 21902377

WELD-BOLSTER,LH, M.BLK

$

$

Currently unavailable

12

Gravely 21902378

WELD-BOLSTER,RH,M.BLK

$

$

Currently unavailable

13

Gravely 21902379

HEADREST-BLK

$

$

Currently unavailable

14

Gravely 21902380

SCR-HXFL-M12X1.75X90 10.9 ZPC

$

$

Currently unavailable

15

Gravely 21900422

SCR-HXFL-M8X1.25X20 8.8 ZOD P3

$

$

Not available

16

Gravely 21900447

SCR-TXTH-M6X1.0X25 RIE

$

$

Not available

17

Gravely 21902381

NUT-HEX-M8X1.25 10 P&O

$

$

Currently unavailable

18

Gravely 21900471

NUT-HXFL M12X1.75 NYLOC ZOD

$

$

Not available

19

Gravely 21900496

RIVET(50)

$

$

Not available
