996205 (JSV 3400) - Gravely Atlas JSV Utility Vehicle (SN: 000101 & Above) Engine, Cylinder Head and Valves Parts Diagram

Atlas JSV Utility Vehicle

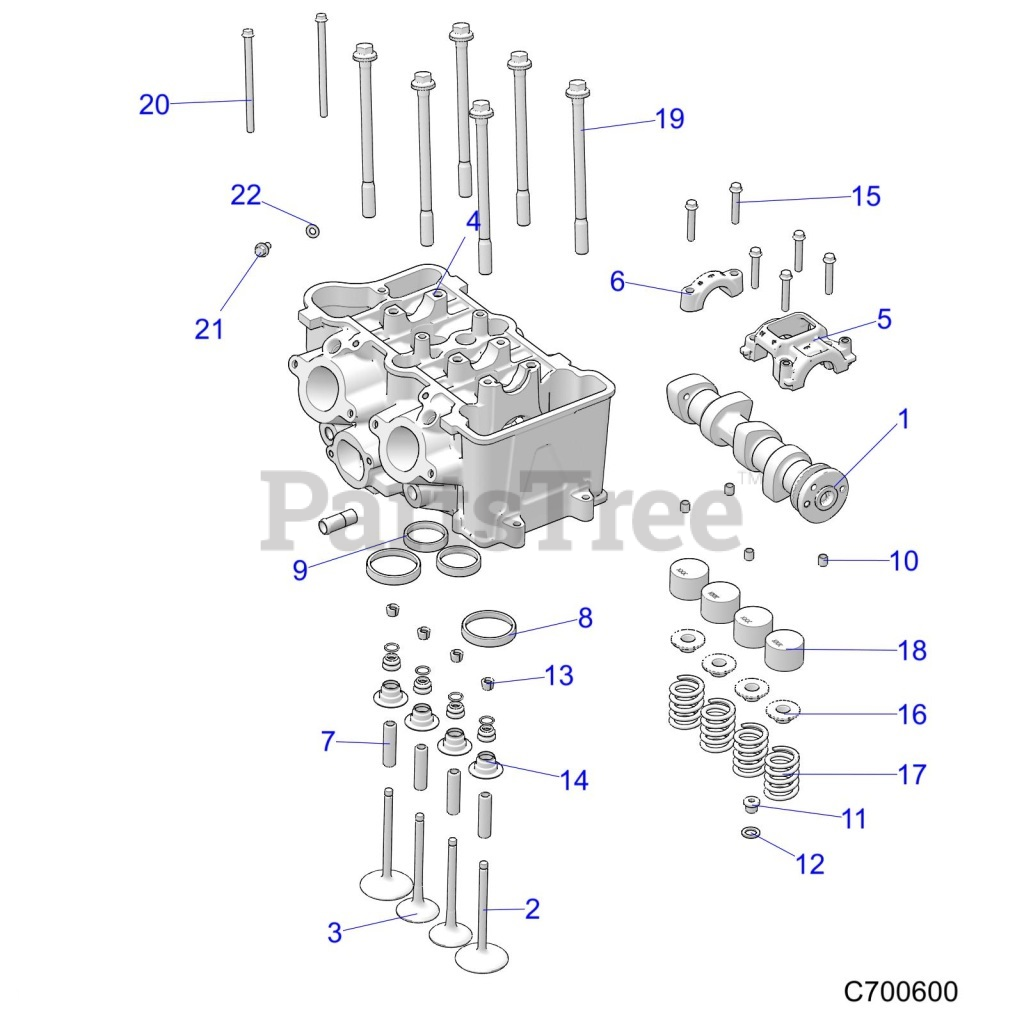

Engine, Cylinder Head and Valves Parts Diagram

  • Title
1

Gravely 21902431

ASM-CAMSHAFT,2CYL,SOHC

$

$

Currently unavailable

2

Gravely 21902432

VALVE-INTAKE,47MM

$

$

Currently unavailable

3

Gravely 21902433

VALVE-EXHAUST,38MM

$

$

Currently unavailable

4

Gravely 21902436

ASM-HEAD,MACH,SOHC

Note: [INCL. 4-9]

$

$

Currently unavailable

5

Gravely 21902685

CARRIER-CAMSHAFT,SOHC

Note: [INCL. IN CYLINDER HEAD ASM.]

$

$

Currently unavailable

6

Gravely 21902686

CARRIER-CAMSHAFT,SOHC,PTO

Note: [INCL. IN CYLINDER HEAD ASM.]

$

$

Currently unavailable

7

Gravely 21902687

GUIDE-VALVE,EXHAUST

Note: [INCL. IN CYLINDER HEAD ASM.]

$

$

Currently unavailable

8

Gravely 21902688

SEAT-VALVE,INTAKE

Note: [INCL. IN CYLINDER HEAD ASM.]

$

$

Currently unavailable

9

Gravely 21902689

SEAT-VALVE,EXHAUST

Note: [INCL. IN CYLINDER HEAD ASM.]

$

$

Currently unavailable

10

Gravely 21902440

DWL-HOL,M8X8

$

$

Currently unavailable

11

Gravely 21902437

PLUG-M10X1.0

$

$

Currently unavailable

12

Gravely 21902438

WSHR-10.3X16X1.5 CU

$

$

Currently unavailable

13

Gravely 21902435

KEEPER-VALVE

$

$

Currently unavailable

14

Gravely 21902434

SEAL-VALVE STEM,SPRING SEAT

$

$

Currently unavailable

15

Gravely 21902439

SCR-HXFL M6X1.0X35 10.9

$

$

Currently unavailable

16

Gravely 21902442

RETAINER-VALVE SPRING

$

$

Currently unavailable

17

Gravely 21902443

SPRING-VALVE

$

$

Currently unavailable

18

Gravely 21902690

TAPPET, VALVE, GRADED, 4.400

$

$

Currently unavailable

18

Gravely 21902691

TAPPET, VALVE, GRADED, 4.425

$

$

Currently unavailable

18

Gravely 21902692

TAPPET, VALVE, GRADED, 4.450

$

$

Currently unavailable

18

Gravely 21902693

TAPPET, VALVE, GRADED, 4.475

$

$

Currently unavailable

18

Gravely 21902694

TAPPET, VALVE, GRADED, 4.500

$

$

Currently unavailable

18

Gravely 21902695

TAPPET, VALVE, GRADED, 4.525

$

$

Currently unavailable

18

Gravely 21902696

TAPPET, VALVE, GRADED, 4.550

$

$

Currently unavailable

18

Gravely 21902697

TAPPET, VALVE, GRADED, 4.575

$

$

Currently unavailable

18

Gravely 21902698

TAPPET, VALVE, GRADED, 4.600

$

$

Currently unavailable

18

Gravely 21902699

TAPPET, VALVE, GRADED, 4.625

$

$

Currently unavailable

18

Gravely 21902701

TAPPET, VALVE, GRADED, 4.650

$

$

Currently unavailable

18

Gravely 21902702

TAPPET, VALVE, GRADED, 4.675

$

$

Currently unavailable

18

Gravely 21902703

TAPPET, VALVE, GRADED, 4.700

$

$

Currently unavailable

18

Gravely 21902704

TAPPET, VALVE, GRADED, 4.725

$

$

Currently unavailable

18

Gravely 21902705

TAPPET, VALVE, GRADED, 4.750

$

$

Currently unavailable

18

Gravely 21902706

TAPPET, VALVE, GRADED, 4.775

$

$

Currently unavailable

18

Gravely 21902707

TAPPET, VALVE, GRADED, 4.800

$

$

Currently unavailable

18

Gravely 21902708

TAPPET, VALVE, GRADED, 4.825

$

$

Currently unavailable

18

Gravely 21902709

TAPPET, VALVE, GRADED, 4.850

$

$

Currently unavailable

18

Gravely 21902710

TAPPET, VALVE, GRADED, 4.875

$

$

Currently unavailable

18

Gravely 21902711

TAPPET, VALVE, GRADED, 4.900

$

$

Currently unavailable

18

Gravely 21902712

TAPPET, VALVE, GRADED, 4.925

$

$

Currently unavailable

18

Gravely 21902713

TAPPET, VALVE, GRADED, 4.950

$

$

Currently unavailable

18

Gravely 21902714

TAPPET, VALVE, GRADED, 4.975

$

$

Currently unavailable

18

Gravely 21902715

TAPPET, VALVE, GRADED, 5.000

$

$

Currently unavailable

18

Gravely 21902716

TAPPET, VALVE, GRADED, 5.025

$

$

Currently unavailable

18

Gravely 21902717

TAPPET, VALVE, GRADED, 5.050

$

$

Currently unavailable

18

Gravely 21902718

TAPPET, VALVE, GRADED, 5.075

$

$

Currently unavailable

18

Gravely 21902719

TAPPET, VALVE, GRADED, 5.100

$

$

Currently unavailable

18

Gravely 21902720

TAPPET, VALVE, GRADED, 5.125

$

$

Currently unavailable

18

Gravely 21902721

TAPPET, VALVE, GRADED, 5.150

$

$

Currently unavailable

18

Gravely 21902722

TAPPET, VALVE, GRADED, 5.175

$

$

Currently unavailable

18

Gravely 21902723

TAPPET, VALVE, GRADED, 5.200

$

$

Currently unavailable

18

Gravely 21902724

TAPPET, VALVE, GRADED, 5.225

$

$

Currently unavailable

18

Gravely 21902725

TAPPET, VALVE, GRADED, 5.250

$

$

Currently unavailable

18

Gravely 21902726

TAPPET, VALVE, GRADED, 5.275

$

$

Currently unavailable

18

Gravely 21902727

TAPPET, VALVE, GRADED, 5.300

$

$

Currently unavailable

18

Gravely 21902728

TAPPET, VALVE, GRADED, 5.325

$

$

Currently unavailable

18

Gravely 21902729

TAPPET, VALVE, GRADED, 5.350

$

$

Currently unavailable

18

Gravely 21902730

TAPPET, VALVE, GRADED, 5.375

$

$

Currently unavailable

18

Gravely 21902731

TAPPET, VALVE, GRADED, 5.400

$

$

Currently unavailable

18

Gravely 21902732

TAPPET, VALVE, GRADED, 5.425

$

$

Currently unavailable

18

Gravely 21902733

TAPPET, VALVE, GRADED, 5.450

$

$

Currently unavailable

19

SCR-HXFL,M11X1.25X150 10.9 SEM

$

$

Not available

20

$

$

Not available

21

Gravely 21902453

SCR-M6X1.0X13,SL/HX/FL-Z,BLEED

$

$

Currently unavailable

22

Gravely 21901510

WASHER-FLAT,6.15X12X1MM-AL

$

$

Currently unavailable
