99944200418 - Echo Blade Conversion Kit Barrier Bar, Shield, Shoulder Strap Parts Diagram

Blade Conversion Kit

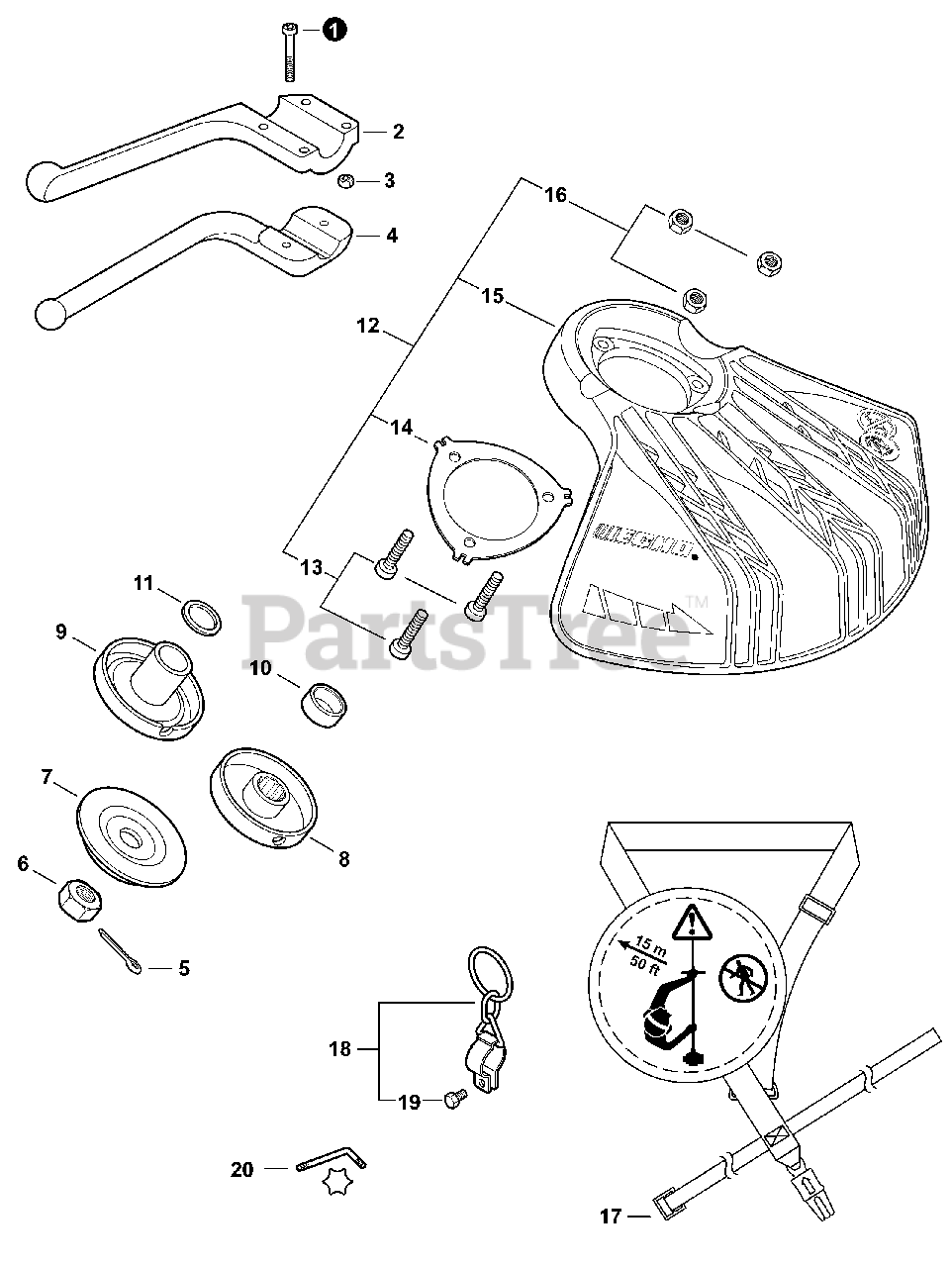

Barrier Bar, Shield, Shoulder Strap Parts Diagram

  • Title

1

Echo V805000060

BOLT, TORX 5×35

$0.99

$

In Stock, Qty 20+

0

2

Echo 35164351730

BAR, BARRIER

$6.49

$

Usually ships in 2-4 days

0

3

Echo 90050000005

NUT M5

$0.99

$

In Stock, Qty 20+

0

4

Echo C405000170

BAR, BARRIER

$5.99

$

Usually ships in 2-4 days

0

5

Echo 90030020022

PIN, COTTER 2×22

$0.99

$

In Stock, Qty 20+

0

6

Echo 90051100010

NUT 10

$1.49

$

In Stock, Qty 20+

0

7

Echo C535000150

PLATE, ADAPTOR - LOWER

$9.49

$

In Stock, Qty 20+

0

8

Echo C535000160

PLATE, ADAPTOR - UPPER

$10.99

$

In Stock, only 3 left!

0

9

Echo C535000330

PLATE, ADAPTOR - UPPER

$16.99

$

In Stock, Qty 6

0

10

Echo 61031507130

SPACER 11.8×15×9

$3.99

$

In Stock, Qty 15

0

11

Echo V376002000

SPACER

$1.49

$

In Stock, only 2 left!

0

12

Echo P021050510

DEBRIS SHIELD KIT - BLADE

Note: Includes Items 13-16

$23.99

$

Usually ships in 2-4 days

0

13

Echo V805000170

BOLT, TORX 5×25

$0.99

$

In Stock, Qty 20+

0

14

Echo C552000240

PLATE, SHIELD

$2.49

$

In Stock, Qty 20+

0

15

Echo C550000760

SHIELD, DEBRIS - BLADE

$14.99

$

Usually ships in 2-4 days

0

16

Echo 90056250005

NUT, LOCK M5

$0.99

$

In Stock, Qty 20+

0

17

Echo C062000310

HARNESS, SHOULDER
(Superseded to C062000690)

$21.99

$

In Stock, Qty 5

0

18

Echo P021046740

HANGER SET, HARNESS
(Superseded to C646000060)

$3.49

$

In Stock, Qty 20+

0

19

Echo V805000140

BOLT, TORX 5×12

$0.99

$

In Stock, Qty 20+

0

20

Echo X605000060

WRENCH, ALLEN T27 80×30

$2.49

$

In Stock, Qty 20+

0
