99988800130 - Echo Liquid Pump 99988800130 Liquid Pump Parts Diagram

Liquid Pump

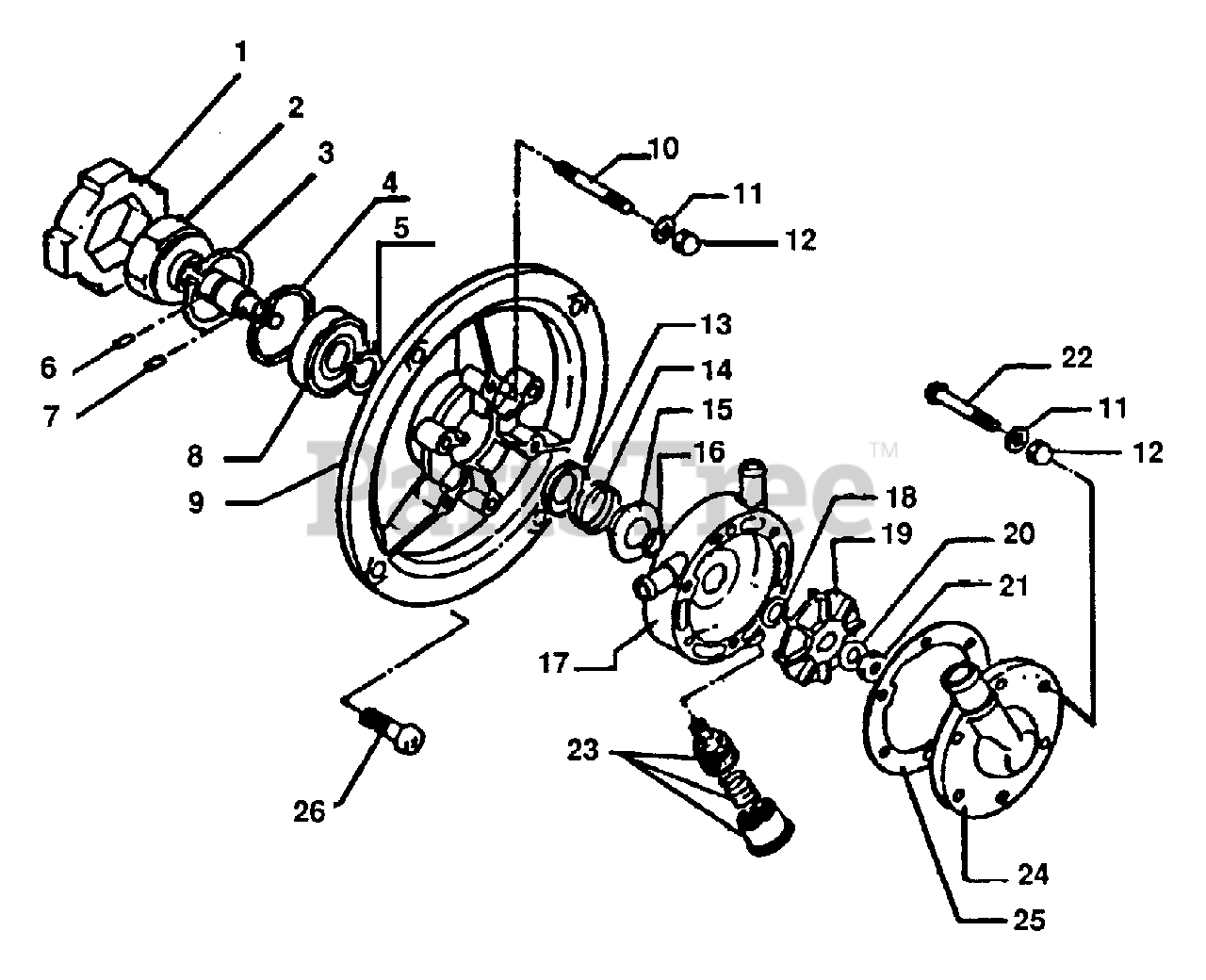

99988800130 Liquid Pump Parts Diagram

  • Title

1

Echo 60101001110

CONNECTOR
(Superseded to Discontinued)

$

$

Not available

2

Echo 40010501110

SHAFT, PUMP
(Superseded to Discontinued)

$

$

Not available

3

Echo 90070100030

RING, RETAINING - 30
(Superseded to Discontinued)

$

$

Not available

4

Echo 90070200032

RING, RETAINING - 32

$1.99

$

In Stock, Qty 20+

0

5

Echo 90070100012

RING, RETAINING - 12

$0.99

$

In Stock, Qty 15

0

6

Echo 40011400210

PIN
(Superseded to Discontinued)

$

$

Not available

7

Echo 40011300210

PIN
(Superseded to Discontinued)

$

$

Not available

8

Echo 90081406201

BEARING, BALL - 6201
(Superseded to 9405406201)

$11.99

$

Usually ships in 2-4 days

0

9

Echo 40091002810

BASE, PURGE
(Superseded to Discontinued)

$

$

Not available

10

Echo 40091100910

STUD
(Superseded to Discontinued)

$

$

Not available

11

Echo 90060000004

WASHER - 4

$0.99

$

In Stock, Qty 17

0

12

Echo 40091200910

NUT - 4 - CAP

$1.49

$

Usually ships in 2-4 days

0

13

Echo 40011800910

SEAT, SPRING
(Superseded to Discontinued)

$

$

Not available

14

Echo 40011700910

SPRING
(Superseded to Discontinued)

$

$

Not available

15

Echo 40011500910

SEAL, OIL
(Superseded to Discontinued)

$

$

Not available

16

Echo 90072000009

O-RING - 9
(Superseded to Discontinued)

$

$

Not available

17

Echo 40020500910

BODY, PUMP
(Superseded to Discontinued)

$

$

Not available

18

Echo 40011100210

WASHER
(Superseded to Discontinued)

$

$

Not available

19

Echo 40011000910

IMPELLER
(Superseded to Discontinued)

$

$

Not available

20

Echo 90060000006

WASHER - 6

$0.99

$

In Stock, Qty 20+

0

21

Echo 90050400006

NUT - 6
(Superseded to Discontinued)

$

$

Not available

22

Echo 90022004038

SCREW - 4X38
(Superseded to Discontinued)

$

$

Not available

23

Echo 88000001111

GREASE CUP ASSY
(Superseded to Discontinued)

$

$

Not available

24

Echo 40021300910

LID
(Superseded to Discontinued)

$

$

Not available

25

Echo 40021200910

GASKET, PUMP
(Superseded to Discontinued)

$

$

Not available

26

Echo 90024206015

SCREW - 6X15

$0.99

$

Usually ships in 2-4 days

0
