A 2701 - Briggs & Stratton Pressure Washer Pumps Pump #93360 (1500PSI) 2.0GPM Parts Diagram

Pressure Washer Pumps

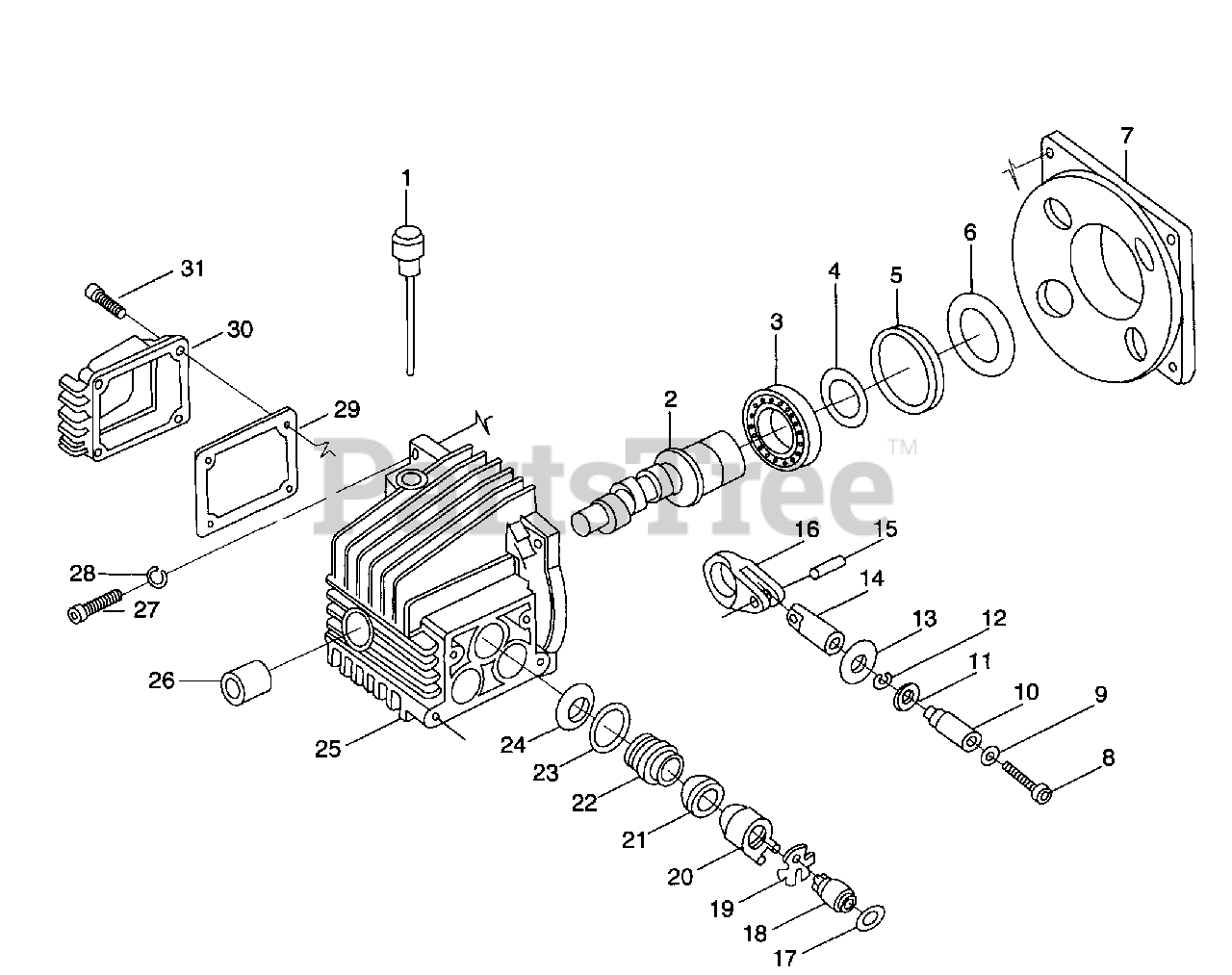

Pump #93360 (1500PSI) 2.0GPM Parts Diagram

  • Title

Briggs & Stratton 93360

Complete Pump Assy.

$

$

Not available

1

Briggs & Stratton 15593360P

Oil Dipstick
(Superseded to 15593360PGS)

$17.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 17693360P

Shaft 3/4"

$

$

Currently unavailable

3

Briggs & Stratton 16093360P

Bearing
(Superseded to 16093360PGS)

$36.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 15993360P

Circlip

$

$

Not available

5

Briggs & Stratton 15893360P

Circlip

$

$

Currently unavailable

6

Briggs & Stratton 15793360P

Seal
(Superseded to 15793360PGS)

$12.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 17493360P

Flange
(Superseded to 17493360PGS)

$45.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 16893360P

Screw

$

$

Not available

9

Briggs & Stratton 16993360P

Washer

$

$

Not available

10

Briggs & Stratton 17093360P

Piston

$

$

Not available

11

Briggs & Stratton 16793360P

Disc Separator

$

$

Not available

12

Briggs & Stratton 11893360P

O-Ring
(Superseded to 11893360PGS)

$4.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 16593360P

Seal
(Superseded to 16593360PGS)

$20.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 16493360P

Piston Guide
(Superseded to 16493360PGS)

$25.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 16293360P

Piston Pin

$

$

Currently unavailable

16

Briggs & Stratton 16393360P

Con Rod
(Superseded to 16393360PGS)

$16.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 10387627P

O-Ring
(Superseded to 10387627PGS)

$4.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 10287627P

Complete Valve
(Superseded to 10287627PGS)

$16.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 13793360P

Disc
(Superseded to 13793360PGS)

$7.49

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 13893360P

Support Ring
(Superseded to 13893360PGS)

$5.49

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 13993360P

Support Ring Gasket
(Superseded to 13993360PGS)

$86.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 17093360P

Piston Guide

$

$

Not available

23

Briggs & Stratton 10493360P

O-Ring
(Superseded to 10493360PGS)

$4.49

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 10393360P

Gasket
(Superseded to 10393360PGS)

$13.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 15693360P

Pump Housing

$

$

Currently unavailable

26

Briggs & Stratton 14993360P

Roller Bearing
(Superseded to 14993360PGS)

$36.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 17293360P

Screw

$

$

Not available

28

Briggs & Stratton 17393360P

Washer

$

$

Not available

29

Briggs & Stratton 15093360P

Plate Gasket

$

$

Currently unavailable

30

Briggs & Stratton 15193360P

Rear Plate

$

$

Currently unavailable

31

Briggs & Stratton 15293360P

Screw

$

$

Not available

Briggs & Stratton 50093360P

Valves

Note: Including item No.(s) 12, 10, 9

$

$

Currently unavailable

Briggs & Stratton 50193360P

Water Seals
(Superseded to 50193360PGS)

Note: Including item no.(s) 24, 23, 19, 20, 21

$20.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 50087627P

Valves
(Superseded to 50087627PGS)

Note: Including item no.(s) 18, 17

$81.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 50293360P

Oil Seals

Note: Including item No.(s) 29, 6, 13, 12

$

$

Not available
