A 2701 - Briggs & Stratton Pressure Washer Pumps Pump #97745 (1500PSI) 2.0GPM Parts Diagram

Pressure Washer Pumps

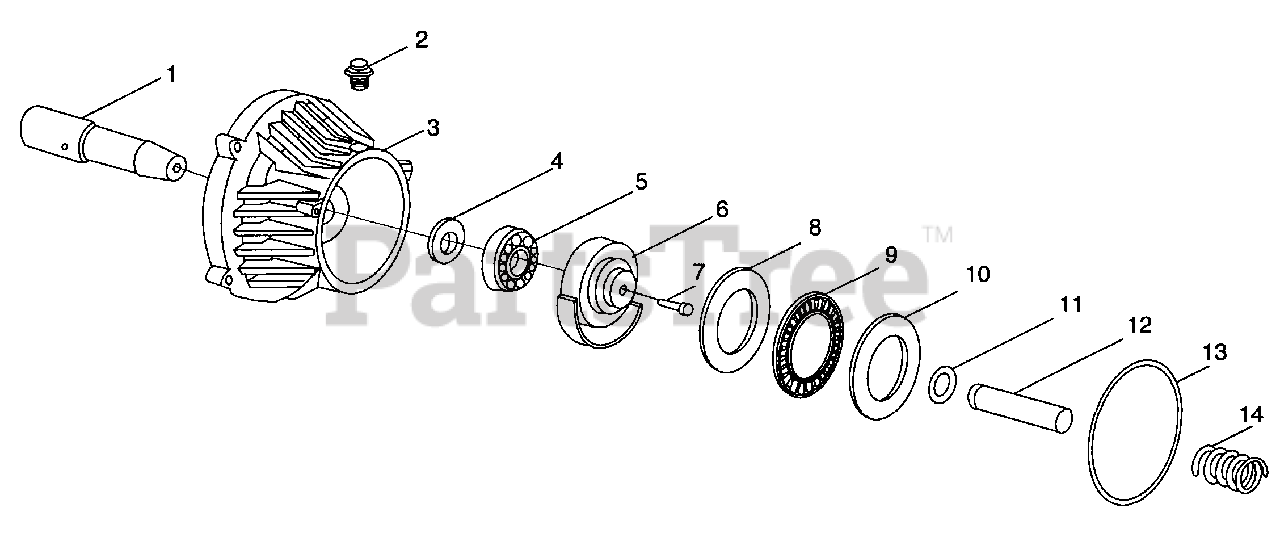

Pump #97745 (1500PSI) 2.0GPM Parts Diagram

  • Title

1

Briggs & Stratton 10097745

Input Shaft

$

$

Not available

2

Briggs & Stratton 14197745

Oil Breather Cap 3/8 OT
(Superseded to 14197745GS)

$33.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 10197745

Pump Flange Top
(Superseded to 10197745GS)

$120.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 10297745

Oil Seal
(Superseded to 10297745GS)

$20.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 10397745

Thrust Bearing
(Superseded to 10397745GS)

$105.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 10497745

Axial Cam
(Superseded to 10497745GS)

$57.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 10597745

Cam Retainer

$

$

Currently unavailable

8

Briggs & Stratton 14097745

Thrust Bearing Disk
(Superseded to 14097745GS)

$14.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 13997745

Thrust Roller Bearing
(Superseded to 13997745GS)

$31.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 13897745

Thrust Shoe
(Superseded to 13897745GS)

$52.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 10697745

Piston Spring Retainer
(Superseded to 10697745GS)

$4.49

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 13797745

Piston
(Superseded to 13797745GS)

$57.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 13697745

O-Ring
(Superseded to 13697745GS)

$5.49

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 13597745

Piston Return Spring D.14
(Superseded to 13597745GS)

$6.99

$

Usually ships in 2-12 days

0
