A 2701 - Briggs & Stratton Pressure Washer Pumps Pump #A1656 (2.5 Vertical) Parts Diagram

Pressure Washer Pumps

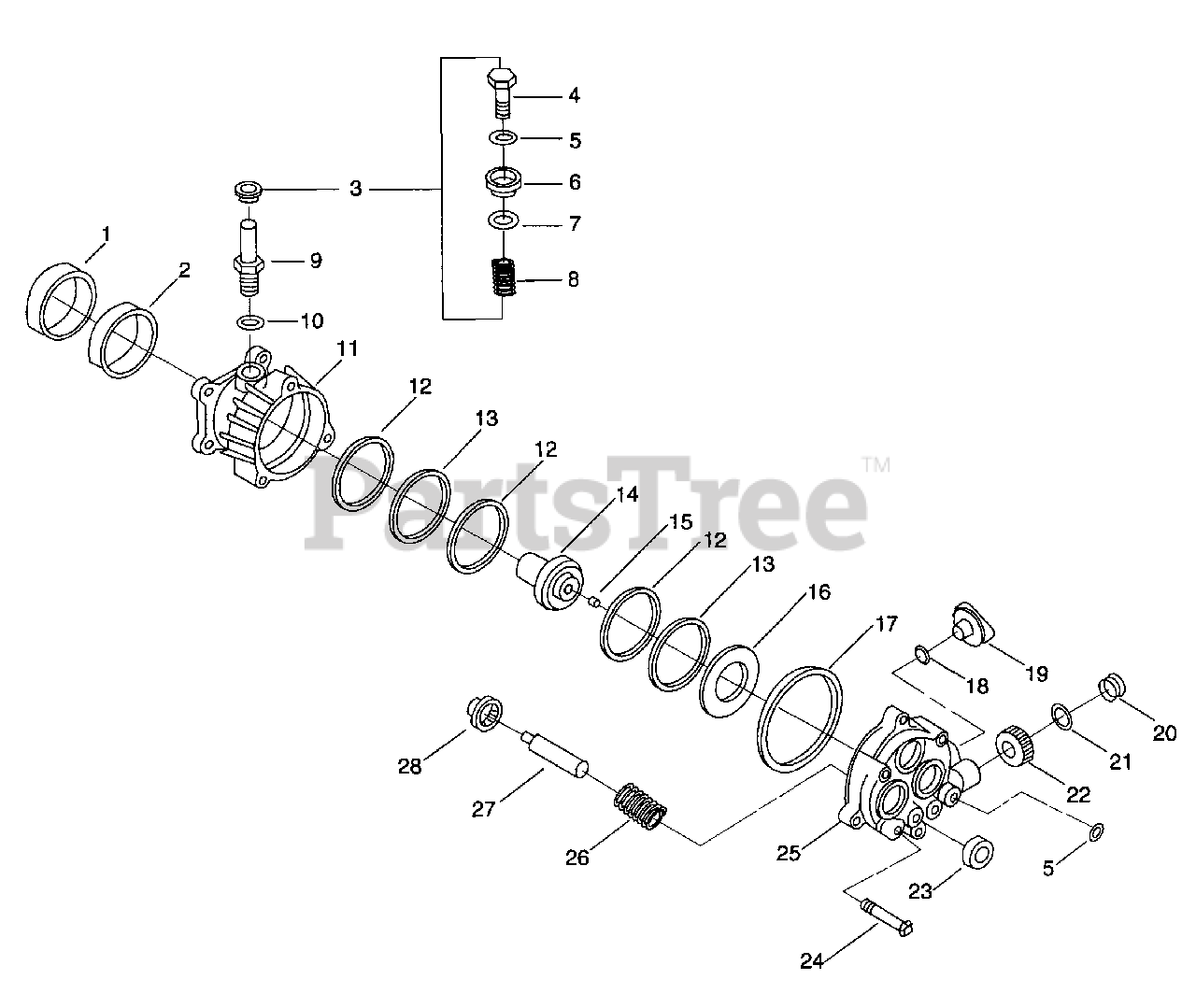

Pump #A1656 (2.5 Vertical) Parts Diagram

  • Title

1

Briggs & Stratton 100A1656

Seal
(Superseded to 100A1656GS)

$15.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 100A1655

Spacer
(Superseded to 100A1655GS)

$50.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 102A1655

Vent Valve Assy.
(Superseded to 102A1655GS)

$11.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 103A1655

Oil Vent Valve

$

$

Currently unavailable

5

Briggs & Stratton 122A1655

O-Ring
(Superseded to 122A1655GS)

$3.49

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 105A1655

Oil Vent Cap
(Superseded to 105A1655GS)

$5.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 106A1655

O-Ring
(Superseded to 106A1655GS)

$2.49

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 107A1655

Vent Valve spring
(Superseded to 107A1655GS)

$4.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 104A1656

Adaptor 2.9 x 1.78
(Superseded to 104A1656GS)

$3.49

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 179A1656

Oil Fill Cap
(Superseded to 179A1656GS)

$10.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 108A1655

Mounting Flange

$

$

Not available

12

Briggs & Stratton 110A1655

Shim/spacer
(Superseded to 110A1655GS)

$13.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 111A1655

Roller Bearing
(Superseded to 111A1655GS)

$34.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 112A1655

Wobble Plate
(Superseded to 112A1655GS)

$95.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 113A1655

Nut
(Superseded to 113A1655GS)

$9.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 114A1655

Spacer
(Superseded to 114A1655GS)

$50.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 115A1655

O-Ring
(Superseded to 115A1655GS)

$4.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 117A1655

Seal
(Superseded to 117A1655GS)

$3.49

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 118A1655

Screw Cap
(Superseded to 118A1655GS)

$11.99

$

Usually ships in 2-12 days

0

20

N/A

Shipping Plug

$

$

Not available

21

Briggs & Stratton 120A1655

O-Ring
(Superseded to 190670GS)

$40.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 119A1655

Garden Hose Fitting
(Superseded to 119A1655GS)

$11.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 160A1655

Seal
(Superseded to 160A1655GS)

$11.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 158A1655

Hex Head Capscrew
(Superseded to 158A1655GS)

$4.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 116A1655

Pump, Crankcase

$

$

Not available

26

Briggs & Stratton 157A1655

Piston Spring
(Superseded to 157A1655GS)

$11.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 156A1655

Piston
(Superseded to 156A1655GS)

$40.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 155A1655

Piston Spring Retainer
(Superseded to 155A1655GS)

$5.49

$

Usually ships in 2-12 days

0
