A 2701 - Briggs & Stratton Pressure Washer Pumps Pump #B3699 (2250PSI) 3.0GPM Parts Diagram

Pressure Washer Pumps

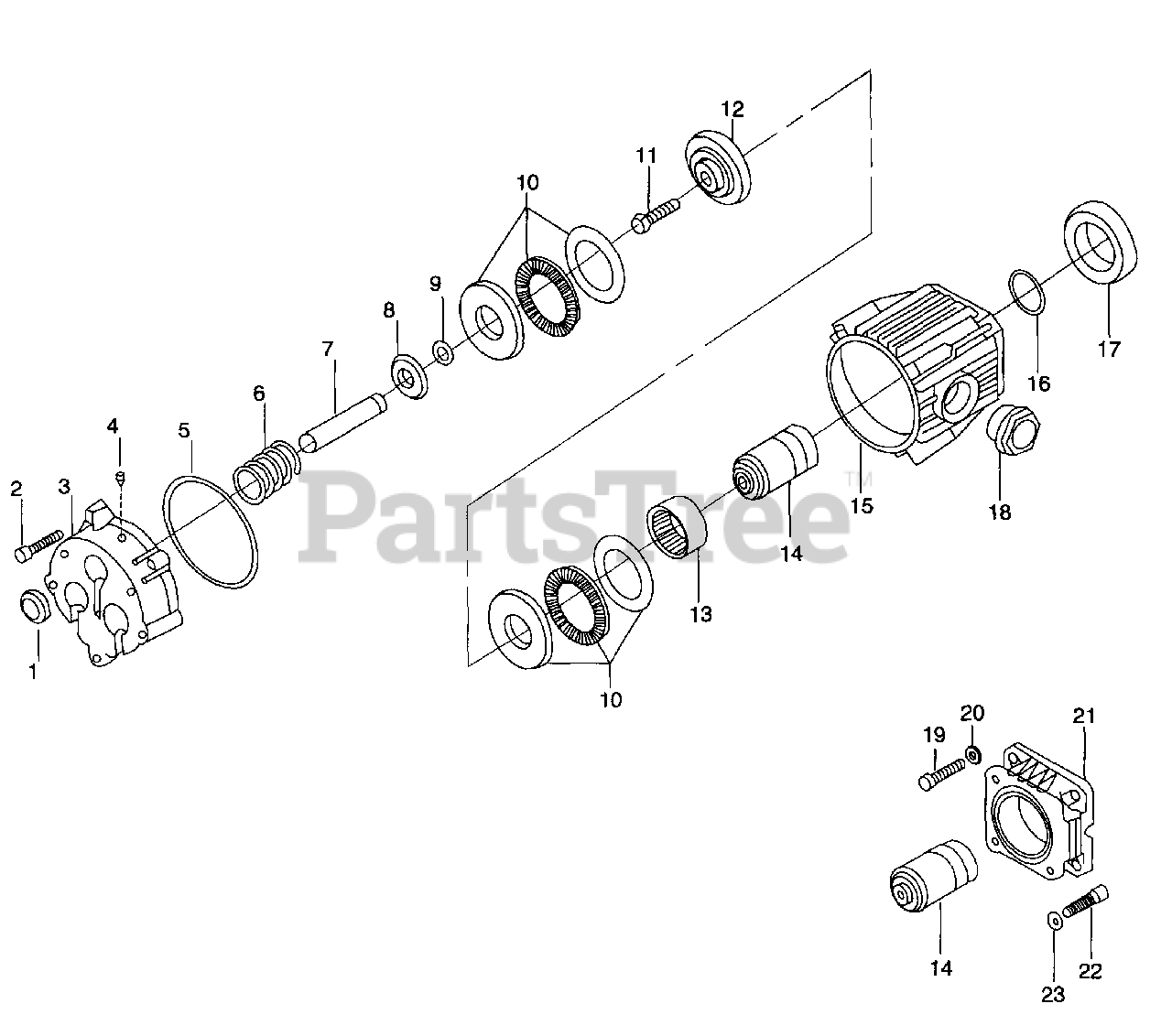

Pump #B3699 (2250PSI) 3.0GPM Parts Diagram

  • Title

1

Briggs & Stratton 119B3699

Oil Seal
(Superseded to 119B3699GS)

$26.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 120B3699

Screw M6 x 30
(Superseded to 120B3699GS)

$5.49

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 141B3699

Piston Guide
(Superseded to 141B3699GS)

$188.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 164B3699

Vent Plug
(Superseded to 164B3699GS)

$46.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 12092293P

O-Ring
(Superseded to 12092293PGS)

$7.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 128B3699

Spring 33 x 56
(Superseded to 128B3699GS)

$86.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 129B3699

Piston Assy.
(Superseded to 129B3699GS)

$136.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 130B3699

Spring Plate
(Superseded to 130B3699GS)

$39.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 131B3699

Spring Plate Retainer
(Superseded to 131B3699GS)

$26.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 132B3699

Roller Bearing
(Superseded to 132B3699GS)

$148.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 148B3169

Screw M8 x 28
(Superseded to 148B3169GS)

$6.49

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 134B3699

Wobble Plate
(Superseded to 134B3699GS)

$176.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 135B3699

Bearing Bushing
(Superseded to 135B3699GS)

$96.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 161B3699

Crankshaft
(Superseded to 161B3699GS)

$341.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 136B3699

Crankcase
(Superseded to 136B3699GS)

$

$

Not available

16

Briggs & Stratton 138B3699

Snap Ring
(Superseded to 138B3699GS)

$8.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 139B3699

Oil Seal
(Superseded to 139B3699GS)

$33.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 100B3699A

Brass Cap
(Superseded to 100B3699AGS)

$50.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 159B3699

Screw
(Superseded to 159B3699GS)

$8.49

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 12492293P

Washer
(Superseded to 12492293PGS)

$4.49

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 160B3699

Gas Mounting Flange
(Superseded to 160B3699GS)

$71.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 12692293P

Screw
(Superseded to 12692293PGS)

$2.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 10692293P

Washer
(Superseded to 10692293PGS)

$2.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 207B3699

Oil Seal Kit

Note: Includes item No.1, Assemblies in Kit 3

$

$

Currently unavailable
