A1400 (8967-2) - Generac 1,350 Watt Portable Generator Generator No. 75447 Parts Diagram

1,350 Watt Portable Generator

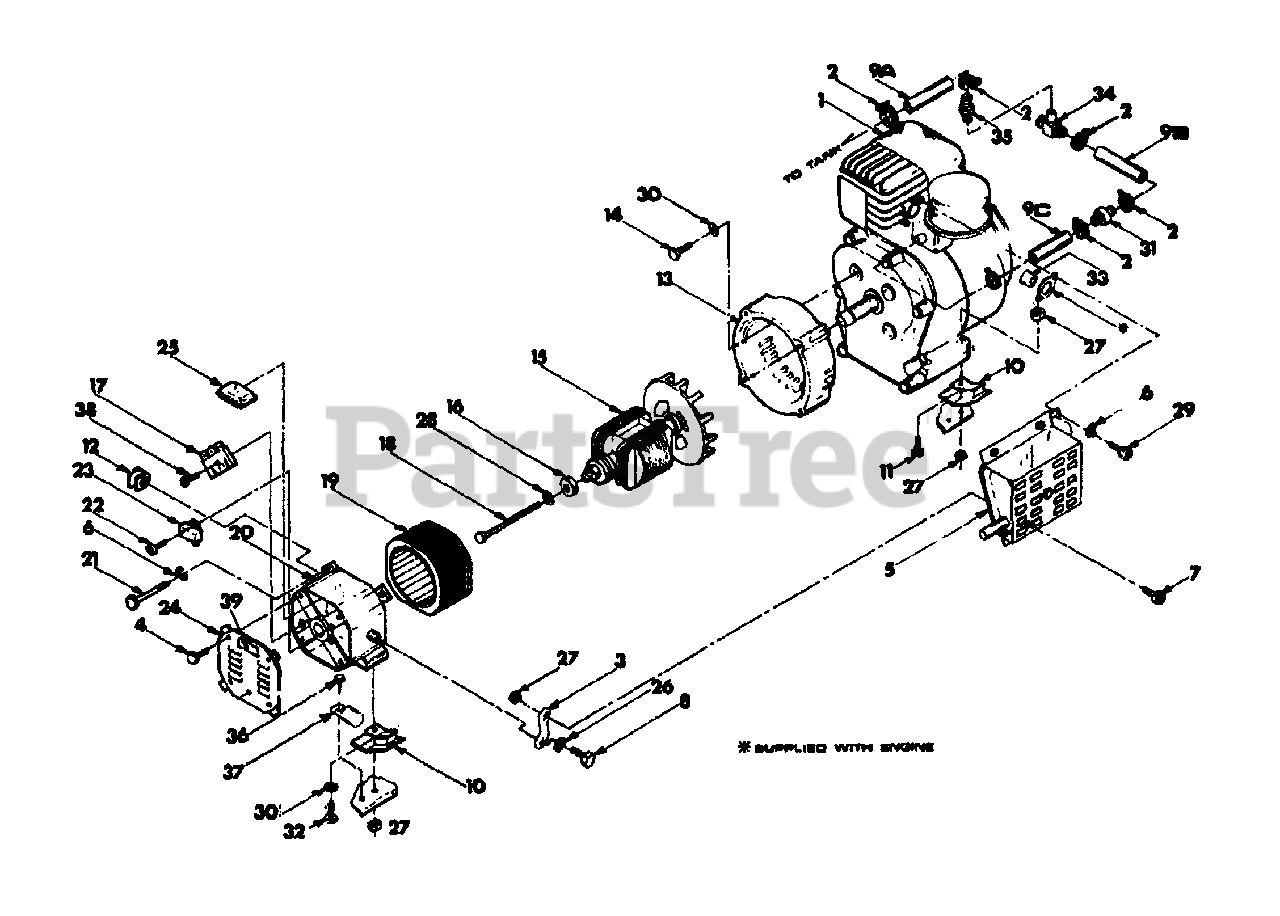

Generator No. 75447 Parts Diagram

  • Title

1

Briggs & Stratton 72270

ENGINE- Briggs & Stratton 3 HP
(Superseded to 7072270YP)

$29.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 48031C

CLAMP, Fuel Line

$

$

Not available

3

Briggs & Stratton 74917

BRACKET, Muffler Support
(Superseded to 7074917YP)

$45.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 74908

SCREW - M5-0.80 x 8mm
(Superseded to 74908GS)

$2.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 72281

MUFFLER, Spark Arrestor Type

$

$

Currently unavailable

6

Briggs & Stratton 22097

LOCKWASHER - 1/4"
(Superseded to 5022097)

$2.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 51754

CAPSCREW, Socket Head M8-1.25 x 16mm
(Superseded to 51754GS)

$2.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 51755

CAPSCREW, Hex Head M10-1.50 x 16mm

$

$

Currently unavailable

9A

Briggs & Stratton 47662AN

HOSE, Fuel - 17" long

$

$

Currently unavailable

9B

Briggs & Stratton 47662AN

HOSE, Fuel - 17" long

$

$

Currently unavailable

9C

Briggs & Stratton 47662B

HOSE, Fuel - 3" long

$

$

Not available

10

Briggs & Stratton 70642

MOUNT, Vibration
(Superseded to 70642GS)

$31.99

$

In Stock, only 3 left!

0

11

Briggs & Stratton 39414

SCREW - M8-1.25 x 35mm
(Superseded to 39414GS)

$2.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 67022

GROMMET, Lead Outlet
(Superseded to 67022GS)

$3.49

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 66365F

HOUSING, Engine Adapter
(Superseded to 66365FGS)

$79.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 22336

CAPSCREW, Hex Head 5/16"-18 x 3/4"

$

$

Not available

15

Briggs & Stratton 74712

ROTOR ASSY

$

$

Not available

16

Briggs & Stratton 65791

BEARING, Ball
(Superseded to 65791GS)

$34.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 65795

RECTIFIER, Battery Charge
(Superseded to 65795GS)

$

$

Not available

18

Briggs & Stratton 75444

BOLT, Rotor - 5/16"-24 x 5.5"
(Superseded to 75444GS)

$14.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 74705

STATOR ASSY
(Superseded to 7074705YP)

$159.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 66825

CARRIER, Rear Bearing

$

$

Currently unavailable

21

Briggs & Stratton 66449H

BOLT, Stator - M6-1.00 x 60mm

$

$

Currently unavailable

22

Briggs & Stratton 66849

SCREW - M5-0.80 x 16mm
(Superseded to 66849GS)

$4.99

$

In Stock, only 1 left!

0

23

Briggs & Stratton 66386

HOLDER, Brush
(Superseded to 66386GS)

$23.99

$

In Stock, only 2 left!

0

24

Briggs & Stratton 67025

COVER, Bearing Carrier

$

$

Currently unavailable

25

Briggs & Stratton 66850

BOARD, Bridge Rectifier
(Superseded to 66850GS)

$70.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 46526

LOCKWASHER - M10

$

$

Not available

27

Briggs & Stratton 52858

NUT, Flanged Hex - M8
(Superseded to 52858GS)

$3.99

$

In Stock, only 1 left!

0

28

Briggs & Stratton 67451

FLATWASHER (Special) - M8

$

$

Currently unavailable

29

Briggs & Stratton 39974

CAPSCREW, Socket Head 1/4"-20 x 1/2"

$

$

Currently unavailable

30

Briggs & Stratton 22129

LOCKWASHER - M8
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

31

Briggs & Stratton 68740

FILTER, Fuel
(Superseded to 68740GS)

$11.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 70644

SCREW, Pan Head M8-1.25 x 20mm
(Superseded to 70644GS)

$4.49

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 73049

LINER, Port

$

$

Currently unavailable

34

Briggs & Stratton 71384

VALVE, Fuel Shutoff

$

$

Not available

35

Briggs & Stratton 28414

FITTING, Barbed - 1/4"

$

$

Currently unavailable

36

Briggs & Stratton 24489

SCREW (Taptite) - No. 10 x 3/8"

$

$

Currently unavailable

37

Briggs & Stratton 25433

LUG, Grounding

$

$

Not available

38

Briggs & Stratton 66849A

SCREW (Taptite) - M5-0.80 x 20mm
(Superseded to 66849AGS)

$4.49

$

Usually ships in 2-12 days

0

39

Briggs & Stratton 74728

DECAL - Neutral Ground
(Superseded to 74728GS)

$5.49

$

Usually ships in 2-12 days

0
