Accessory - Cub Cadet 38" Hitch and Drive for 3-Spindle Deck 3 Spindle Hitch And Drive Unit Parts Diagram

38" Hitch and Drive for 3-Spindle Deck

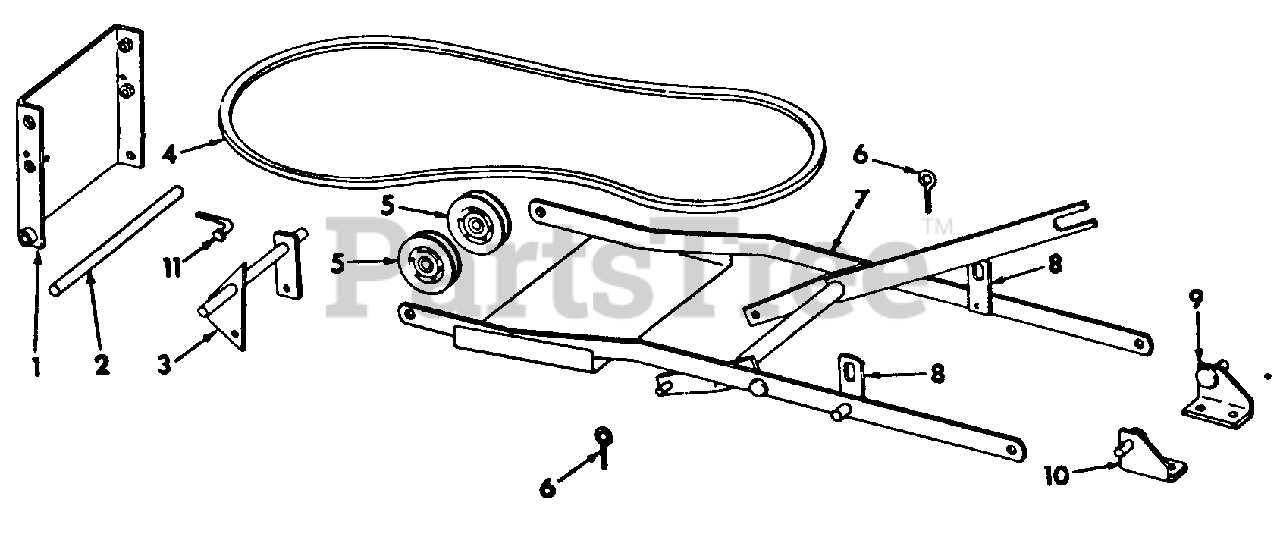

3 Spindle Hitch And Drive Unit Parts Diagram

  • Title

1

~NLA

Support Assy, Front

$

$

Not available

~NLA

Bolt, 1/2-13 X 1 C-Z Hex-Hd Mach

$

$

Not available

Cub Cadet IH-120384

Washer, 1/2 C-Z Med Lock
(Superseded to 936-0921)

$4.49

$

In Stock, Qty 20+

0

2

Cub Cadet IH-473442-R1

Pin, Front Mounting

$

$

Not available

Cub Cadet IH-137175

Pin, 3/32 X 1-1/8 C-Z Cotter
(Superseded to 914-0111)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet 914-3003

Pin, Quick Attachable Cotter

$4.99

$

In Stock, only 2 left!

0

3

~NLA

Support Assy, Idler

$

$

Not available

4

Cub Cadet IH-478881-R3

Belt, Drive

$

$

Not available

5

Cub Cadet IH-611716-C92

Pulley, Drive Belt Idler -Replaces 473 467 R91

$

$

Currently unavailable

Cub Cadet 710-0344

Bolt, 3/8-16 X 1-1/2 C-Z Hex-Hd Mach

$5.49

$

In Stock, only 1 left!

0

Cub Cadet IH-120377

Nut, 3/8-16 C-Z Hex
(Superseded to 712-0798)

$3.99

$

Usually ships in 3-6 days

0

Cub Cadet IH-120382

Washer, 3/8 C-Z Med Lock
(Superseded to 936-0169)

$3.49

$

In Stock, Qty 20+

0

6

Cub Cadet IH-471195-R1

Eyebolt

$

$

Not available

Cub Cadet 912-0429

Nut, 5/16-18 Esna Stop
(Superseded to 712-0429)

$3.99

$

In Stock, Qty 20+

0

Cub Cadet IH-120393

Washer, 11/32 X 11/16 X 11 Ga C-Z
(Superseded to 936-0275)

$

$

Not available

7

~NLA

Frame Assy, Lift

$

$

Not available

Cub Cadet IH-137175

Pin, 3/32 X 1-1/8 C-Z Cotter
(Superseded to 914-0111)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet 914-3003

Pin, Quick Attachable Cotter

$4.99

$

In Stock, only 2 left!

0

Cub Cadet IH-120394

Washer, 13/32 X 13/16 X .065 C-Z
(Superseded to 936-0140)

$

$

Not available

Cub Cadet 936-0160

Washer, 17/32 X 1 X 16 Ga C-Z

$3.99

$

In Stock, Qty 17

0

~NLA

Nut, 3/8-24 C-Z Hex Jam

$

$

Not available

8

Cub Cadet IH-478875-R91

Link Assy, Lift

$

$

Not available

Cub Cadet IH-137175

Pin, 3/32 X 1-1/8 C-Z Cotter
(Superseded to 914-0111)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet 914-3003

Pin, Quick Attachable Cotter

$4.99

$

In Stock, only 2 left!

0

Cub Cadet 936-0160

Washer, 17/31 X 1 X 16 Ga C-Z

$3.99

$

In Stock, Qty 17

0

9

Cub Cadet IH-473458-R92

Bracket Assy, Rear Hanger RH

$

$

Not available

~NLA

Bolt, 3/8-16 X 1 C-Z Sq-Nk Crg

$

$

Not available

Cub Cadet IH-120377

Nut, 3/8-16 C-Z Hex
(Superseded to 712-0798)

$3.99

$

Usually ships in 3-6 days

0

Cub Cadet 914-3003

Pin, Quick Attachable Cotter

$4.99

$

In Stock, only 2 left!

0

Cub Cadet IH-120382

Washer, 3/8 C-Z Med Lock
(Superseded to 936-0169)

$3.49

$

In Stock, Qty 20+

0

Cub Cadet 936-0160

Washer, 17/32 X 1 X 16 Ga C-Z

$3.99

$

In Stock, Qty 17

0

Cub Cadet IH-25708-R1

Washer, 13/32 X 3/4 X 11 Ga C-Z
(Superseded to 936-0275)

$

$

Not available

Cub Cadet IH-120394

Washer, 13/32 X 13/16 X .065 C-Z
(Superseded to 936-0140)

$

$

Not available

10

Cub Cadet IH-473457-R92

Bracket Assy, Rear Hanger LH

$

$

Not available

~NLA

Bolt, 3/8-16 X 1 C-Z Sq-Nk Crg

$

$

Not available

Cub Cadet IH-120377

Nut, 3/8-16 C-Z Hex
(Superseded to 712-0798)

$3.99

$

Usually ships in 3-6 days

0

Cub Cadet 914-3003

Pin, Quick Attachable Cotter

$4.99

$

In Stock, only 2 left!

0

Cub Cadet IH-120382

Washer, 3/8 C-Z Med Lock
(Superseded to 936-0169)

$3.49

$

In Stock, Qty 20+

0

Cub Cadet IH-120394

Washer, 13/32 X 13/16 X .065 C-Z
(Superseded to 936-0140)

$

$

Not available

Cub Cadet 936-0160

Washer, 17/32 X 1 X 16 Ga C-Z

$3.99

$

In Stock, Qty 17

0

Cub Cadet IH-25708-R1

Washer, 13/32 X 3/4 X 11 Ga C-Z
(Superseded to 936-0275)

$

$

Not available

11

Cub Cadet IH-624479-R1

Bolt, Idler

$

$

Not available

Cub Cadet 912-0429

Nut, 5/16-18 Esna Stop
(Superseded to 712-0429)

$3.99

$

In Stock, Qty 20+

0

Cub Cadet IH-120393

Washer, 11/32 X 11/16 X .065 C-Z
(Superseded to 936-0275)

$

$

Not available

~NLA

Product Graphic, IH -38 & 42 In. Blade

$

$

Not available

Cub Cadet IH-77582-C91

Product Graphic, IH -48 In. Blade

$

$

Not available

Cub Cadet 779-3000

Product Graphic, Caution Safety First -On rotor housing

$

$

Not available
