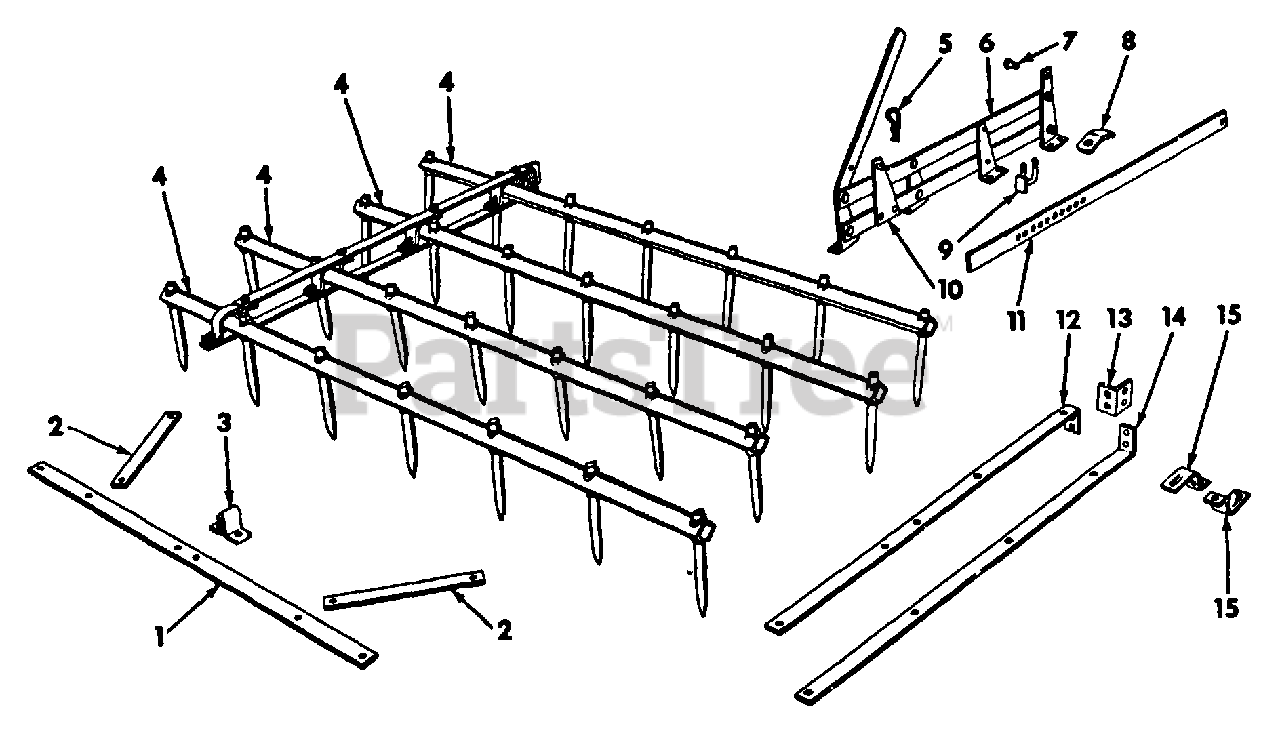

Accessory - Cub Cadet Peg Tooth Harrow Frame, Tooth Bar and Quadrant Parts Diagram

Peg Tooth Harrow

Frame, Tooth Bar and Quadrant Parts Diagram

  • Title

1

463541-R2

BRACE CROSS

$

$

Not available

18474-R1

BOLT, 5/16 X 1 C-Z HEX-HD MACH

$

$

Not available

Cub Cadet IH-120376

NUT 5/16 C-Z HEX.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet 120214

WASHER, 5/16 C-Z MED LOCK

$

$

Currently unavailable

2

464875-R1

BRACE, DIAGONAL

$

$

Not available

18475

BOLT, 5/16 X 1 C-Z HEX-HD MACH

$

$

Not available

Cub Cadet IH-120376

NUT 5/16 C-Z HEX.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet IH-120214

WASHER, 5/16 C-Z MED LOCK
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

3

463540-R1

GUIDE, CROSS BRACE

$

$

Not available

18764-R1

BOLT, 5/16 X 3/4 C-Z HEX-HD MACH

$

$

Not available

Cub Cadet IH-120376

NUT, 5/16 C-Z HEX.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet IH-120214

WASHER, 5/16 C-Z MED LOCK
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

4

459737-R91

BAR ASSEMBLY, TOOTH

$

$

Not available

5

Cub Cadet IH-520175-R1

PIN, QUICK ATTACHABLE COTTER

$

$

Not available

6

464878-R91

BAR ASSEMBLY, SET

$

$

Not available

457623-R1

RIVET, 3/8 X 53/64 SPECIAL STEP

$

$

Not available

463049-R1

RIVET, 3/8 FLAT HD. STEP

$

$

Not available

7

22073-R1

PIN 1/2 X 7/8 C-Z STD-HD DLD

$

$

Not available

18481-R1

PIN, 3/16 X 1 C-Z COTTER

$

$

Not available

Cub Cadet IH-607895-R1

WASHER, 17/32 X 1 X 11 GA C-Z
(Superseded to 936-0272)

$4.49

$

In Stock, Qty 20+

0

8

459976-R1

SPACER, SET BAR STANDARD

$

$

Not available

9

463050-R11

U-BOLT ASSEMBLY

$

$

Not available

271500

NUT. 7/16 HEX.

$

$

Not available

Cub Cadet IH-120383

WASHER, 7/16 C-Z MED LOCK
(Superseded to 936-0171)

$4.49

$

In Stock, Qty 20+

0

10

464880-R11

BRACKET ASSY, QUADRANT

$

$

Not available

11

464882-R1

QUADRANT

$

$

Not available

104112

RIVET, 3/8 X 7/8 BUTTON HD. ANN.

$

$

Not available

12

464876-R1

FRAME SIDE, UPPER

$

$

Not available

13

464186-R1

ANGLE DRAW

$

$

Not available

18475

BOLT, 5/16 X 1 C-2 HEX-HD MACH

$

$

Not available

Cub Cadet IH-120376

NUT, 5/16 C-Z HEX.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet IH-120214

WASHER, 5/16 C-Z MED LOCK
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

14

464877-R1

FRAME SIDE, LOWER

$

$

Not available

15

463539-R1

BEARING, TOOTH BAR

$

$

Not available

Cub Cadet IH-19007-R1

BOLT, 5/16 X 1 C-Z NO. 3 PLOW

$

$

Currently unavailable

18475

BOLT, 5/16 X 1 C-Z HEX-HD MACH

$

$

Not available

18474-R1

BOLT, 5/16 X 1 C-Z HEX-HD MACH

$

$

Not available
