Accessory - Cub Cadet Tiller 1 and 1A Front Drive Front Drive Parts Diagram

Tiller 1 and 1A Front Drive

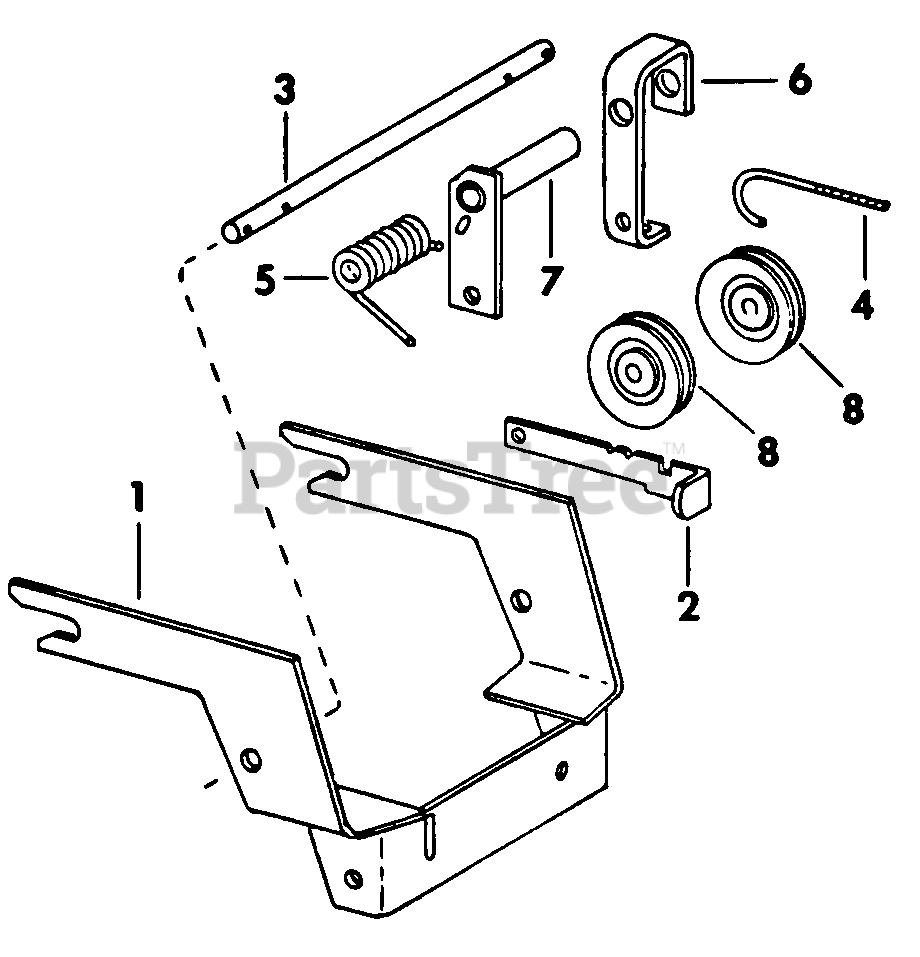

Front Drive Parts Diagram

  • Title

Cub Cadet IH-62383-C91

Tiller Front Drive Service

$

$

Not available

1

Cub Cadet IH-59681-C1

Hanger Assy, Front

$

$

Not available

2

Cub Cadet IH-107099-C1

Ratchet, Idler

$

$

Not available

Cub Cadet IH-9413953

Nut, 3/8 Phc P/T Lock Type 5
(Superseded to 912-3000)

$4.49

$

In Stock, Qty 20+

0

3

Cub Cadet IH-59683-C1

Shaft, Idler Pivot

$50.99

$

Usually ships in 3-6 days

0

Cub Cadet IH-137185

Pin, 1/8 X 1 Cot
(Superseded to 914-0115)

$3.99

$

In Stock, Qty 20+

0

Cub Cadet IH-178373-R1

Washer, .531 X 1.000 X .056
(Superseded to 936-0160)

$4.49

$

In Stock, Qty 17

0

4

Cub Cadet IH-59685-C1

Bolt, Idler Adjusting
(Superseded to 947-3012)

$20.99

$

In Stock, Qty 5

0

Cub Cadet IH-120393

Washer, .344 X .688 X .051
(Superseded to 936-0275)

$

$

Not available

Cub Cadet IH-411597-R1

Nut, 5/16 P/T Lock Type 5
(Superseded to 912-0429)

$4.49

$

In Stock, Qty 20+

0

5

Cub Cadet IH-59691-C1

Spring, Mule Drive Idler
(Superseded to IH-59691-C2)

$

$

Not available

6

Cub Cadet IH-106678-C1

Arm, LH Idler

$

$

Not available

Cub Cadet IH-180126

Bolt, 3/8 X 1-1/2 Type 5
(Superseded to 710-0520)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet IH-120382

Washer, 3/8 Lock
(Superseded to 936-0169)

$3.99

$

In Stock, Qty 20+

0

Cub Cadet IH-120377

Nut, 3/8 Type 5
(Superseded to 712-0798)

$4.49

$

In Stock, only 2 left!

0

7

Cub Cadet IH-106679-C1

Arm Assy, RH Idler

$

$

Not available

Cub Cadet IH-180132

Bolt, 3/8 X 2-1/4 Type 5
(Superseded to 710-3011)

$6.99

$

In Stock, Qty 20+

0

Cub Cadet IH-120382

Washer, 3/8 Lock
(Superseded to 936-0169)

$3.99

$

In Stock, Qty 20+

0

Cub Cadet IH-120377

Nut, 3/8 Type 5
(Superseded to 712-0798)

$4.49

$

In Stock, only 2 left!

0

Cub Cadet IH-59689-C1

Washer, Wave
(Superseded to 736-0413)

$6.99

$

In Stock, only 3 left!

0

Cub Cadet IH-25544-R1

Washer, .406 X .812 X .134 Phc Hdn
(Superseded to 736-3010)

$4.99

$

In Stock, Qty 16

0

8

Cub Cadet IH-61176-C92

Pulley Assy, Drive Belt Idler

$38.99

$

In Stock, only 2 left!

0
