Accessory - Cub Cadet Tiller 1 Front Drive Front Drive Part 1 Parts Diagram

Tiller 1 Front Drive

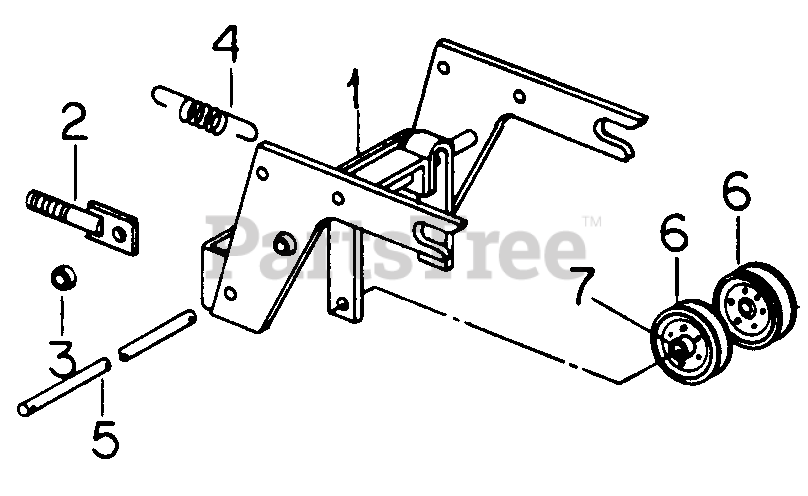

Front Drive Part 1 Parts Diagram

  • Title

Cub Cadet IH-490555-R91

Package, Tiller Front Drive Service

$

$

Currently unavailable

1

Cub Cadet IH-489369-R1

Hanger Assy, Front

$

$

Not available

Cub Cadet IH-364436-R1

Pin, 3/16 X 1 Hv Coiled Spring
(Superseded to 715-0120)

$9.99

$

In Stock, only 2 left!

0

Cub Cadet IH-20249-R1

Screw, 1/2-13 X 1 C-Z Slt-Truss-Hd Mach

Note: (Used when mounting tiller on Cub Cadet Tractors prior to 1968)

$

$

Currently unavailable

IH-17433-R1

Bolt, 1/2-13 X 1 C-Z Hex-Hd Mach

Note: (Used when mounting tiller on Cub Cadet Tractors prior to 1968)

$

$

Not available

Cub Cadet IH-120378

Nut, 1/2-13 C-Z
(Superseded to 912-0206)

Note: (Used when mounting tiller on Cub Cadet Tractors prior to 1968)

$3.99

$

In Stock, Qty 20+

0

Cub Cadet IH-460908-R1

Washer, 17/32 X 1-1/2 X 11 Ga C-Z

Note: (Used when mounting tiller on Cub Cadet Tractors prior to 1968)

$

$

Not available

Cub Cadet IH-120384

Washer, 1/2 C-Z Med Lock
(Superseded to 936-0921)

Note: (Used when mounting tiller on Cub Cadet Tractors prior to 1968)

$4.49

$

In Stock, Qty 20+

0

2

Cub Cadet IH-489375-R1

Bracket Assy, Idler Adjuster
(Superseded to 959-3092)

$110.99

$

Usually ships in 3-6 days

0

Cub Cadet IH-120393

Washer, 11/32 X 11/16 X .065 C-Z
(Superseded to 936-0275)

$

$

Not available

Cub Cadet IH-668569-R1

Washer, 11/32 X 1-1/2 X .119 C-Z

$

$

Not available

Cub Cadet IH-411597-R1

Nut, 5/16-18 Zn Nylon Insert
(Superseded to 912-0429)

$3.99

$

In Stock, Qty 20+

0

3

Cub Cadet IH-489378-R1

Spacer, Idler Adjuster

$

$

Not available

4

Cub Cadet IH-489607-R4

Spring, Mule Dr. Extension

$

$

Not available

5

Cub Cadet IH-489379-R1

Pin, Front Mtg

$

$

Not available

Cub Cadet IH-137175

Pin, 3/32 X 1-1/8 Cot
(Superseded to 914-0111)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet IH-437443-R1

Pin, Quick Attachable Cot

$

$

Currently unavailable

6

Cub Cadet IH-493164-R91

Pulley, Drive Belt Idler

$

$

Not available

Cub Cadet IH-18253-R1

Nut, 3/8-16 Nylon Lock
(Superseded to 912-0181)

$

$

Not available

Cub Cadet IH-120377

Nut, 3/8-16 C-Z Hex
(Superseded to 712-0798)

$3.99

$

Usually ships in 3-6 days

0

Cub Cadet IH-180130

Screw, 3/8-16 X 2 C-Z Hex-Hd Cap
(Superseded to 710-3144)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet IH-180128

Screw, 3/8-16 X 1-3/4 C-Z Hex-Hd Cap
(Superseded to 710-0347)

$4.99

$

In Stock, Qty 20+

0

Cub Cadet IH-120382

Washer, 3/8 C-Z Med Lock
(Superseded to 936-0169)

$3.49

$

In Stock, Qty 20+

0

Cub Cadet IH-120394

Washer, 13/32 X 11/16 X .065 C-Z
(Superseded to 936-0140)

$

$

Not available

7

Cub Cadet IH-542122-R91

Bearing Assy, Idler Pulley

$

$

Not available
