ACRM008 (00997655) - Ryobi 30" Grass Bagging Kit, Rev 01 (2020-04) General Assembly Parts Diagram

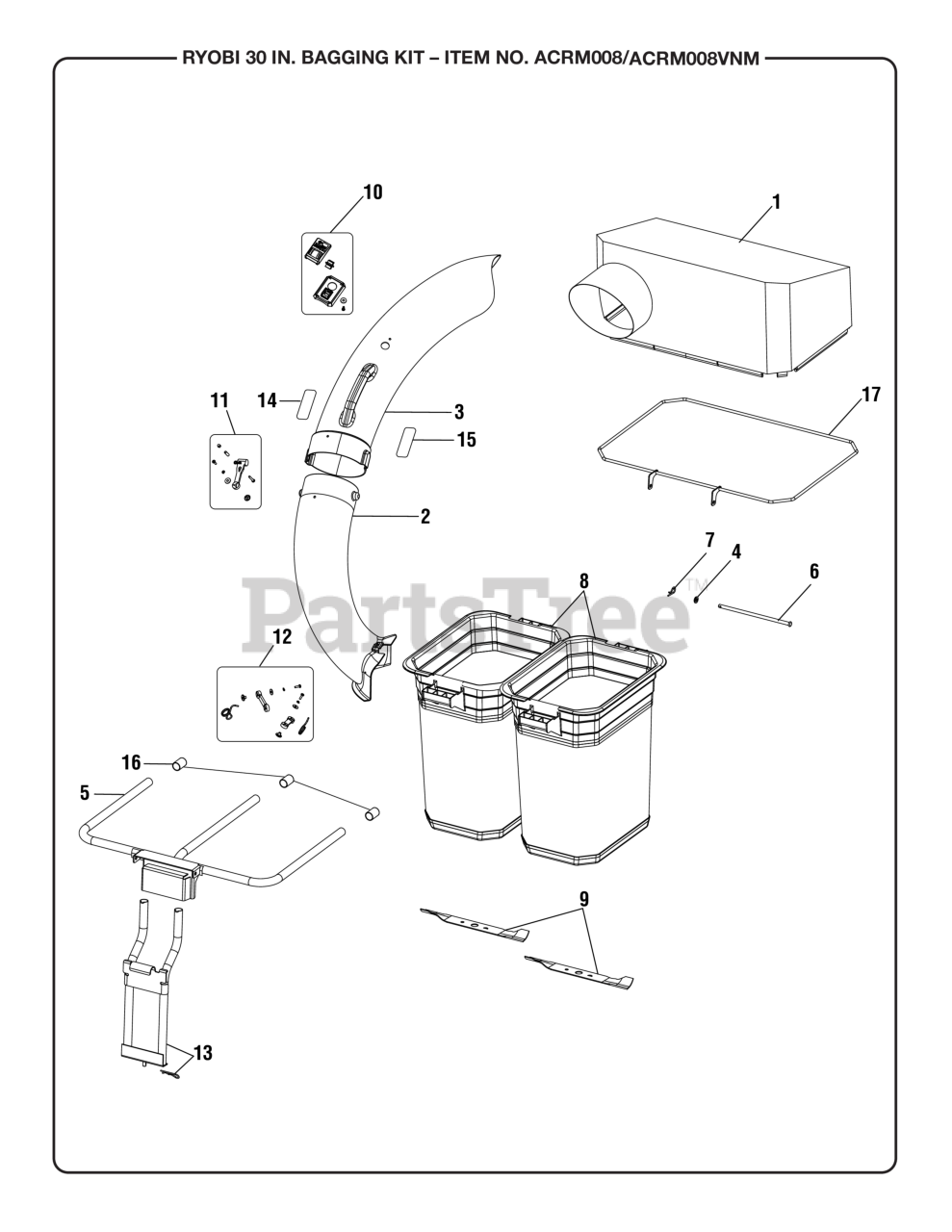

30" Grass Bagging Kit, Rev 01

General Assembly Parts Diagram

  • Title

1

Homelite 316279001

Bagger Cover Assembly

Note: (Inc. Key Nos. 14-15)

$

$

Currently unavailable

2

Homelite 580775001

Lower Bagger Tube Assembly

$

$

Currently unavailable

3

Homelite 532455001

Upper Bagger Tube Assembly

$

$

Currently unavailable

4

Homelite 636797001

Washer

$

$

Not available

5

Homelite 994977001

Upper Frame Cover Assembly

$110.99

$

Usually ships in 3-7 days

0

6

Homelite 622101001

Hinge Bagger Cover Pin

$5.99

$

Usually ships in 3-7 days

0

7

Homelite 696243001

Bagger Hinge Pin Lock

$1.49

$

In Stock, only 1 left!

0

8

Homelite 312484001

Bagger Assembly Bag

$57.99

$

Usually ships in 3-7 days

0

9

Homelite 682461001

30 in. Bagging Blade

$

$

Currently unavailable

10

Homelite 120608001

Bagger Gauge Assembly

$1.99

$

Usually ships in 3-7 days

0

11

Homelite 120688001

Upper Bungie Tube Connector Kit

$4.49

$

Usually ships in 3-7 days

0

12

Homelite 120689001

Lower Bungie Tube Connector Kit

$

$

Not available

13

Homelite 120690001

Bagger Assembly Lower Frame

$

$

Not available

14

Homelite 940851218

Bagger Warning Label

$1.49

$

Usually ships in 3-7 days

0

15

Homelite 940851266

Bagger Icon Warning Label

$1.49

$

Usually ships in 3-7 days

0

16

Homelite 518366001

Hanger Cap
(Superseded to 518019004)

$1.49

$

In Stock, Qty 6

0

17

Homelite 659198001

Bagger Cover Frame

$

$

Currently unavailable

Homelite 998000114

Operator's Manual

$

$

Currently unavailable
