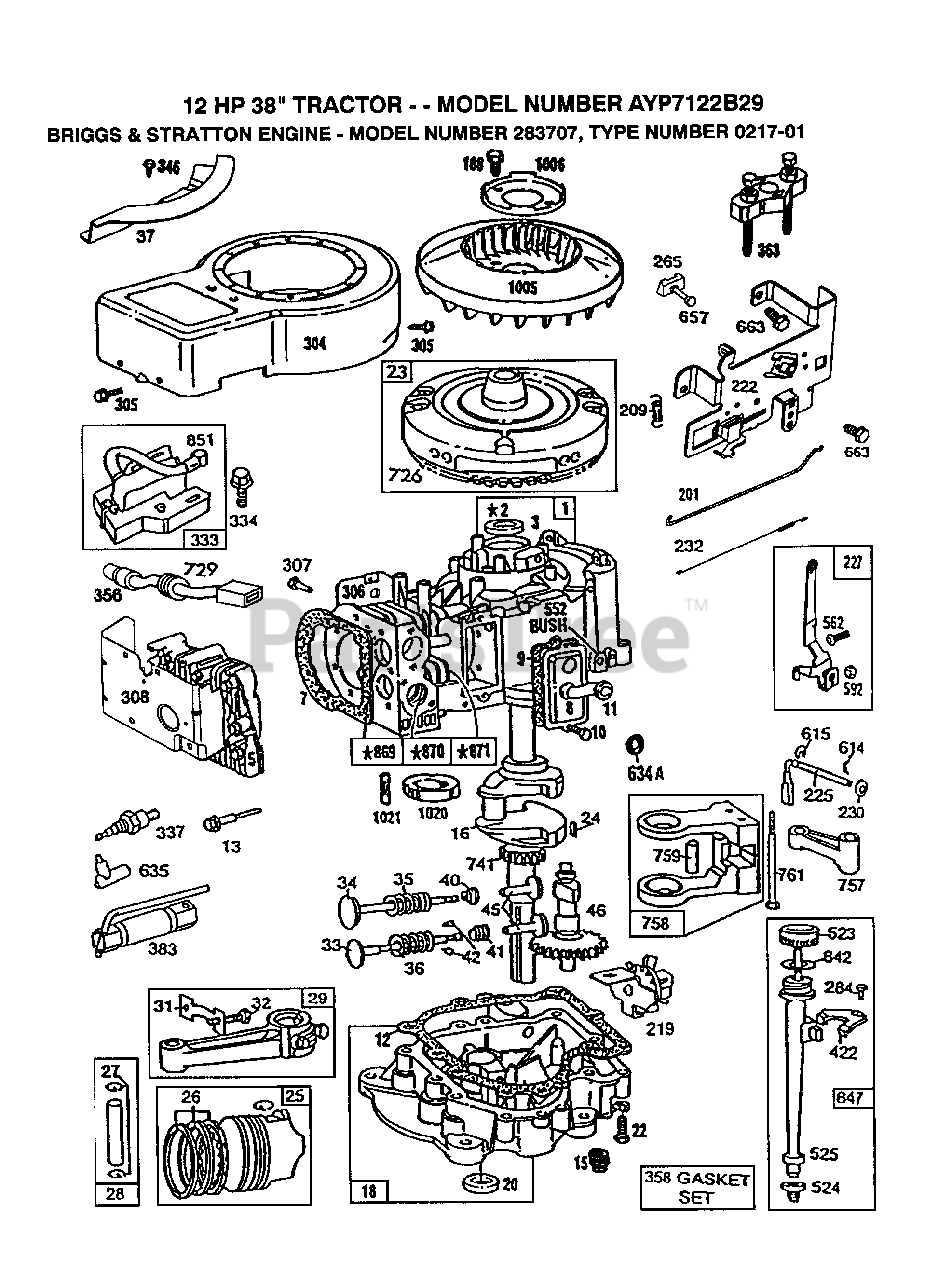

AYP 7122 B29 - Electrolux/AYP Lawn Tractor (1992) ENGINE/B&S Parts Diagram

Lawn Tractor

ENGINE/B&S Parts Diagram

  • Title

1

Briggs & Stratton 490450

CYLINDER ASSEMBLY
(Superseded to 496413)

$344.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 399265

P/N CONFLICT - CHECK WITH SUPPLIER
(Superseded to 797673)

$18.99

$

In Stock, only 3 left!

0

3

Briggs & Stratton 391086

SEAL, OIL
(Superseded to 391086S)

$6.49

$

In Stock, Qty 20+

0

5

Briggs & Stratton 494240

HEAD, CYLINDER

$110.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 271866

GASKET, CYLINDER HEAD
(Superseded to 271866S)

$9.49

$

In Stock, Qty 15

0

8

Briggs & Stratton 391406

BREATHER ASSEMBLY
(Superseded to 495735)

$63.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 27803

GASKET, VALVE COVER
(Superseded to 27803S)

$4.49

$

In Stock, Qty 20+

0

10

Briggs & Stratton 93394

SCREW, SEMS, BREATHER, MOUNTING
(Superseded to 691666)

$3.99

$

In Stock, Qty 5

0

11

Briggs & Stratton 280100

TUBE, BREATHER
(Superseded to 692253)

$9.99

$

In Stock, Qty 5

0

12

Briggs & Stratton 271916

GASKET, CRANKCASE COVER 1/64"
(Superseded to 692226)

$6.99

$

Usually ships in 2-12 days

0

12A

Briggs & Stratton 271997

GASKET, CRANKCASE COVER .005"
(Superseded to 692406)

$9.49

$

In Stock, only 1 left!

0

12B

Briggs & Stratton 271996

GASKET, CRANKCASE COVER .009"
(Superseded to 692405)

$6.49

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 93723

SCREW, CYLINDER HEAD 3"
(Superseded to 690904)

$11.99

$

In Stock, Qty 6

0

15

Briggs & Stratton 94239

PLUG, OIL DRAIN
(Superseded to 690946)

$5.99

$

In Stock, Qty 17

0

16

Briggs & Stratton 490466

CRANKSHAFT
(Superseded to 693653)

$246.99

$

Usually ships in 2-12 days

0

16A

Briggs & Stratton 94196

KEY, TIMING GEAR
(Superseded to 691639)

$4.49

$

In Stock, only 3 left!

0

18

Briggs & Stratton 494238

BASE, ENGINE

$

$

Not available

20

Briggs & Stratton 291675

SEAL, OIL
(Superseded to 291675S)

$6.99

$

In Stock, Qty 20+

0

22

Briggs & Stratton 94305

SCREW, SEMS, BASE MOUNTING
(Superseded to 692125)

$4.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 492326

FLYWHEEL & RING GEAR ASSY, MAGNETO
(Superseded to 693557)

$

$

Not available

24

Briggs & Stratton 222698

KEY, FLYWHEEL
(Superseded to 222698S)

$2.99

$

In Stock, Qty 20+

0

25

Briggs & Stratton 394661

PISTON ASSEMBLY, STANDARD
(Superseded to 499284)

$

$

Not available

25A

Briggs & Stratton 394662

PISTON ASSEMBLY .010" OVERSIZE

$

$

Not available

25B

Briggs & Stratton 394663

PISTON ASSEMBLY .020" OVERSIZE
(Superseded to 499292)

$

$

Not available

25C

Briggs & Stratton 394664

PISTON ASSEMBLY .030" OVERSIZE
(Superseded to 499296)

$86.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 391780

RING SET, PISTON, STANDARD
(Superseded to 499996)

$53.99

$

In Stock, only 2 left!

0

26A

Briggs & Stratton 392331

RING SET, PISTON, STANDARD SIZE

$37.99

$

Usually ships in 2-12 days

0

26B

Briggs & Stratton 391781

RING SET, PISTON .010" OVERSIZE

$

$

Not available

26C

Briggs & Stratton 391782

RING SET, PISTON .020" OVERSIZE
(Superseded to 499998)

$67.99

$

Usually ships in 2-12 days

0

26D

Briggs & Stratton 391783

RING SET, PISTON .030" OVERSIZE

$

$

Not available

27

Briggs & Stratton 260924

LOCK, PISTON PIN
(Superseded to 691792)

$4.49

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 299691

PIN ASSEMBLY, PISTON, STANDARD

$17.99

$

In Stock, only 1 left!

0

28A

Briggs & Stratton 391286

PIN ASSEMBLY, PISTON .005" OVER

$14.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 490348

ROD ASSEMBLY, CONNECTING

$50.99

$

In Stock, only 2 left!

0

29A

Briggs & Stratton 490469

ROD ASSEMBLY, CONNECTING .020" UNDERSIZE CRANKPIN
(Superseded to 495490)

$30.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 222299

LOCK, CONNECTING ROD SCREW

$

$

Not available

32

Briggs & Stratton 92909

SCREW, CONNECTING ROD
(Superseded to 691133)

$5.49

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 262246

VALVE, EXHAUST
(Superseded to 262246S)

$27.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 262247

VALVE, INTAKE
(Superseded to 262247S)

$30.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 65906

SPRING, INTAKE VALVE
(Superseded to 691605)

$6.99

$

In Stock, Qty 7

0

36

Briggs & Stratton 26828

SPRING, EXHAUST VALVE
(Superseded to 691597)

$10.99

$

In Stock, only 1 left!

0

37

Briggs & Stratton 223752

GUARD, FLYWHEEL
(Superseded to 690456)

$7.49

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 221596

RETAINER, INTAKE VALVE
(Superseded to 690656)

$

$

Not available

41

Briggs & Stratton 292260

RETAINER, EXHAUST VALVE
(Superseded to 691939)

$27.99

$

In Stock, only 1 left!

0

42

Briggs & Stratton 93630

RETAINER, EXHAUST VALVE ROTOCOIL(2)
(Superseded to 494553)

$7.99

$

In Stock, only 1 left!

0

45

Briggs & Stratton 262248

TAPPET-VALVE
(Superseded to 691811)

$6.99

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 212897

GEAR, CAM
(Superseded to 697668)

$139.99

$

Usually ships in 2-12 days

0

188

Briggs & Stratton 93535

SCREW, HEX HEAD
(Superseded to 691058)

$5.99

$

In Stock, Qty 12

0

201

Briggs & Stratton 262767

LINK, GOVERNOR
(Superseded to 691841)

$9.49

$

In Stock, only 4 left!

0

209

Briggs & Stratton 260871

SPRING, GOVERNOR
(Superseded to 792602)

$3.49

$

In Stock, Qty 5

0

219

Briggs & Stratton 490815

GOVERNOR GEAR
(Superseded to 691968)

$37.99

$

In Stock, Qty 14

0

222

Briggs & Stratton 494887

PLATE, GOVERNOR CONTROL
(Superseded to 597209)

$38.99

$

In Stock, only 1 left!

0

225

Briggs & Stratton 231058

CRANK, GOVERNOR
(Superseded to 692012)

$13.99

$

In Stock, only 4 left!

0

227

Briggs & Stratton 493935

LEVER ASSY, GOVERNOR
(Superseded to 691374)

$26.99

$

In Stock, Qty 6

0

230

Briggs & Stratton 222450

WASHER, GOVERNOR LEVER
(Superseded to 691691)

$3.99

$

In Stock, Qty 5

0

232

Briggs & Stratton 262785

SPRING, GOVERNOR LINK
(Superseded to 691842)

$11.99

$

In Stock, Qty 6

0

265

Briggs & Stratton 221535

CLAMP
(Superseded to 691024)

$3.99

$

Usually ships in 2-12 days

0

284

Briggs & Stratton 94419

SCREW, CLAMP MOUNTING
(Superseded to 691693)

$3.99

$

In Stock, only 2 left!

0

284A

Briggs & Stratton 94326

SCREW, AIR CLEANER
(Superseded to 691677)

$3.99

$

In Stock, Qty 5

0

304

Briggs & Stratton 494269

HOUSING, BLOWER
(Superseded to 494268)

$186.99

$

Usually ships in 2-12 days

0

305

Briggs & Stratton 94608

SCREW, SEMS
(Superseded to 692198)

$5.99

$

In Stock, only 1 left!

0

306

Briggs & Stratton 224545

SHIELD, CYLINDER
(Superseded to 698477)

$19.99

$

Usually ships in 2-12 days

0

307

Briggs & Stratton 93949

SCREW, SEMS
(Superseded to 691003)

$3.49

$

In Stock, only 2 left!

0

308

Briggs & Stratton 491490

COVER, CYLINDER HEAD
(Superseded to 698476)

$49.99

$

In Stock, only 1 left!

0

333

Briggs & Stratton 492341

ARMATURE, MAGNETO
(Superseded to 591459)

$53.99

$

In Stock, Qty 20+

0

334

Briggs & Stratton 93381

SCREW, SEM, ARMATURE MOUNTING
(Superseded to 691061)

$3.49

$

In Stock, Qty 17

0

337

Briggs & Stratton 802592

PLUG, SPARK
(Superseded to 796112S)

$4.49

$

In Stock, Qty 20+

0

346

Briggs & Stratton 93705

SUB= 69485
(Superseded to 690661)

$3.49

$

In Stock, Qty 20+

0

356

Briggs & Stratton 494328

WIRE, GROUND
(Superseded to 690799)

$11.99

$

Usually ships in 2-12 days

0

358

Briggs & Stratton 494241

GASKET SET

$39.99

$

In Stock, only 1 left!

0

363

Briggs & Stratton 19203

PULLER, FLYWHEEL

$23.99

$

In Stock, only 1 left!

0

383

Briggs & Stratton 89838

WRENCH SPARK PLUG
(Superseded to 89838S)

$6.49

$

In Stock, Qty 5

0

422

Briggs & Stratton 223721

CLAMP, OIL FILLER TUBE
(Superseded to 224390)

$

$

Not available

Briggs & Stratton 490421

STARTER DRIVE GROUP
(Superseded to 696540)

$29.99

$

In Stock, only 1 left!

0

523

Briggs & Stratton 490327

CAP AND DIPSTICK, OIL FILLER
(Superseded to 692014)

$25.99

$

In Stock, only 1 left!

0

524

Briggs & Stratton 68838

SEAL, FILLER TUBE
(Superseded to 281370S)

$8.49

$

In Stock, Qty 20+

0

525

Briggs & Stratton 280741

TUBE, OIL FILLER
(Superseded to 495768)

$29.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 390837

ARRMATURE ASSEMBLY

$159.99

$

In Stock, only 1 left!

0

552

Briggs & Stratton 231597

BUSHING, GOVERNOR CRANK, 1/4" I.D.
(Superseded to 491986)

$

$

Not available

562

Briggs & Stratton 92613

BOLT, GOVERNOR LEVER

$

$

Not available

592

Briggs & Stratton 231082

NUT, HEX
(Superseded to 691251)

$3.49

$

In Stock, Qty 10

0

614

Briggs & Stratton 93306

COTTER, HAIR PIN
(Superseded to 691620)

$4.49

$

In Stock, only 2 left!

0

615

Briggs & Stratton 93307

RETAINER, E-RING

$5.99

$

In Stock, only 4 left!

0

634A

Briggs & Stratton 491323

SEAL, GOVERNOR
(Superseded to 692407)

$7.99

$

In Stock, Qty 11

0

635

Briggs & Stratton 66538

ELBOW, SPARK PLUG
(Superseded to 66538S)

$3.99

$

In Stock, Qty 11

0

657

Briggs & Stratton 93496

SCREW, SEMS
(Superseded to 690804)

$

$

Not available

663

Briggs & Stratton 94620

SCREW, HEX HEAD
(Superseded to 691693)

$3.99

$

In Stock, only 2 left!

0

726

Briggs & Stratton 392134

GEAR, RING
(Superseded to 696537)

$50.99

$

Usually ships in 2-12 days

0

729

Briggs & Stratton 281159

CLIP, LEAD WIRE
(Superseded to 690596)

$2.99

$

Usually ships in 2-12 days

0

741

Briggs & Stratton 262135

GEAR, TIMING
(Superseded to 691284)

$10.99

$

Usually ships in 2-12 days

0

757

Briggs & Stratton 212359

LINK, COUNTERWEIGHT
(Superseded to 691714)

$26.99

$

Usually ships in 2-12 days

0

758

Briggs & Stratton 399891

COUNTERWEIGHT ASSY
(Superseded to 692423)

$222.99

$

Usually ships in 2-12 days

0

759

Briggs & Stratton 298909

PIN ASSY, PISTON, STD

$8.99

$

In Stock, only 4 left!

0

761

Briggs & Stratton 93875

SCREW, COUTENWEIGHT
(Superseded to 691096)

$5.49

$

Usually ships in 2-12 days

0

Briggs & Stratton 395537

END CAP ASS'Y. COMMUTATOR

$54.99

$

Usually ships in 2-12 days

0

842

Briggs & Stratton 270920

SEAL, OIL FILLER CAP
(Superseded to 691870)

$4.49

$

In Stock, only 1 left!

0

847

Briggs & Stratton 490474

FILL GROUP, OIL

$

$

Not available

851

Briggs & Stratton 221798

TERMINAL, IGNITION CABLE
(Superseded to 493880S)

$3.49

$

In Stock, Qty 20+

0

869

Briggs & Stratton 261463

SEAT, INTAKE VALVE, STANDARD
(Superseded to 691802)

$17.99

$

Usually ships in 2-12 days

0

870

Briggs & Stratton 213316

SEAT, EXHAUST VALVE, STANDARD
(Superseded to 691844)

$18.99

$

In Stock, only 1 left!

0

1005

Briggs & Stratton 280687

FAN, FLYWHEEL
(Superseded to 691905)

$45.99

$

Usually ships in 2-12 days

0

1006

Briggs & Stratton 224413

RETAINER, FAN
(Superseded to 690452)

$10.99

$

Usually ships in 2-12 days

0

1020

Briggs & Stratton 262243

ECCENTRIC

$36.99

$

Usually ships in 2-12 days

0

1021

Briggs & Stratton 94160

PIN, ECCENTRIC
(Superseded to 691679)

$4.49

$

Usually ships in 2-12 days

0
