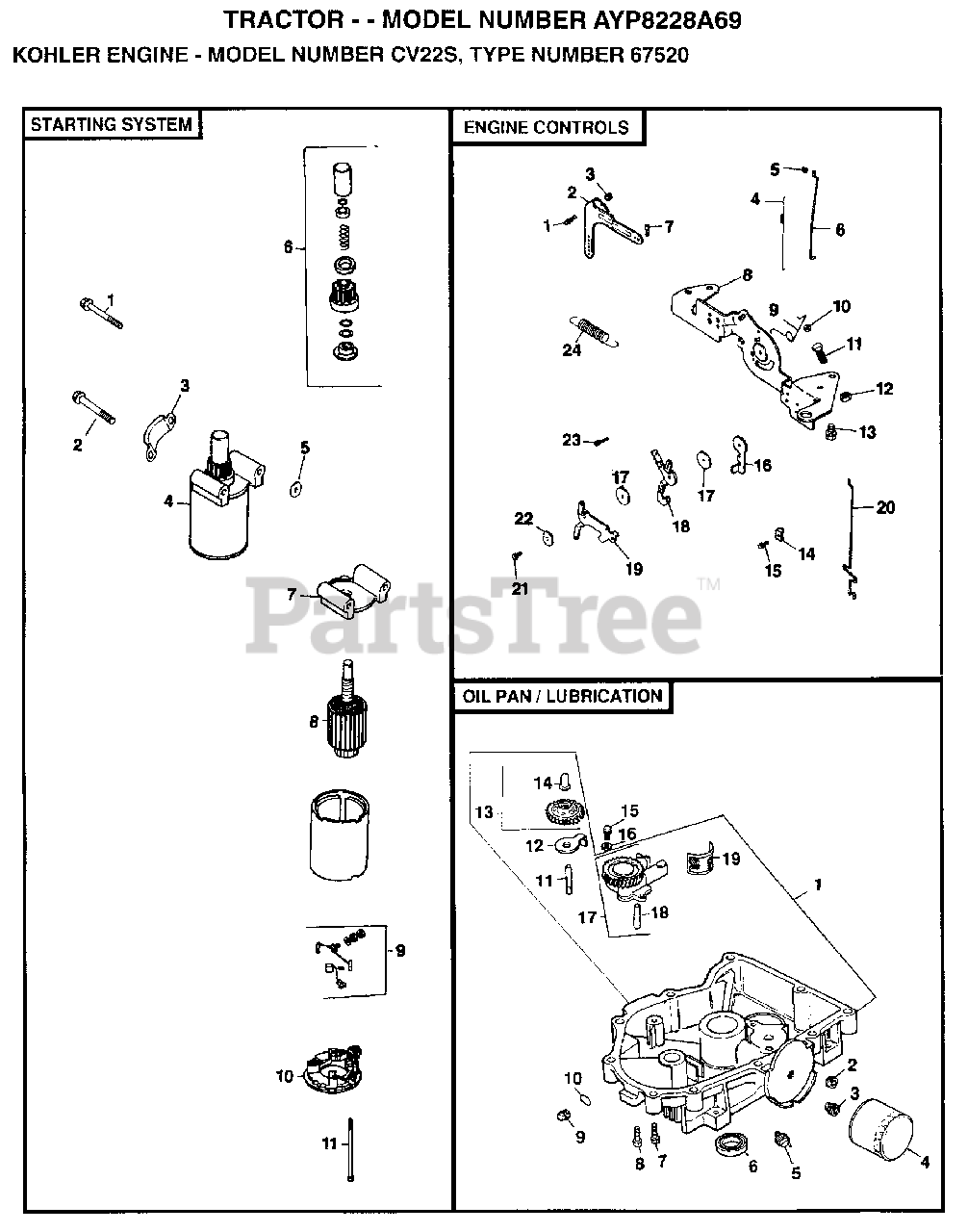

AYP 8228 A69 - Electrolux/AYP Lawn Tractor (1996) KOHLER ENGINE Parts Diagram

Lawn Tractor

KOHLER ENGINE Parts Diagram

  • Title

1

Kohler M-0839070

SCREW

$

$

Not available

2

Kohler M-0839080

SCREW

$

$

Not available

3

Electrolux/AYP 24-096-05

COVER

$

$

Not available

4

Electrolux/AYP 25-098-03

STARTER

$

$

Not available

5

Electrolux/AYP 12-468-01

WASHER

$

$

Not available

6

Electrolux/AYP 12-755-54

KIT, DRIVE END

$

$

Not available

7

Electrolux/AYP 12-227-06

CAP

$

$

Not available

8

Electrolux/AYP 45-170-03

ARMATURE

$

$

Not available

9

Electrolux/AYP 82-755-28

KIT BRUSH

$

$

Not available

10

Electrolux/AYP 12-227-11

CAP

$

$

Not available

11

Electrolux/AYP 12-086-25

BOLT

$

$

Not available

1

Electrolux/AYP 24-199-07

OIL PAN ASSEMBLY

$

$

Not available

2

Kohler X-75-32

PLUG
(Superseded to 25 139 62-S)

$3.49

$

In Stock, only 2 left!

0

3

Electrolux/AYP 24-136-01

NIPPLE, OIL FILTER

$

$

Not available

4

Electrolux/AYP 12-050-01

FILTER, OIL

$

$

Not available

5

Electrolux/AYP 52-099-06

OIL PRESSURE SWITCH

$

$

Not available

6

Electrolux/AYP 52-032-08

SEAL, OIL

$

$

Not available

7

Electrolux/AYP 24-086-17

SCREW

$

$

Not available

8

Electrolux/AYP 24-086-16

SCREW

$

$

Not available

9

Kohler X-75-10

PLUG
(Superseded to 25 139 57-S)

$2.49

$

In Stock, Qty 13

0

10

Electrolux/AYP 24-153-08

O-RING

$

$

Not available

11

Electrolux/AYP 12-144-02

SHAFT

$

$

Not available

12

Electrolux/AYP 52-448-02

TAB

$

$

Not available

13

Electrolux/AYP 24-043-12

KIT, GOVERNOR GEAR WITH PIN

$

$

Not available

14

Electrolux/AYP 12-380-01

PIN

$

$

Not available

15

Kohler M-0645025

SCREW
(Superseded to M-645025)

$2.49

$

In Stock, Qty 12

0

16

Kohler M-0631005

WASHER
(Superseded to M-631005)

$2.49

$

In Stock, Qty 8

0

17

Electrolux/AYP 24-393-08

OIL PUMP ASSEMBLY

$

$

Not available

18

Electrolux/AYP 24-123-05

TUBE

$

$

Not available

19

Electrolux/AYP 25-162-07

SCREEN

$

$

Not available

1

Kohler SM-0642025

SCREW, GOVERNOR ARM
(Superseded to SM-642025)

$2.49

$

In Stock, only 1 left!

0

2

Electrolux/AYP 24-090-14

LEVER

$

$

Not available

3

Kohler M-0641060

NUT
(Superseded to M-641060)

$4.49

$

In Stock, Qty 10

0

4

Electrolux/AYP 24-089-01

SPRING

$

$

Not available

5

Electrolux/AYP 25-158-08

BUSHING

$

$

Not available

6

Electrolux/AYP 24-079-04

LINKAGE

$

$

Not available

7

Electrolux/AYP 25-158-11

BUSHING

$

$

Not available

8

Electrolux/AYP 24-126-13

BRACKET

$

$

Not available

9

Electrolux/AYP 24-089-03

SPRING

$

$

Not available

10

Kohler M-0547050

LOCKNUT
(Superseded to M-547050-S)

$2.49

$

In Stock, Qty 6

0

11

Kohler M-0545016

SCREW
(Superseded to M-545016)

$2.49

$

In Stock, Qty 15

0

12

Kohler M-0446030

NUT
(Superseded to M-446030-S)

$2.49

$

In Stock, Qty 9

0

13

Kohler M-0645016

SCREW
(Superseded to M-645016)

$3.99

$

In Stock, Qty 20+

0

14

Electrolux/AYP 12-237-01

CLAMP, CABLE

$

$

Not available

15

Kohler M-0545016

SCREW
(Superseded to M-545016)

$2.49

$

In Stock, Qty 15

0

16

Electrolux/AYP 24-090-07

LEVER

$

$

Not available

17

Electrolux/AYP 24-468-01

WASHER

$

$

Not available

18

Electrolux/AYP 24-090-13

LEVER

$

$

Not available

19

Electrolux/AYP 24-090-05

LEVER

$

$

Not available

20

Electrolux/AYP 24-079-05

LINKAGE

$

$

Not available

21

Kohler SM-0545020

SCREW
(Superseded to 25 086 473-S)

$2.49

$

In Stock, Qty 7

0

22

Electrolux/AYP 41-468-03

WASHER

$

$

Not available

23

Kohler M-0403025

SCREW
(Superseded to M-403025-S)

$4.99

$

Usually ships in 2-5 days

0

24

Electrolux/AYP 24-089-18

SPRING

$

$

Not available
