B 450 R - Shindaiwa Brush Cutter (SN: T24225001001 - T24225999999) THROTTLE CONTROL S/N T24225003201 - T24225999999 Parts Diagram

Brush Cutter

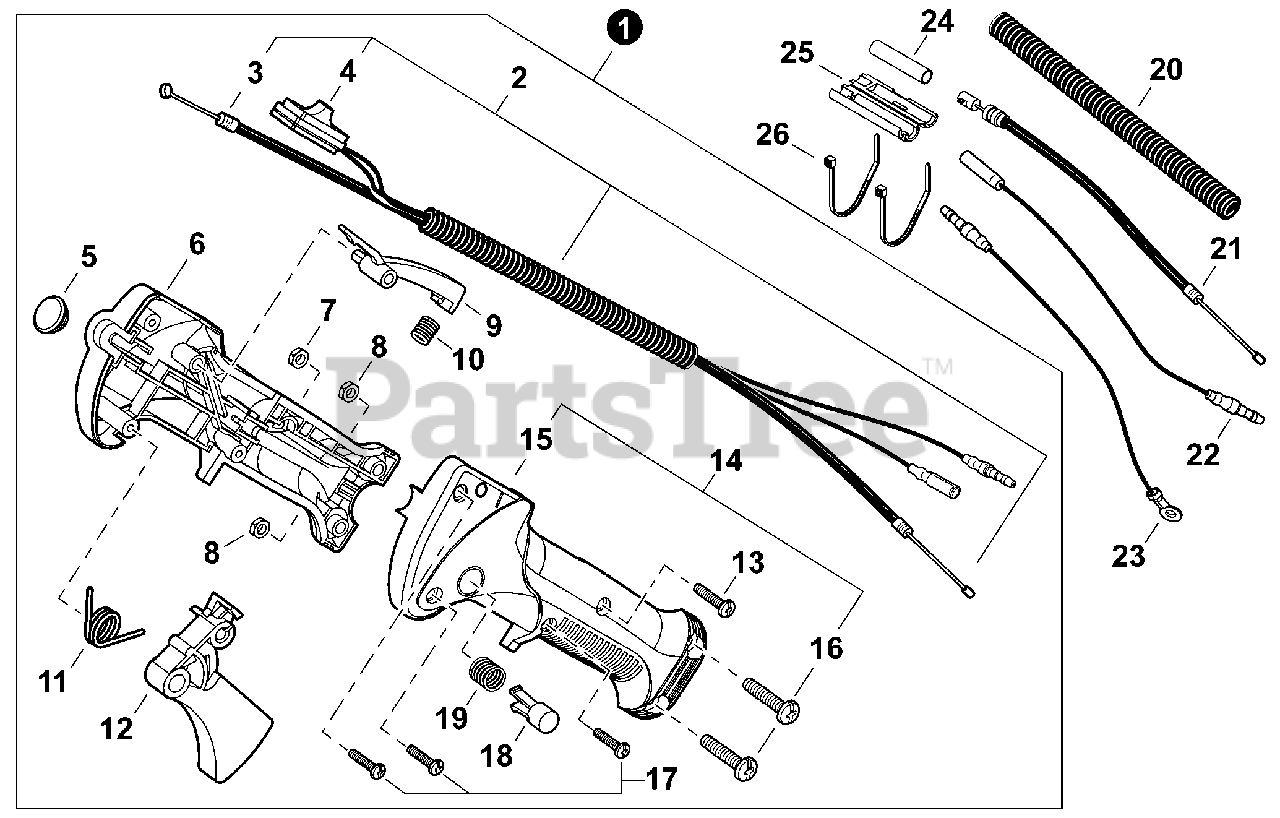

THROTTLE CONTROL S/N T24225003201 - T24225999999 Parts Diagram

  • Title

1

Echo C044000882

THROTTLE CONTROL ASSY

Note: Includes items 2-19

$72.99

$

In Stock, only 2 left!

0

2

Echo V043000540

CABLE ASSY, CONTROL

Note: Includes items 3-4 64007-64310

$49.99

$

Usually ships in 2-4 days

0

3

Echo V430002910

CABLE, THROTTLE

Note: 64007-64320

$25.99

$

Usually ships in 2-4 days

0

4

Echo A045000350

SWITCH, ON-OFF

Note: 64007-64330

$25.99

$

Usually ships in 2-4 days

0

5

Echo V162000410

PLUG, RUBBER

Note: 22150-33630

$2.49

$

In Stock, only 4 left!

0

6

Echo C412000430

CONTROL HANDLE - RIGHT

Note: 72550-14512

$19.99

$

Usually ships in 2-4 days

0

7

Echo V262000100

NUT M4

Note: 70871-65340

$0.99

$

In Stock, Qty 20+

0

8

Echo 9201705000

NUT M5

Note: 01501-05030

$0.99

$

In Stock, Qty 17

0

9

Echo C460000241

LOCKOUT, THROTTLE

$1.99

$

In Stock, only 1 left!

0

10

Echo V450001020

SPRING, COMPRESSION

Note: 70871-65150

$0.99

$

In Stock, Qty 9

0

11

Echo V452000690

SPRING, TORSION

Note: 70871-65160

$0.99

$

In Stock, Qty 9

0

12

Echo C450000581

TRIGGER, THROTTLE

$3.99

$

Usually ships in 2-4 days

0

13

Echo V252000090

SCREW M4x23

Note: 70871-65331

$0.99

$

In Stock, Qty 10

0

14

Echo P021044960

CONTROL HANDLE SET

Note: Includes items 15-16

$20.99

$

In Stock, only 1 left!

0

15

Echo C412000441

CONTROL HANDLE - LEFT

$19.99

$

Usually ships in 2-4 days

0

16

Echo 9133505022

SCREW M5x22

$0.99

$

In Stock, Qty 9

0

17

Echo V252000360

SCREW, TAPPING 4x16

Note: 70871-65311

$0.99

$

Usually ships in 2-4 days

0

18

Echo C461000080

BUTTON, THROTTLE LOCK

Note: 70871-65170

$1.99

$

Usually ships in 2-4 days

0

19

Echo V450001010

SPRING, COMPRESSION

Note: 70871-65180

$0.99

$

In Stock, Qty 6

0

20

Echo V475004800

TUBE, FLEXIBLE

Note: 70210-83140

$1.99

$

Usually ships in 2-4 days

0

21

Echo V430002900

CABLE, THROTTLE

Note: 70210-83110

$8.49

$

Usually ships in 2-4 days

0

22

Echo V485001650

LEAD - IGNITION

Note: 70210-83130

$2.49

$

Usually ships in 2-4 days

0

23

Echo V485001660

LEAD - GROUND

Note: 70210-83120

$2.49

$

Usually ships in 2-4 days

0

24

Echo V475004810

SLEEVE

Note: 20037-82130

$0.99

$

Usually ships in 2-4 days

0

25

Echo C482000070

CAP, DUST

Note: 72550-82120

$6.49

$

Usually ships in 2-4 days

0

26

Echo V495001530

TIE, CABLE

Note: 15210-12303

$0.99

$

Usually ships in 2-4 days

0
