B 460 - Shindaiwa Brush Cutter (SN: U08026001001 - U08026999999) INTAKE Parts Diagram

Brush Cutter

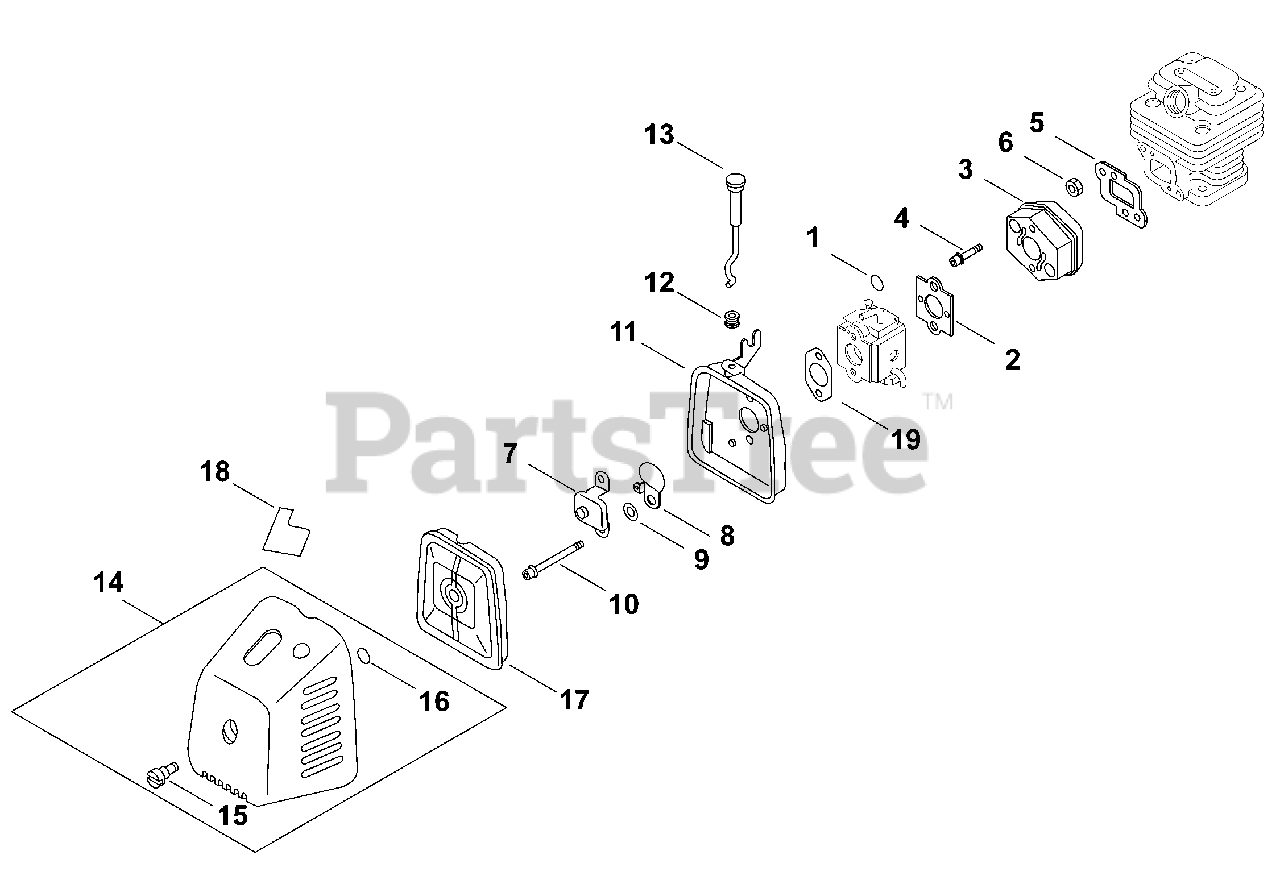

INTAKE Parts Diagram

  • Title

1

Echo V490000440

CLIP

$2.49

$

Usually ships in 2-4 days

0

2

Echo 13001606231

GASKET, INTAKE
(Superseded to 13001606232)

$0.99

$

In Stock, Qty 20+

0

3

Echo 13001743130

INSULATOR, INTAKE

$5.49

$

Usually ships in 2-4 days

0

4

Echo 90016205025

BOLT 5×25

$0.99

$

In Stock, Qty 20+

0

5

Echo 13001642231

GASKET, INTAKE

$1.49

$

In Stock, Qty 5

0

6

Echo 90050000005

NUT M5

$0.99

$

In Stock, Qty 20+

0

7

Echo 12900643130

PLATE

$4.49

$

Usually ships in 2-4 days

0

8

Echo 17851543130

SHUTTER, CHOKE

$2.49

$

Usually ships in 2-4 days

0

9

Echo 17851600830

WASHER 5.2×8×0.8T

$0.99

$

In Stock, Qty 20+

0

10

Echo 90024205057

SCREW 5×57

$0.99

$

In Stock, Qty 8

0

11

Echo 13031443130

CASE, AIR FILTER

$5.49

$

Usually ships in 2-4 days

0

12

Echo 17881005230

GROMMET, CHOKE

$1.99

$

In Stock, Qty 14

0

13

Echo A241000380

KNOB, CHOKE

$9.99

$

Usually ships in 2-4 days

0

14

Echo P100005190

COVER ASSY, AIR FILTER
(Superseded to 13030243132)

Note: Includes Items 15-16

$15.99

$

Usually ships in 2-4 days

0

15

Echo 13041540630

SCREW

$2.99

$

In Stock, only 1 left!

0

16

Echo 90072000004

O-RING

$1.99

$

In Stock, Qty 14

0

17

Echo 13031043130

FILTER, AIR

$9.49

$

Usually ships in 2-4 days

0

18

Echo 89012147530

LABEL, CHOKE

$3.99

$

In Stock, only 3 left!

0

19

Echo V103001460

GASKET, INTAKE

$1.49

$

Usually ships in 2-4 days

0
