BF8 AX SA (BZBC) - Honda Outboard Engine, Made in Japan (SN: BZBC-1400001 - BZBC-1499999) PISTON + CRANKSHAFT Parts Diagram

Outboard Engine, Made in Japan

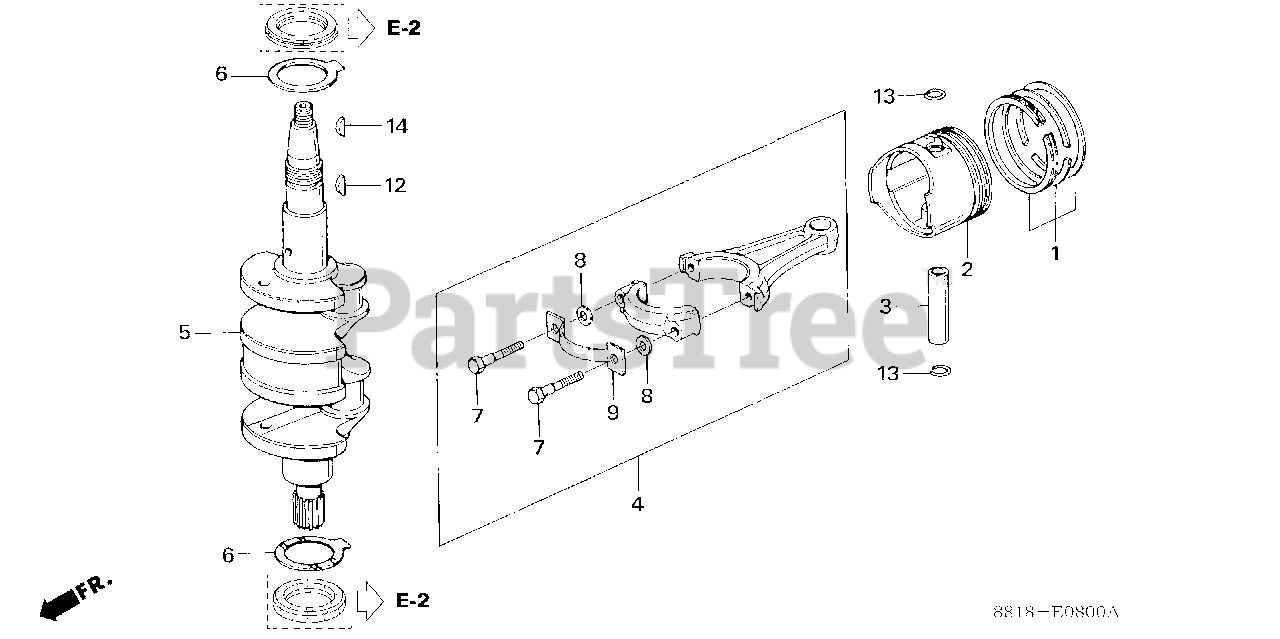

PISTON + CRANKSHAFT Parts Diagram

  • Title
1

Honda 13010-881-000

RING SET, PISTON (2SET) (STD)

$

$

Not available

$

$

Not available

3

Honda 13111-881-000

PIN, PISTON

$12.99

$

Usually ships in 3-6 days

0

4

Honda 13200-881-000

ROD ASSY., CONNECTING

$123.99

$

Usually ships in 3-6 days

0

5

Honda 13311-881-000

CRANKSHAFT

$

$

Not available

6

Honda 13316-881-000

BEARING, CRANKSHAFT THRUST

$

$

Not available

7

Honda 90011-881-000

BOLT, CONNECTING ROD

$7.99

$

Usually ships in 3-6 days

0

8

Honda 90402-921-000

WASHER (6MM)

$

$

Not available

9

Honda 90452-881-000

WASHER, LOCK

$

$

Not available

12

Honda 90741-ZV4-000

KEY, SPECIAL (16X15)

$3.99

$

Usually ships in 3-6 days

0

13

Honda 94601-14000

CLIP, PISTON PIN (14MM)

$0.99

$

In Stock, only 2 left!

0

14

Honda 90741-ZV4-000

KEY, SPECIAL (16X15)

$3.99

$

Usually ships in 3-6 days

0
