BFP9.9 D3 LHSA (BABJ) - Honda Outboard Engine, Made in Japan (SN: BABJ-1200001 - BABJ-1299999) FUEL TANK Parts Diagram

Outboard Engine, Made in Japan

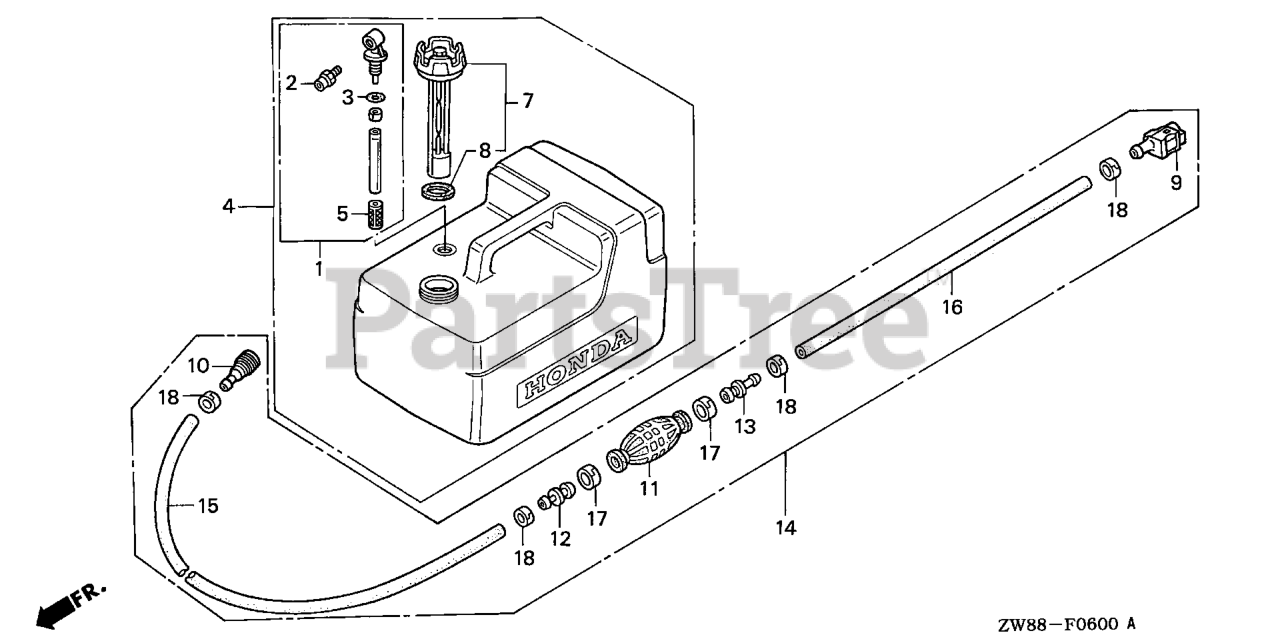

FUEL TANK Parts Diagram

  • Title

1

Honda 16900-ZV4-A22

SEE PART DETAILS - PRI; JOINT ASSY., FUEL

$37.99

$

Usually ships in 3-6 days

0

2

Honda 16977-ZV5-A00

FITTING, QUICK DISCONNECT Use from Frame SN 1205705.

$19.99

$

Usually ships in 3-6 days

0

3

Honda 16979-ZV5-900

SEE PART DETAILS - SUP; O-RING Use up to Frame SN 1300961.

$0.99

$

Usually ships in 3-6 days

0

4

Honda 17500-ZV4-A21

SEE PART DETAILS - SUP; TANK ASSY., FUEL Use from Frame SN 1000337.
(Superseded to 17500-ZZ5-003)

$231.99

$

Usually ships in 3-6 days

0

4

Honda 17500-ZV4-A22

SEE PART DETAILS - SUP; TANK ASSY., FUEL Use from Frame SN 1000337.
(Superseded to 17500-ZZ5-003)

$231.99

$

Usually ships in 3-6 days

0

4

Honda 17500-ZZ5-003

SEE PART DETAILS - PRI; TANK ASSY., FUEL

$231.99

$

Usually ships in 3-6 days

0

5

Honda 17583-ZV5-901

SEE PART DETAILS - PRI; FILTER, FUEL

$2.99

$

In Stock, only 1 left!

0

7

Honda 17620-ZV4-A21

SEE PART DETAILS - SUP; CAP, FUEL FILLER
(Superseded to 17620-ZV4-A23)

$

$

Not available

8

Honda 17624-ZV4-A20

GASKET, FUEL CAP
(Superseded to 17624-ZV5-902)

$8.99

$

Usually ships in 3-6 days

0

9

Honda 17650-ZW9-023

SEE PART DETAILS - PRI; CONNECTOR ASSY., FUEL (A)

$45.99

$

In Stock, only 1 left!

0

10

Honda 17660-ZW9-003

SEE PART DETAILS - PRI; CONNECTOR, FUEL (CONNECTOR TYPE)

$42.99

$

Usually ships in 3-6 days

0

11

Honda 17661-921-010

SEE PART DETAILS - PRI; BULB, PRIMER

$17.99

$

Usually ships in 3-6 days

0

12

Honda 17665-ZV5-000

VALVE, IN.

$15.99

$

Usually ships in 3-6 days

0

13

Honda 17680-ZV4-000

VALVE, OUTLET

$15.99

$

Usually ships in 3-6 days

0

14

Honda 17700-ZW9-030

SEE PART DETAILS - PRI; TUBE ASSY., FUEL

$84.99

$

In Stock, only 1 left!

0

15

Honda 17701-ZV5-000

TUBE, FUEL LONG (7.3X2000) (CONNECTOR TYPE)

$62.99

$

Usually ships in 3-6 days

0

16

Honda 17702-ZV4-000

TUBE, FUEL SHORT (6.3X500) (CONNECTOR TYPE)

$12.99

$

Usually ships in 3-6 days

0

17

Honda 17703-921-010

SEE PART DETAILS - PRI; BAND, TUBE CLIP (20MM)

$4.99

$

Usually ships in 3-6 days

0

18

Honda 17704-ZV4-010

SEE PART DETAILS - PRI; BAND, TUBE CLIP (12.5MM)

$2.99

$

Usually ships in 3-6 days

0
